• Model NO.：GJYXFCH
• Core：Multicore
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC, ETL
• Brand：OEM
• Sheath Material：LSZH
• Model：GJYXFCH
• Fibers：G.652D or G.657A2
• Fiber Conts：1-12 Fibers
• Strength Member：FRP or Steel
• Transport Package：1km or 2km Wooden Reel
• Specification：CE, RoHS, ISO9001, UL, ETL
• Trademark：OEM
• Origin：China
• HS Code：85447000
• Production Capacity：10000km Per Month

Basic Info.

Model NO. GJYXFCH Core Multicore Certification RoHS, UL, CE, ISO9001, VDE, CCC, ETL Brand OEM Sheath Material LSZH Model GJYXFCH Fibers G.652D or G.657A2 Fiber Conts 1-12 Fibers Strength Member FRP or Steel Transport Package 1km or 2km Wooden Reel Specification CE, RoHS, ISO9001, UL, ETL Trademark OEM Origin China HS Code 85447000 Production Capacity 10000km Per Month

Product Description

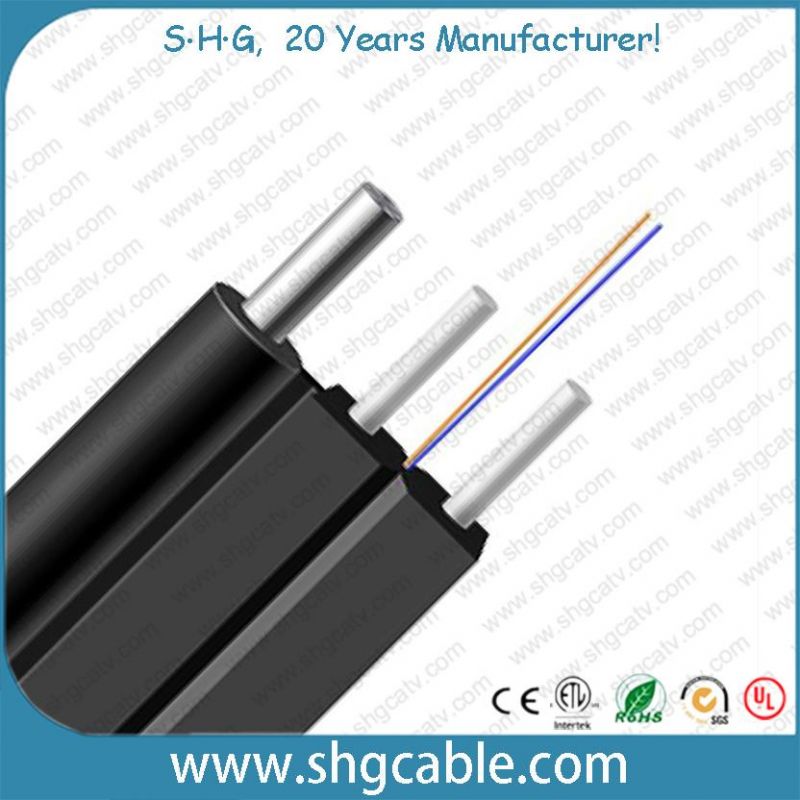

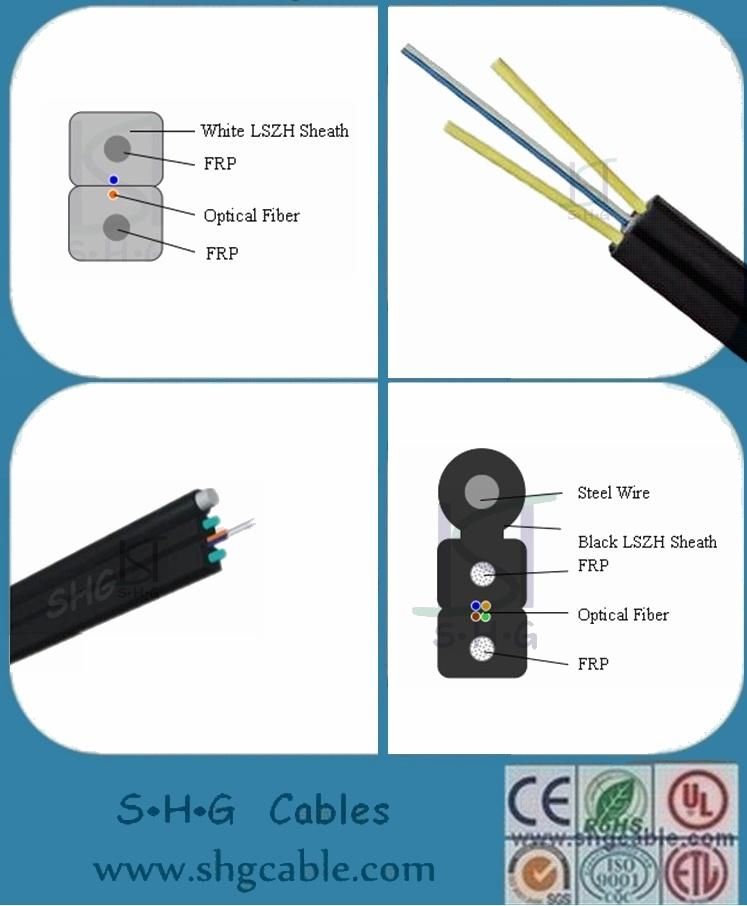

SHG butterfly self-supporting drop FTTH Fiber optic Cable GJYXFCH, use selected G.652D or G.657A1,G.657A2 fibers, the optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath, UV & Flame retardant.

Outdoor drop cable FTTH fiber optical cable Characteristics
 1) Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
 2) Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
 3) Simple structure, light weight and high practicability;
 4) Novel flute design, easily strip and splice, simplify the installation and maintenance;
 5) Low smoke, zero halogen and flame retardant sheath.

Certificates
 ISO9001:2008,  CE,  RoHS,  REACH

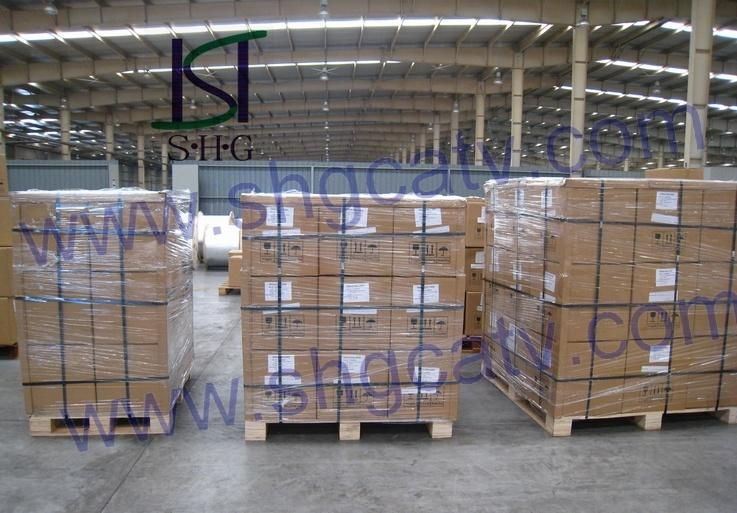

Package
1 or 2km/wooden reel, then in pallet.


Special packing acceptable , upon customers requirements!

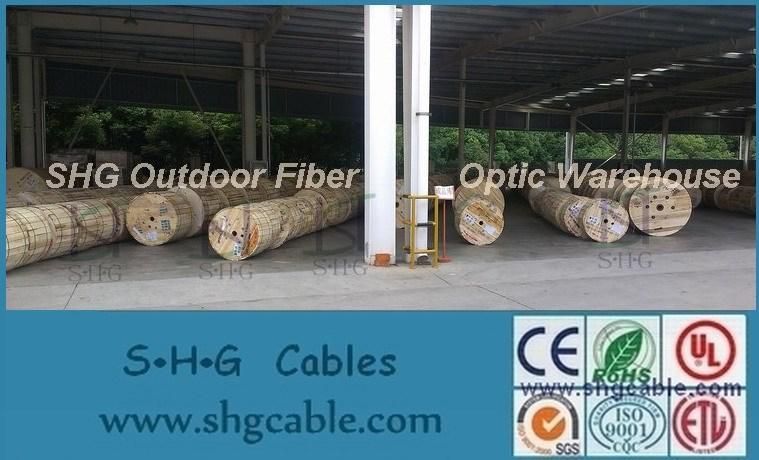

Warehouse view


Drop cable FTTH fiber optical cable Technical Parameters

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0± 0.1)× (5.0± 0.1)	21	300/600	1000/2200	10/25
2	(2.0± 0.1)× (5.0± 0.1)	21	300/600	1000/2200	10/25
1	(2.0± 0.1)× (5.4± 0.1)	25	300/600	1000/2200	10/25
4	(2.0± 0.1)× (5.6± 0.1)	25	300/600	1000/2200	10/25

Certificates
