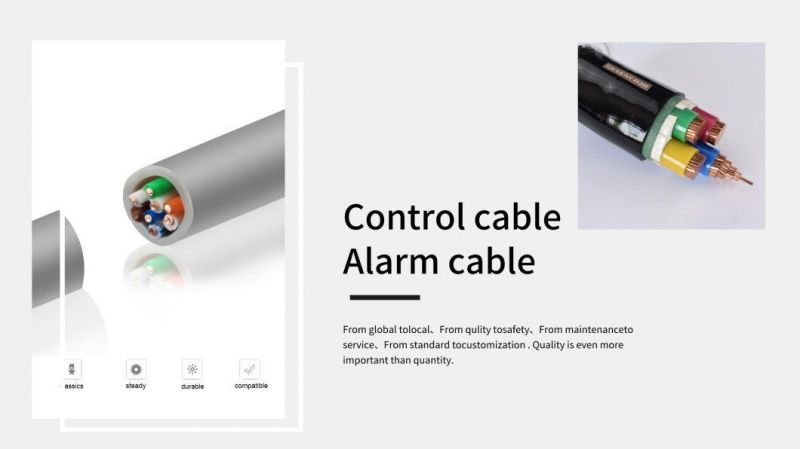

20 AWG Stranded Multi-Conductor Alarm Control Cable

Hangzhou Hongfeng Cable Co., Ltd.
  • Application：Coaxial Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Coaxial
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：control cable
  • Wire Core Material：Steel
  • Certification：ISO, RoHS, UL
  • Model：Control Cable
  • Brand：Hf
  • Impedance：75 Ohm
  • Cable Standard：Commscope
  • Transport Package：Drum
  • Specification：20AWG, 22 AWG, 24 AWG
  • Trademark：HF or OEM
  • Origin：Hangzhou, China
  • HS Code：85422000
  • Production Capacity：300, 000km,Year

Description

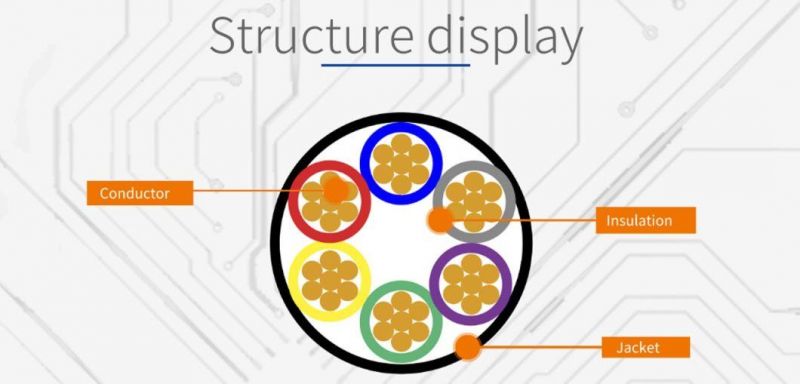

20 AWG Stranded Multi-Conductor Alarm Control Cable         PHYSICAL CHARACTERISTICS (OVERALL)
Conductor
AWG
  • # Conductors: 1
  • AWG: 20
  • Stranding: 7 x 0. 28mm
  • Conductor Material: TC - Tinned Copper
  • Total Number of Conductors: 1
    INSULATION
  • Insulation Material: PVC - Polyvinyl Chloride
  • Wall Thickness (in.): 0.015
  • Overall Nominal Diameter: 0.069 in.
20 AWG Stranded Multi-Conductor Alarm Control Cable
  •    GENERAL DESCRIPTION
    Tinned copper conductor, PVC insulation. Rated 105ºC, 300V. Rated 600V peak for electronic circuits, and internal wiring of electronic and electrical equipment.
20 AWG Stranded Multi-Conductor Alarm Control Cable20 AWG Stranded Multi-Conductor Alarm Control Cable20 AWG Stranded Multi-Conductor Alarm Control Cable20 AWG Stranded Multi-Conductor Alarm Control Cable20 AWG Stranded Multi-Conductor Alarm Control Cable

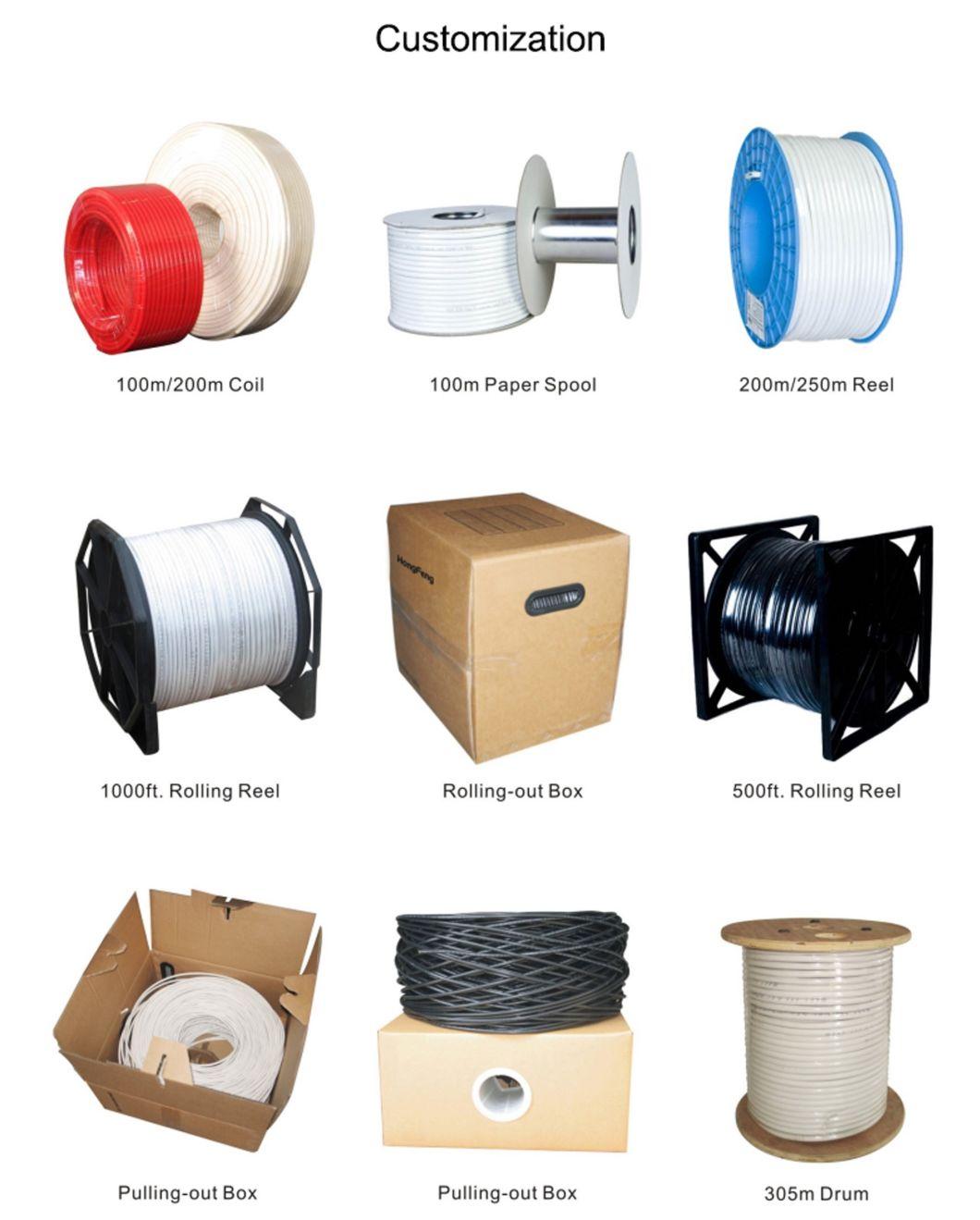

1) Coil With Carton
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not
100M/Paper Reel
100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic.
305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet
500ft Reel In Box.
1000ft/Reel In Box.
Color Box  and OEM Package available.
4) Other packing available according to client's request.
20 AWG Stranded Multi-Conductor Alarm Control Cable20 AWG Stranded Multi-Conductor Alarm Control CableOur Main products:
1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.
2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.
3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.
4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.
5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.
6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.
7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.
8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.
9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.

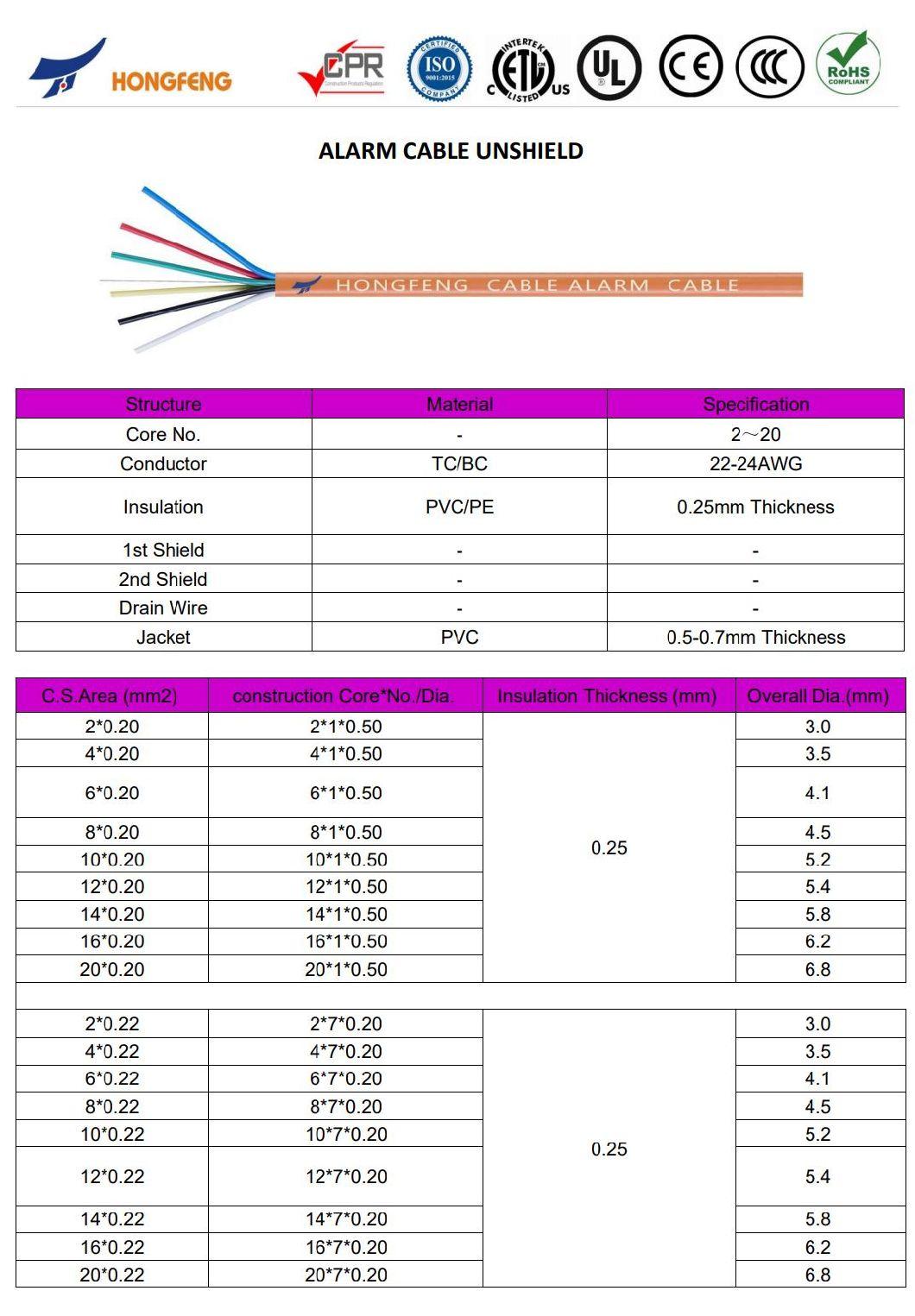

11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.
12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
