BS Standard ASTM Standard AAC Conductor 4/0# 300mm2 800mm2 All Aluminum Alloy Conductor and All Aluminum Conductor Overhead Transmission Conductor
Guangdong Vango Cable Industry Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead Installation
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：Conductor
- Material Shape：Round Wire
- Range of Application：Overhead Installation
- Certification：ISO9001, ISO9001, ISO14001, CCC, CE
- Brand：Gdyg
- Warranty：12 Months
- OEM/ODM：Acceptable
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600 Tons Per Month
Description
SteelAluminum / Steel Number of wires / Diameter Number of wires / Diameter Steel core Conductor mm2 mm2 / mm2 % n / mm n / mm mm mm Ω/km kN 25 25 / 4 GOPHER 16% 6 / 2.36 1 / 2.36 2.36 7.08 1.093 9.61 30 30 / 5 WEASEL 17% 6 / 2.59 1 / 2.59 2.59 7.77 0.9077 11.45 40 40 / 7 FERRET 18% 6 / 3.00 1 / 3.00 3.00 9.00 0.6766 15.20 50 50 / 9 RABBIT 18% 6 / 3.35 1 / 3.35 3.35 10.05 0.5426 18.35 70 70 / 43 HORSE 61% 12 / 2.79 7 / 2.79 8.37 13.95 0.3936 61.20 100 100 / 14 DOG 14% 6 / 4.72 7 / 1.57 4.71 14.15 0.2733 32.70 150 150 / 37 WOLF 25% 30 / 2.59 7 / 2.59 7.77 18.13 0.1828 69.20 150 150 / 9 DINGO 6% 18 / 3.35 1 / 3.35 3.35 16.75 0.1815 35.70 175 175 / 43 LYNX 25% 30 / 2.79 7 / 2.79 2.79 19.53 0.1576 79.80 175 175 / 10 CARACAL 6% 18 / 3.61 1 / 3.61 3.61 18.05 0.1563 41.1 200 200 / 49 PANTHER 25% 30 / 3.00 7 / 3.00 3.00 21.00 0.1363 92.25 200 200 / 12 JAGUAR 6% 18 / 3.86 1 / 3.86 3.86 19.30 0.1367 46.55 400 400 / 56 ZEBRA 14% 54 / 3.18 7 / 3.18 3.18 28.62 0.0674 131.9
Our company
Established in 1988, Guangdong Vango Cable Industry Co., Ltd., the Guangdong Top 100 Private enterprise, is a professional manufacturer of power cables and wires. It is the main supplier of cable & conductor and special transmission conductor of National Power Grid and China Southern Power Grid. The comprehensive strength of Vango Company ranks top 20 of the cable industry in China and top 5 of the Guangdong province.
It covers 214000m² with about 110 sets international advanced cable and wire producing and testing equipments. There are 540 employees including over 116 intermediate and senior technical personnel with 9 senior titles which contributes strong power of scientific research, management and innovation. It gains 21 Patents issued by State Intellectual Property Office of China.
The main products are power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.

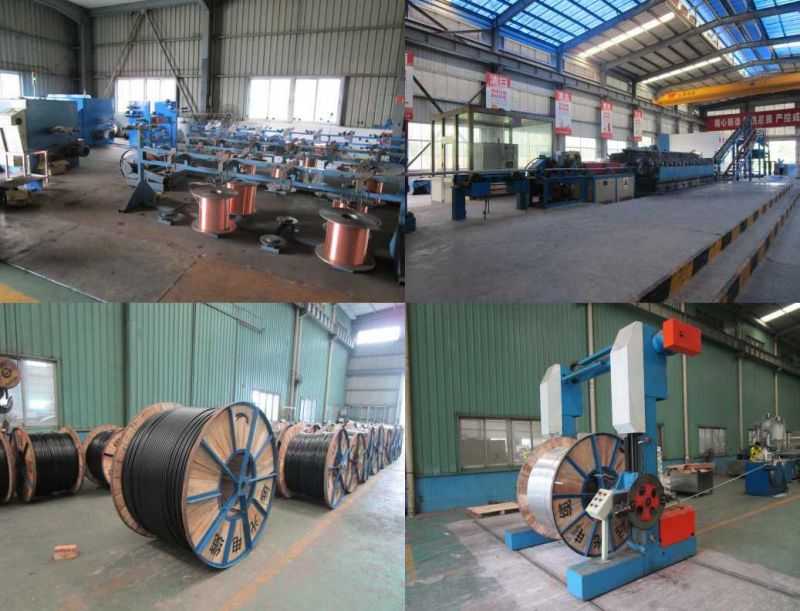

Workshop
Certificates
Customers
FAQ:
1. Are you a trading company or manufacture?
We are a wire and cable Manufacturer with 30 years history almostly, our factory located in Qingyuan, Guangdong Province, China.
2. What is your main product?
As one of leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.
3. Can you offer me a free sample?
Yes, sample is free but the freight charge should be borne by you.
4.How is the payment?
T/T, L/C is acceptable.
5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.
6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.
7.Do you have after-sale service?
Yes, 12 months warannty
