CCTV Cable 75ohm Rg Coaxial Cable Series RG6 / Rg58 / Rg11 / Rg59
Hangzhou Spring Electronics Co., Ltd.- Application：Coaxial Cable, LAN Cable, Fiber Optic Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：RG6
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：coaxial cable
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO
- Model：MHYV-xx
- Transport Package：Packed by Carton,Wooden Drum,Wooden Pallet
- Specification：Local Communication Cable, Coaxial Cable, LAN Cab
- Trademark：FUU
- Origin：Made in China
- HS Code：8544200000
- Production Capacity：24000km,Year
Description
Construction Parameters:
Inner Conductor
0.040"/1.02mm/18AWG CCS
Dielectric
0.180"/4.57mm Foamed PE
Shield 1
0.187"/4.75mm Bonded Aluminum Polyproylene
Shield 2
Aluminum braid wire 95% coverage
Jacket
0.268"±0.006"/6.81±0.15mm PVC
Jacket Thickness
0.030"/0.76mm
Application
For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance
The Max. at 20ºC shall be < 87 Ω/km
26.6Ω/1000ft
Capacitance
52 ±3 pF/m 15.9 ±0.9 pF/ft
Impedance
75 ± 3 Ω
Return loss
between 5 and 1000MHz: > 22dB
Velocity of Propagation
0.85
Sparker Test (VAC)
4
Mechanical and Envrionmental Properties
Cable bend radius
10 times the cable diameter
Operating Temp Range
-20 ºC to 60ºC
Cable diamensions
0.268"±0.006"/6.81±0.15mm PVC

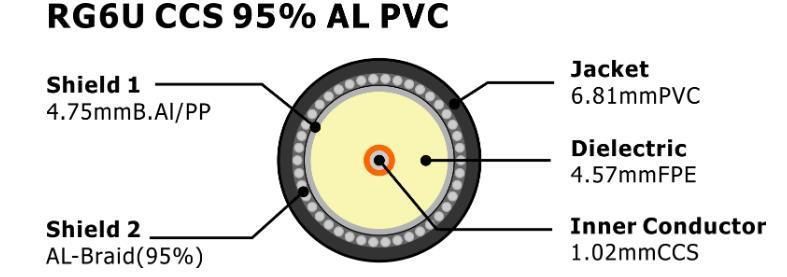

Cross Section
Attenuation(20ºC):
Frequency (MHZ)
Max Attenuation(dB/100ft)
Max Attenuation (dB/100m)
5
0.58
1.90
55
1.60
5.25
83
1.95
6.40
187
2.85
9.35
211
3.05
10.00
250
3.30
10.82
300
3.55
11.64
350
3.85
12.63
400
4.15
13.61
450
4.40
14.43
500
4.66
15.29
550
4.90
16.08
600
5.10
16.73
750
5.65
18.54
865
6.10
20.01
1000
6.55
21.49
Order Informations:
Marking
RG6U CCS 95% CATV COAXIAL CABLE ×××MT
Package
300M/Wooden Spool
Delivery time
Normally 25 days after received the deposit.
Our Service:
1) Quick Response --All inquiries will be replied within 24 hours.
2) Professional Quotation --All prices will be quote according to customers' detailed
specifications & requirements.
3) OEM & ODM Service
4) Can print your own brand on the jacket printing with foot or meter marking.
5) Make customized designs for stickers, drums, outer cartons, etc.
6) Stable Quality --All materials and products passed restrict QC procedures,comply with
international standards.
7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
Confirmation in usual.
Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
