4mm2 6mm2 Xlpo XLPE Solar System Panel AC Electrical Photovoltaic Wire DC PV1-F TUV Single Core Power PV Solar Cable

People's Cable Group Co., Ltd.
  • Application：Industrial
  • Material Shape：Round Wire
  • Sheath Material：Crosslinking
  • Insulating Material：XLPE
  • Conductor Type：Stranded
  • Brand：Rmjt

Base Info

  • Model NO.：H1Z2Z2-K PV1-F
  • Certification：TUV
  • Wire Core Material：Tinned Wire
  • Transport Package：Soft Packing or Standard Export Drums
  • Specification：4mm2 6mm2
  • Trademark：RMjT
  • Origin：Henan, China
  • HS Code：8544492100
  • Production Capacity：99999999999999km Per Month

Description

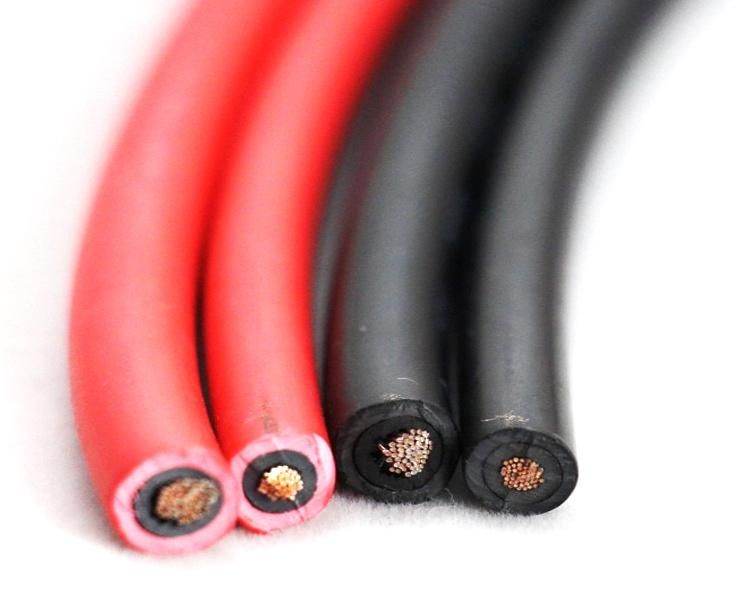

4mm2 6mm2 Xlpo XLPE Solar System Panel AC Electrical Photovoltaic Wire DC PV1-F TUV Single Core Power PV Solar CablePhotovoltaic Cable H1Z2Z2-K

Conductor section: 0.5mm2-300mm2 (other specifications can be customized); Conductor: Tinned copper stranded wire conforms to EN60228.5 category soft conductor;
Insulation: Low-smoke halogen-free radiation cross-linked polyolefin environmentally friendly insulation material:
Sheath material: low-smoke halogen-free radiation cross-linked polyolefin environmentally friendly UV-resistant sheath material;
Insulation color: black (other colors can be customized);
Sheath color: black/red/(other colors can be customized);
Rated voltage: DC 1.5/1.5kV AC 1.0KV
Test voltage: 6500V, 50HZ, 5 minutes;
Temperature class: -45ºC to 125ºC; -45 to +257; Photovoltaic Cable H1Z2Z2-K

Ambient temperature: -40ºC to +90ºC; -40 to +194
Service life: 25 years (through TUV/UL)
Maximum short-circuit temperature: 280°C, +536°F;
Bending radius: Fixed installation>4x; Mobile installation>5x;
Material characteristics/standards;
Fire performance: EN 60332-1-2:2004;
Zero smoke emission: 1EC61034: minimum 60% light transmittance
Low fire load: DIN 51900
Certification: EN50618:2014;
Application standard: EN50618:20144mm2 6mm2 Xlpo XLPE Solar System Panel AC Electrical Photovoltaic Wire DC PV1-F TUV Single Core Power PV Solar Cable
PV1-F photovoltaic cable product detailsModel: PV1-FOuter diameter of conductor stranded: 2.60mmApplication standard: 2 PfG 1169/08.2007Insulation nominal thickness: 0.8mmConductor material:IEC 60228, Category 5 stranded tinned copper wireSheath Nominal Thickness: 0.9mmInsulation material: Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefinOuter diameter of finished wire: 6.1±0.1mmSheath material: radiation cross-linked low-smoke halogen-free flame-retardant polyolefinConductor resistance (20ºC): ≤5.09Ω/kmNominal cross section: 4mm2 6mm2Working environment temperature ºC: -40~+90current carrying capacity: 5 highHigher conductor temperature: +120ºCNumber of cores: 1Reference short-circuit allowable temperature: 200ºC5SConductor structure: NO./mm 56/0.30Rated voltage: DC: 1.8kv AC U. /U: 0.6/1kv4mm2 6mm2 Xlpo XLPE Solar System Panel AC Electrical Photovoltaic Wire DC PV1-F TUV Single Core Power PV Solar Cable4mm2 6mm2 Xlpo XLPE Solar System Panel AC Electrical Photovoltaic Wire DC PV1-F TUV Single Core Power PV Solar Cable
About us
4mm2 6mm2 Xlpo XLPE Solar System Panel AC Electrical Photovoltaic Wire DC PV1-F TUV Single Core Power PV Solar Cable

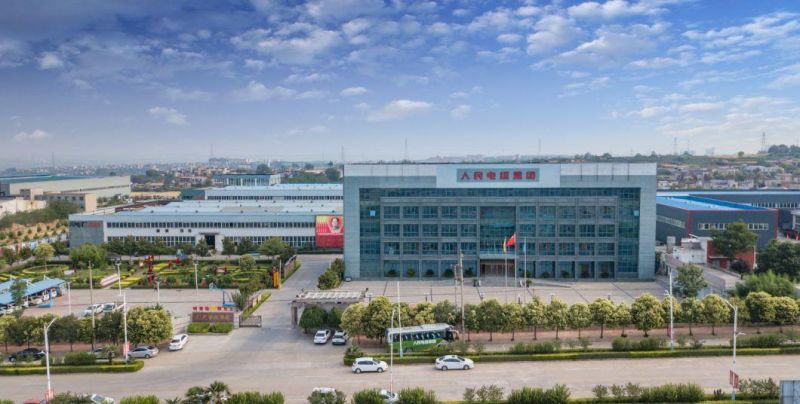

People's Cable Group was established in 2007. It is a national non-regional enterprise integrating R&D, production and sales of wires and cables, with a total area of more than 300,000 square meters and a building area of 230,000 square meters. The actual capital assets exceed 350 million U.S. dollars, and there are 630 employees, including 65 professional and technical experts. It is located at No. 13, Yongding East Road, People's Cable Industrial Park, Gongyi Economic and Technological Development Zone, Zhengzhou City, Henan Province, China. National Highway 310 and Lianhuo Expressway run through it. The geographical position is superior and the transportation is very convenient. It is a good place for tourism and business negotiation.

4mm2 6mm2 Xlpo XLPE Solar System Panel AC Electrical Photovoltaic Wire DC PV1-F TUV Single Core Power PV Solar Cable
People's Cable Group Co., Ltd. specializes in the production of high, medium and low voltage series of wires and cables. The main products are PVC insulated power cables, fire-resistant cables, flame-retardant cables, control cables, rubber cables, overhead insulated cables, low-voltage coaxial cables-smokeless Halogen-free cables and shielded cables, pre-branched cables, waterproof cables, rat-proof cables, aluminum stranded wires, steel core aluminum stranded wires, railway transportation cables and cables, PVC insulated wires, buried wires, anti-aging wires, etc., more than 30 varieties, More than 3000 products of several specifications have been exported to more than ten countries and regions such as Southeast Asia, the Middle East, Africa and South America.

4mm2 6mm2 Xlpo XLPE Solar System Panel AC Electrical Photovoltaic Wire DC PV1-F TUV Single Core Power PV Solar Cable
Certificate

People's Cable Group Co., Ltd. has strong technical force, advanced production equipment, complete testing equipment, reliable product quality and excellent after-sales service. The products are produced in strict accordance with GB, ICE, BS and other standards. It has passed ISO9001-2008 quality system certification, 14001-2004 environmental system certification, 28001-2001 occupational health and safety management system certification, national compulsory CCC certification, and obtained a national industrial product production license. Over the years, it has passed the inspections of national, provincial and municipal quality supervision departments many times. In 2010, it was recognized as a provincial-level enterprise technology research and development center by the Henan Provincial Development and Reform Commission.
4mm2 6mm2 Xlpo XLPE Solar System Panel AC Electrical Photovoltaic Wire DC PV1-F TUV Single Core Power PV Solar Cable
FAQ

Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we
will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
