Rg58, Rg178, JIS Ultrasound Special Medical Equipment Multi Core Coaxial Cable for Ultrasound
Nantong Hwatek Wires and Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Network
- Conductor Material：Copper
- Sheath Material：Pet
- Insulation Material：PFA
Base Info
- Material Shape：Round Wire
- Range of Application：Medical Equipment
- Certification：ISO9001, UL, CCC, RoHS
- Brand：Hwatek
- Color：Optional
- Qty/Roll：305m, 610m or as Request
- Transport Package：Rolled in Reels, Packed in Pallets.
- Trademark：Hwatek
- Origin：China
- HS Code：8544492100
Description
CharacterProduct Number AWG Material Construction Dia. mm Material Nom. Dia. mm Material Dia. mm Material Nom. Dia. mm Impedance Ω Max resistance Ω/km HTMMC0001 36 TC 7/0.05 0.15 PFA 0.38 TC 0.03 FEP 0.54 45 1569 HTMMC0002 38 SPTCA 7/0.04 0.12 PFA 0.3 TC 0.025 FEP 0.44 45 3300 HTMMC0003 38 SPTCA 7/0.04 0.12 FEP 0.35 TC 0.03 PET 0.44 50 3300 HTMMC0004 38 SPTCA 7/0.04 0.12 PFA 0.46 TPTCA 0.025 PET 0.54 80 3300 HTMMC0005 40 SPTCA 7/0.03 0.09 PFA 0.22 TC 0.025 FEP 0.36 45 5000 HTMMC0006 40 TC 7/0.03 0.09 PFA 0.25 TC 0.03 PET 0.34 50 5000 HTMMC0007 40 SPTCA 7/0.03 0.09 PFA 0.38 TPTCA 0.025 PET 0.46 80 5000 HTMMC0008 42 SPTCA 7/0.025 0.08 PFA 0.175 TC 0.025 PFA 0.30 45 7500 HTMMC0009 42 SPTCA 7/0.025 0.08 PFA 0.345 TPTCA 0.025 PET 0.43 80 7500 HTMMC0010 44 SPTCA 3/0.03 0.06 PFA 0.175 TPTCA 0.025 PFA 0.29 50 12000
Product Charater:
Small diameter, light weight, good strength and bending resistance.
Especially helo internal connection of medical devices.
PFA insulation material has excellent heat resistance and stable electronical performance.
Structure:
Straned or silver-plated or tinned alloy copper conductor, 30-46AWG
PFA insulation
Spiral shielding with tinned copper
PFA or PET Jacket
Technical Parameter:
Rated temperature: 80ºC
Rated Voltage: 30V

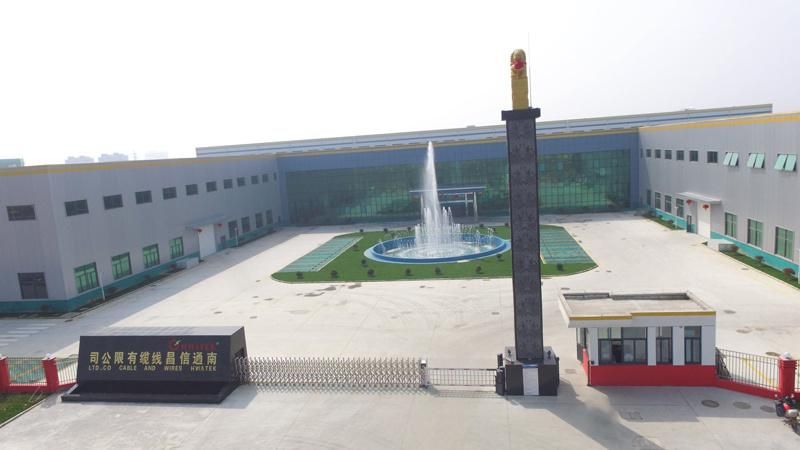

Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates

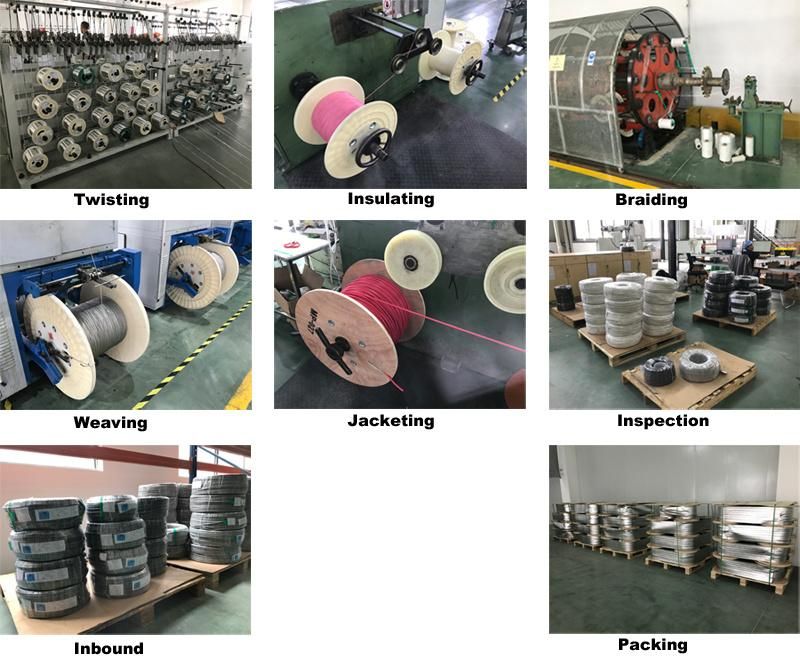

Production Progress
Shipping
FAQ
1.Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
