• Model NO.：low voltage cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：VV, Yjv...
• Brand：Chang Qing Teng

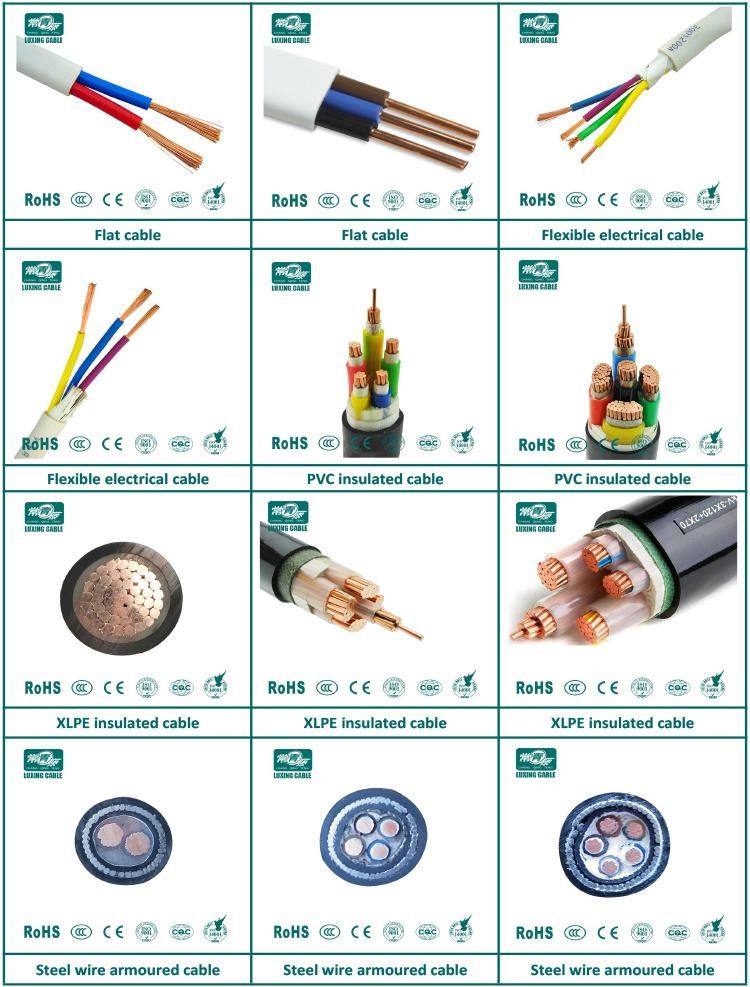

• Product Name：Low Voltage Cable, PVC Cable, XLPE Cable, Armoured
• Number of Cores：Single,2,3,4,5,6,7,8,10,16 Core...
• Cross Section Area/Measure：3.5,4,6,10,16,25,35,50,70,95,120,150,185,240,300,4
• Standard：IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 5023-
• Conductor：Stranded,Solid,Flexible Copper,Aluminum Conductor
• Insulation：XLPE,PVC,PE,PUR
• Aplication：Electric, House Wire, Building Wire...
• Shield：Copper Wire Screen(Cws), Aluminium Wire Screen(Aws
• Armoured：Steel Tape Armoured (Sta) or Steel Wire Armoured (
• Transport Package：Non-Fumigation Wooden Drum, Iron-Wooden Drum.
• Specification：350x160x270,800x350x550,1000x500x600,1200x500x900.
• Trademark：Luxing
• Origin：Shandong
• HS Code：8544492100
• Production Capacity：500000meters,Year

Single core(unarmoured)Nominal Cross SectionDiameter of Conductor (Approx.)Nominal Insulation ThicknessNominal Sheath ThicknessOverall Diameter (Approx.)mm^2mmmmmmmm1x42.311.47.11x62.811.47.61x103.611.48.41x164.511.49.31x255.61.21.410.81x356.71.21.411.91x5081.41.413.61x709.41.41.415.11x95111.61.517.21x12012.41.61.518.71x15013.81.81.620.61x18515.321.722.71x24017.52.21.825.41x30019.52.41.928.01x40022.62.62.031.71x50025.22.82.135.01x63028.32.82.238.3 Two cores(unarmoured)Nominal Cross SectionDiameter of Conductor (Approx.)Nominal Insulation ThicknessNominal Sheath ThicknessOverall Diameter (Approx.)mm^2mmmmmmmm2x1.51.40.81.89.62x2.51.80.81.810.42x42.311.812.22x62.811.813.22x103.611.814.82x164.511.816.62x255.61.21.819.62x356.71.21.821.82x5081.41.825.22x709.41.41.928.12x95111.62.032.42x12012.41.62.135.42x15013.81.82.239.22x18515.322.443.32x24017.52.22.548.92x30019.52.42.754.02x40022.62.62.961.5 Three cores(unarmoured)Nominal Cross SectionDiameter of Conductor (Approx.)Nominal Insulation ThicknessNominal Sheath ThicknessOverall Diameter (Approx.)mm^2mmmmmmmm3x1.51.40.81.810.13x2.51.80.81.810.93x42.311.812.93x62.811.813.93x103.611.815.73x164.511.817.63x255.61.21.820.83x356.71.21.823.23x5081.41.826.93x709.41.41.930.13x95111.62.134.73x12012.41.62.238.03x15013.81.82.342.13x18515.322.546.53x24017.52.22.752.53x30019.52.42.858.03x40022.62.63.166.1 Three cores+1(unarmoured)Nominal Cross SectionDiameter of Conductor (Approx.)Nominal Insulation ThicknessNominal Sheath ThicknessOverall Diameter (Approx.)mm^2(3)mm(1)mm(3)mm(1)mmmmmm3x 16/104.53.6111.819.03x 25/165.64.51.211.822.63x 35/166.74.51.211.825.33x 50/258.05.61.41.21.929.63x 70/359.46.71.41.22.033.23x 95/5011.08.01.61.42.238.43x120/7012.49.41.61.42.342.03x150/7013.89.41.81.42.546.63x185/9515.311.021.62.651.63x240/12017.512.42.21.62.958.33x300/15019.513.82.41.83.164.53x400/18522.615.32.623.373

 Four cores(unarmored)Nominal Cross SectionDiameter of Conductor (Approx.)Nominal Insulation ThicknessNominal Sheath ThicknessOverall Diameter (Approx.)mm^2mmmmmmmm4x1.51.40.81.810.84x2.51.80.81.811.84x42.311.814.04x62.811.815.24x103.611.817.14x164.511.819.34x255.61.21.822.94x356.71.21.825.64x5081.41.929.94x709.41.42.033.54x95111.62.238.74x12012.41.62.342.34x15013.81.82.546.94x18515.322.651.94x24017.52.22.958.64x30019.52.43.164.84x40022.62.63.373.8

 Multi-cores(unarmoured)Nominal Cross SectionDiameter of Conductor (Approx.)Nominal Insulation ThicknessNominal Sheath ThicknessOverall Diameter (Approx.)mm^2mmmmmmmm5x1.51.40.81.811.77x1.51.40.81.812.610x1.51.40.81.815.612x1.51.40.81.816.114x1.51.40.81.816.819x1.51.40.81.818.621x1.51.40.81.819.524x1.51.40.81.821.630x1.51.40.81.822.840x1.51.40.81.827.748x1.51.40.81.928.261x1.51.40.81.930.95x2.51.80.81.812.87x2.51.80.81.813.810x2.51.80.81.817.212x2.51.80.81.817.714x2.51.80.81.818.619x2.51.80.81.820.621x2.51.80.81.821.624x2.51.80.81.824.030x2.51.80.81.825.440x2.51.80.82.031.148x2.51.80.82.031.761x2.51.80.82.134.7
