Self-Supporting Single Mode 8 Core Figure 8 Fiber Optic Cable

Hongan Group Corporation Limited
  • Application：Communication
  • Type：Single-mode Fiber
  • Connection Structure：SC
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：1000n<3000n
  • Allowed Tensile Strength：1000n<5000n

Base Info

  • Model NO.：GYFTC8Y-8
  • Core：8 Fo
  • Certification：RoHS, UL, CE, ISO9001, CCC
  • Brand：Hongan
  • Sheath Material：PE
  • Optical Fiber：Manufactured by Ourselves
  • Operating Temperature：-40ºC--+70ºC
  • Messenger：7 Steel Wire Twisted
  • Installation：Aerial
  • Standard：Yd,T901-2009; IEC60794-1
  • Transport Package：Drum, Roll
  • Specification：optical fiber
  • Trademark：Hongan
  • Origin：China
  • HS Code：8544700000
  • Production Capacity：42000km,Month

Description

Fiber countNominal diameter (mm)Nominal weight (kg/km)Permitted tensile  Long term/ Short term (N)Permitted crush  Long term/ Short term (N)Bend radius Static state/ Dynamic state (mm)2-309*16.81501000/50001000/300010D/10D32-369.4*17.21641000/50001000/300010D/10D38-609.6*17.41631000/50001000/300010D/10D62-7210.4*18.21841000/50001000/300010D/10D74-8411.2*19.62121000/50001000/300010D/10D86-9611.58-20.22221000/50001000/300010D/10D

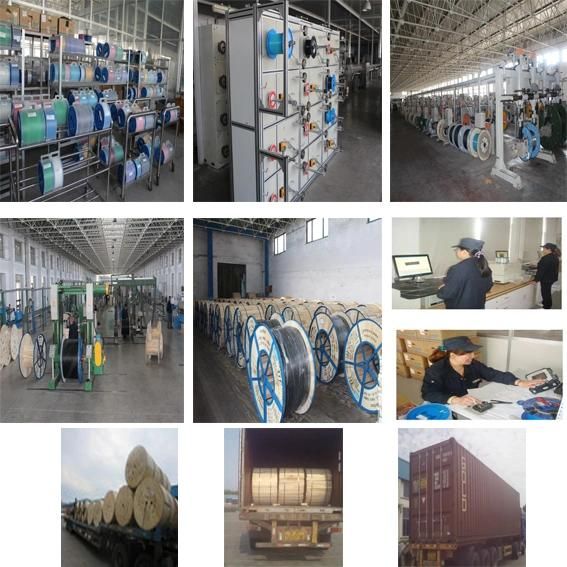

Advanced Production Line:
Self-Supporting Single Mode 8 Core Figure 8 Fiber Optic Cable

Certifications:
Self-Supporting Single Mode 8 Core Figure 8 Fiber Optic Cable


Company information:
HONGAN GROUP located in Shandong China.  We Specialized produce  optical fiber cable, network data cable and multi pair telephone cables more than 30 years.  And supply EPON , GPON, Data center Solutions and Equipments.

China TOP 10 optical fiber cable manufacture:
Self-Supporting Single Mode 8 Core Figure 8 Fiber Optic Cable


Our products had passed  ISO9001 ,ISO14001 and OHSAS18001. And meet the requirements of CE,RoHS ,TLC and UL.   Shipped to Thailand, Cambodia ,Burma,Vietnam,Laos,Europe,Africa and so on. More than twenty countries.

Our Customers:
Self-Supporting Single Mode 8 Core Figure 8 Fiber Optic Cable
Self-Supporting Single Mode 8 Core Figure 8 Fiber Optic Cable
Self-Supporting Single Mode 8 Core Figure 8 Fiber Optic Cable


FAQ
-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.

-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!

-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.

-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.

-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.

-Q6:How many years does the fiber cable's life?
A:Fiber cable's life is about 25 years.
