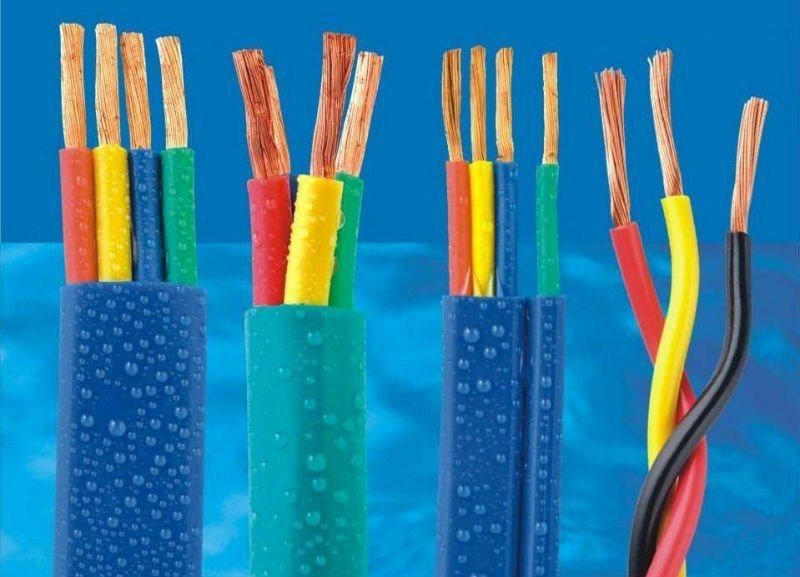

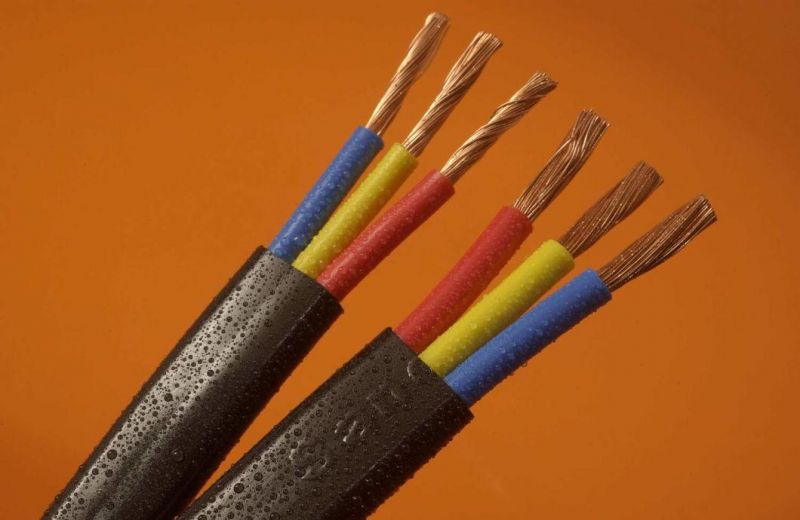

Rubber Insulated and Sheathed Water Resistant Flat Submersible Pump Cable 12AWG

YIFANG ELECTRIC GROUP INC.
  • Application：Submersible Pump Cable
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：PVC
  • Sheath Material：PVC
  • Material Shape：Flat Wire

Base Info

  • Model NO.：12AWG BM32
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC, CE, RoHS, UL, VDE
  • Model：Flat VV
  • Brand：Yifang
  • Insulation Option：Epr
  • Sheath Option：CPE
  • Transport Package：Wooden or Wooden-Steel Drum
  • Specification：multicores
  • Trademark：Yifang Cable
  • Origin：Zhengzhou, China
  • HS Code：8544492100
  • Production Capacity：300km,Month

Description

Flat Jacketed Submersible Pump Cables WITH GroundCONDUCTOR SIZE (AWG)NO OF CONDUCTORNos & Dia. of WireGround Conductor Size (AWG)CORE DIA. (MM)NOMINAL SHEATH THICKNESS (MM)CABLE DIA. (MM)14341 X 0.254143.851.1518.00 x6.5012365 X 0.254124.501.1521.00 x7.60103105 X 0.254105.301.1524.30 x7.9083168 X 0.254106.501.4029.70 x9.9063266 X 0.25488.002.0036.00 x11.8043420 X 0.254810.102.0045.10 x14.7023665 X 0.254611.302.2050.10 x16.2013817 X 0.254613.602.2058.10 x19.001/031045 X 0.254615.602.2058.10 x19.002/031330 X 0.254618.002.2066.50 x21.50



Note :
The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance as per Class 5 of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360
In view of continuous improvements in our design and process, specifications given here in are subject change without notice.


ADVANTAGES

Cut, tear and abrasion resistant
Exceptional long term performance
Excellent resistance to oils, acids, chemicals and ozone
Excellent impact and weather resistance
Excellent electrical propertise
Rubber Insulated and Sheathed Water Resistant Flat Submersible Pump Cable 12AWGRubber Insulated and Sheathed Water Resistant Flat Submersible Pump Cable 12AWGRubber Insulated and Sheathed Water Resistant Flat Submersible Pump Cable 12AWGRubber Insulated and Sheathed Water Resistant Flat Submersible Pump Cable 12AWG

Our company

Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.

Rubber Insulated and Sheathed Water Resistant Flat Submersible Pump Cable 12AWG
Our certificate

Rubber Insulated and Sheathed Water Resistant Flat Submersible Pump Cable 12AWG
FAQ
1.Q:Are you a factory or trading company?
 A: Manufacturing base in Henan ,China, with more than 500 workers.

2.Q:How can I visit there?
 A: Sure,If you need,we will arrange the driver to pick you up.

3.Q:How can I get some samples?
 A: Contact me on below,Determin sample and address for shipping.


4.Q:Have you ever supplied cables to our country?
 A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.

5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.

6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.

7.Q:How long is your delivery time?
 A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
