0.6/1kv Low Voltage Copper Aluminum Conductor 1 2 3 4 5 Core XLPE PVC Insulated Swa Sta Awa Armoured Electric Cable Underground Power Cable
Shanghai QIFAN Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：XLPE
Base Info
- Model NO.：YJV VV YJV32 VV32
- Material Shape：Round Wire
- Range of Application：Underground
- Certification：ISO9001, UL, CCC
- Brand：QIFAN
- Conductor：Aluminum
- Standards：IEC 60502 BS5467
- QC Team：200

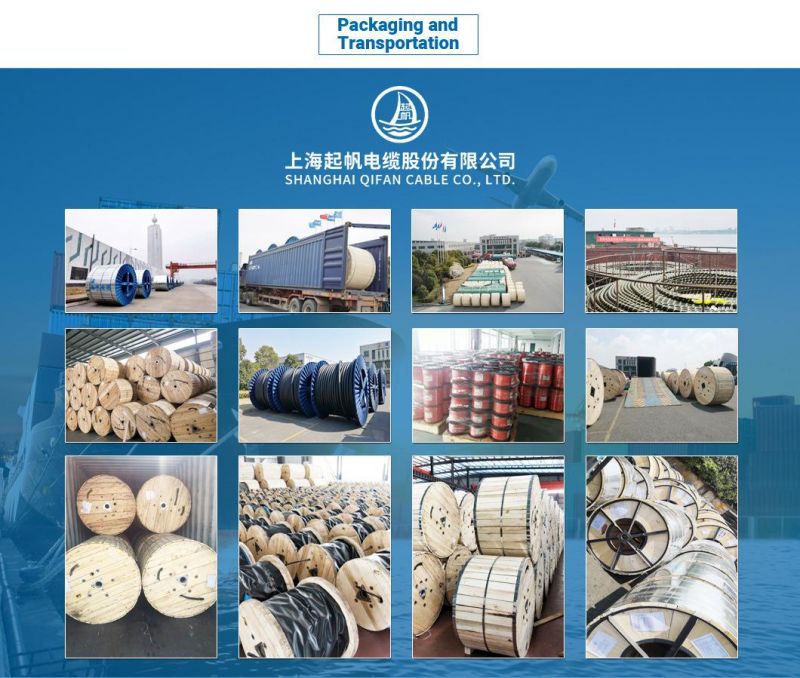

- Transport Package：Wooden Drums
- Specification：1.5-800mm2
- Trademark：QF
- Origin：China
- HS Code：85444921
- Production Capacity：5000000000km
Description
Weight of CableDiameter of conductor mm Thickness of XLPE mm Diameter of conductor mm Thickness of XLPE mm Thickness mm Diameter of wire
mm Thickness of Sheath mm Complete Diameter mm YJV32(CU)
kg/km YJLV32(AL)
kg/km 4*1.5 1.38 0.7 - - 1 0.8 1.8 14.3 391.3 353.7 4*2.5 1.78 0.7 - - 1 0.8 1.8 15.3 459.7 397.2 4*4 2.25 0.7 - - 1 0.8 1.8 16.4 551.7 451.8 4*6 2.76 0.7 - - 1 1.25 1.8 18.6 800.7 650.4 4*10 4 0.7 - - 1 1.25 1.8 21.6 1089.3 837.6 4*16 5.1 0.7 - - 1 1.6 1.8 24.9 1543 1151.1 4*25 6.3 0.9 - - 1 1.6 1.8 28.8 2094.7 1481.8 4*35 6.2 0.9 - - 1 1.6 1.9 27 2386 1531.9 4*50 7.6 1 - - 1 1.6 2 30.7 3014.1 1858.5 4*70 8.8 1.1 - - 1.2 2 2.2 35.4 4298.9 2603.3 4*95 10.5 1.1 - - 1.2 2 2.3 39.3 5480.4 3149.3 4*120 11.2 1.2 - - 1.4 2.5 2.5 43.1 6972.2 4033.1 4*150 13 1.4 - - 1.4 2.5 2.6 48.2 8452.2 4784.6 4*185 14.5 1.6 - - 1.6 2.5 2.8 53.1 10276.8 5704.9 4*240 16.2 1.7 - - 1.6 2.5 3 57.7 12650.1 6721.6 4*300 19 1.8 - - 1.6 2.5 3.2 64.7 15397.1 7986.5 3*2.5+1*1.5 1.78 0.7 1.38 0.7 1 0.8 1.8 15.1 442.9 386.6 3*4+1*2.5 2.25 0.7 1.78 0.7 1 0.8 1.8 16.1 527.8 437.3 3*6+1*4 2.76 0.7 2.25 0.7 1 1.25 1.8 18.3 776.2 638.6 3*10+1*6 4 0.7 2.76 0.7 1 1.25 1.8 20.8 1014 787.7 3*16+1*10 5.1 0.7 4 0.7 1 1.25 1.8 23.6 1322.2 965.4 3*25+1*16 6.3 0.9 5.1 0.7 1 1.6 1.8 27.8 1953.6 1395.9 3*35+1*16 6.7 0.9 5.1 0.7 1 1.6 1.8 28.8 2295.1 1556.6 3*50+1*25 7.4 1 6.3 0.9 1 1.6 1.9 31.1 2847.6 1827.7 3*70+1*35 8.7 1.1 7 0.9 1.2 2 2.1 36.2 4015.5 2530.3 3*95+1*50 10.5 1.1 8.2 1 1.2 2 2.2 40.5 5076.7 3039.4 3*120+1*70 11.6 1.2 10 1.1 1.2 2 2.4 43.9 6227.1 3598.8 3*150+1*70 13 1.4 10 1.1 1.4 2.5 2.5 49.7 7816.5 4641.9 3*185+1*95 14.5 1.6 11.6 1.1 1.4 2.5 2.7 54.5 9503.8 5492.1 3*240+1*120 16.5 1.7 13 1.2 1.6 2.5 2.9 60.4 11746.4 6565.3 3*300+1*150 18.8 1.8 14.6 1.4 1.6 2.5 3 66.3 14126 7651.2 3*2.5+2*1.5 1.78 0.7 1.38 0.7 1 0.8 1.8 15.8 484.5 418.8 3*4+2*2.5 2.25 0.7 1.78 0.7 1 1.25 1.8 17.8 702.1 596 3*6+2*4 2.76 0.7 2.25 0.7 1 1.25 1.8 19.2 853.3 690.7 3*10+2*6 4 0.7 2.76 0.7 1 1.25 1.8 21.7 1110 846.1 3*16+2*10 5.1 0.7 4 0.7 1 1.6 1.8 25.6 1635.8 1216.1 3*25+2*16 6.3 0.9 5.1 0.7 1 1.6 1.8 29.3 2182.1 1526.4 3*35+2*16 6.5 0.9 5.1 0.7 1 1.6 1.8 29.1 2453.2 1616.7 3*50+2*25 7.4 1 6.3 0.9 1 1.6 2 32.2 3125.6 1952.5 3*70+2*35 9 1.1 7 0.9 1.2 2 2.1 37.9 4482.4 2783.7 3*95+2*50 10.7 1.1 8.2 1 1.2 2 2.3 42.4 5679.2 3353.1 3*120+2*70 12 1.2 10 1.1 1.4 2.5 2.5 47.8 7499.7 4447.5 3*150+2*70 13.4 1.4 10 1.1 1.4 2.5 2.6 52.3 8649.7 5051.2 3*185+2*95 15 1.6 11.6 1.1 1.6 2.5 2.8 57.9 10681.1 6086.6 3*240+2*120 17 1.7 13 1.2 1.6 2.5 3 63.6 13074.7 7158.8 3*300+2*150 19.2 1.8 14.6 1.4 1.6 2.5 3.2 69.7 15769.3 8377.6
Note:
Galvanized Steel Wires applied helically over the bedding as per IEC 60502-1 or as per BS 5467, BS 6346.
Single core cables shall be Aluminium wire armoured)
------Our Feature------
mm
kg/km
kg/km
Note:
Galvanized Steel Wires applied helically over the bedding as per IEC 60502-1 or as per BS 5467, BS 6346.
Single core cables shall be Aluminium wire armoured)
------Our Feature------

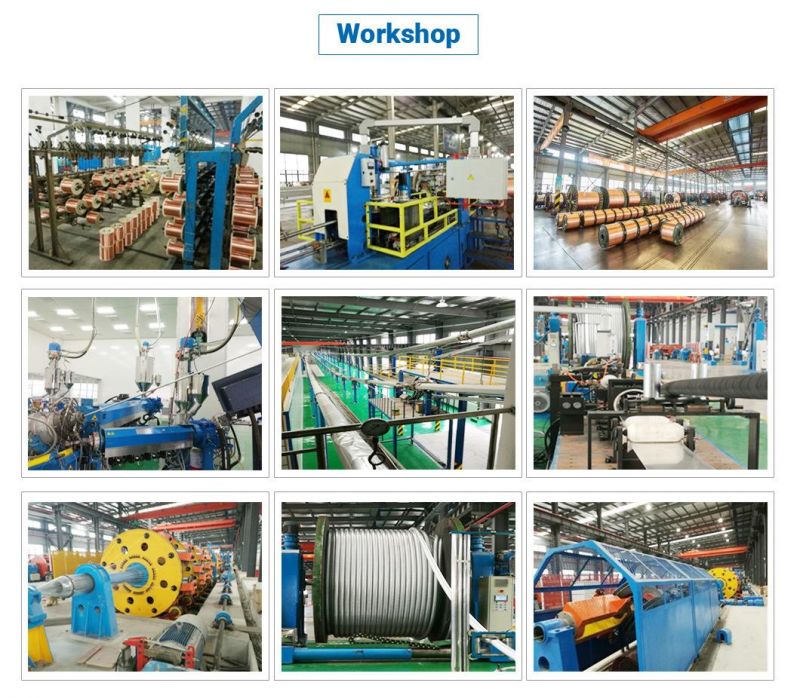

- Imported equipment with experienced technical team

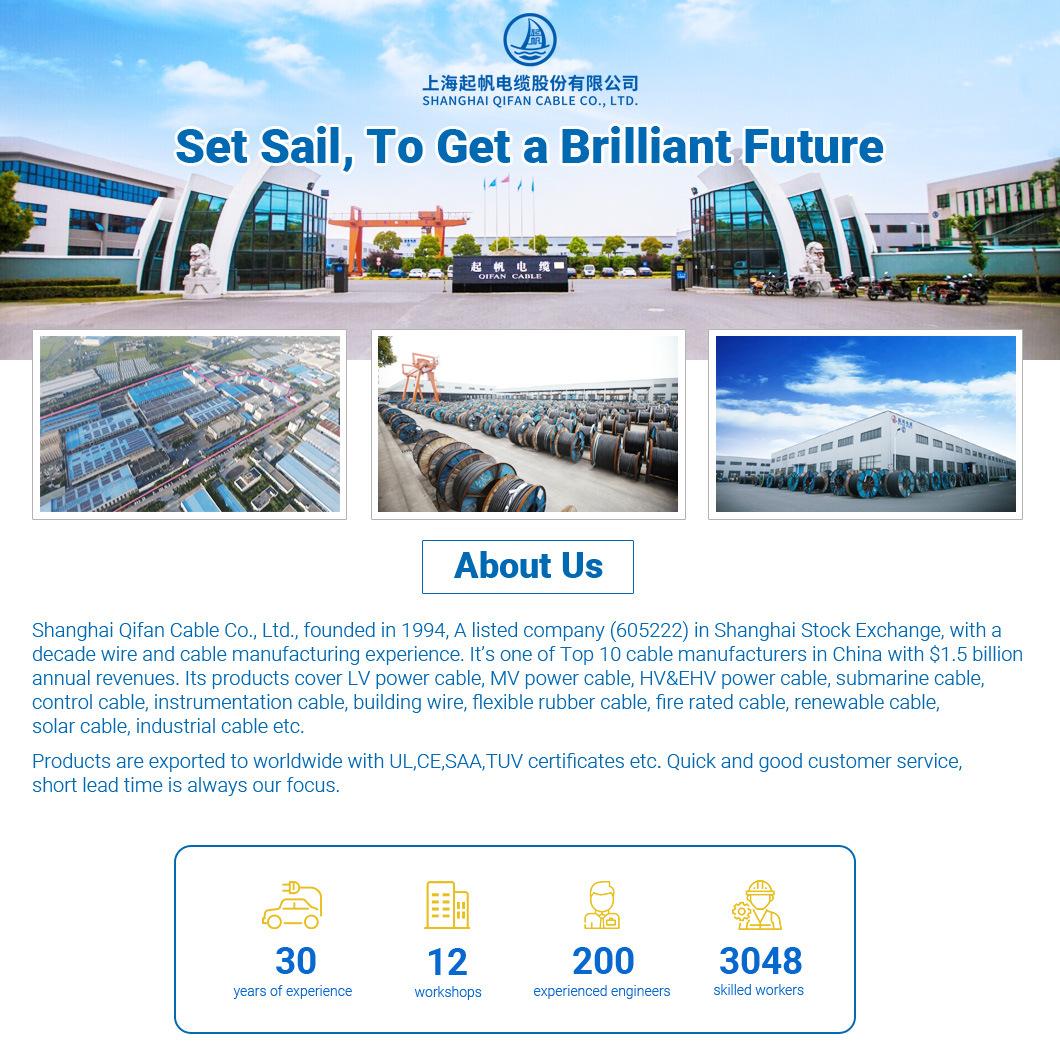

The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany - Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate. - Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc. - Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
