• Model NO.：UTP CAT5e Cable
• Wire Core Material：Bc, CCA, Tc
• Certification：CE, ISO, RoHS, UL, CPR, ETL, ISO,IEC 60331
• Brand：Yixun or OEM
• Range of Application：Network Communication
• Center Conductor：24 AWG Bc,CCA
• Insulation：Solid PE Insulation
• Jacket：PVC,PE,PVC+PE,PVC+PVC Indoor,Outdoor
• Specifications：24AWG+PE+Al Foil+Ground Wire+5.9PVC
• Dielectric Breakdown：2500V
• Impedance：100±15 Ohm
• Frequency：100MHz,200MHz,350MHz
• Color：Grey, Blue, Black, Yellow, Red etc
• Other：UV,Frame Returdant,Waterproof
• Delivery Time：15-20 Days
• Transport Package：305m,Pull Box, 2 Pull Box,Carton
• Specification：35x35x20cm
• Trademark：OEM
• Origin：China,Zhejiang
• HS Code：8544491100
• Production Capacity：10000boxes,Month

Basic Info.

Model NO. UTP CAT5e Cable Wire Core Material Bc, CCA, Tc Certification CE, ISO, RoHS, UL, CPR, ETL, ISO/IEC 60331 Brand Yixun or OEM Range of Application Network Communication Center Conductor 24 AWG Bc/CCA Insulation Solid PE Insulation Jacket PVC,PE,PVC+PE,PVC+PVC Indoor/Outdoor Specifications 24AWG+PE+Al Foil+Ground Wire+5.9PVC Dielectric Breakdown 2500V Impedance 100±15 Ohm Frequency 100MHz,200MHz,350MHz Color Grey, Blue, Black, Yellow, Red etc Other UV/Frame Returdant/Waterproof Delivery Time 15-20 Days Transport Package 305m/Pull Box, 2 Pull Box/Carton Specification 35x35x20cm Trademark OEM Origin China/Zhejiang HS Code 8544491100 Production Capacity 10000boxes/Month

Product Description

305m UTP CAT5E LAN cable Network CABLE

Material Instruction
1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.



Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.



Electronic Characteristics
Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S


Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000,ROHS.

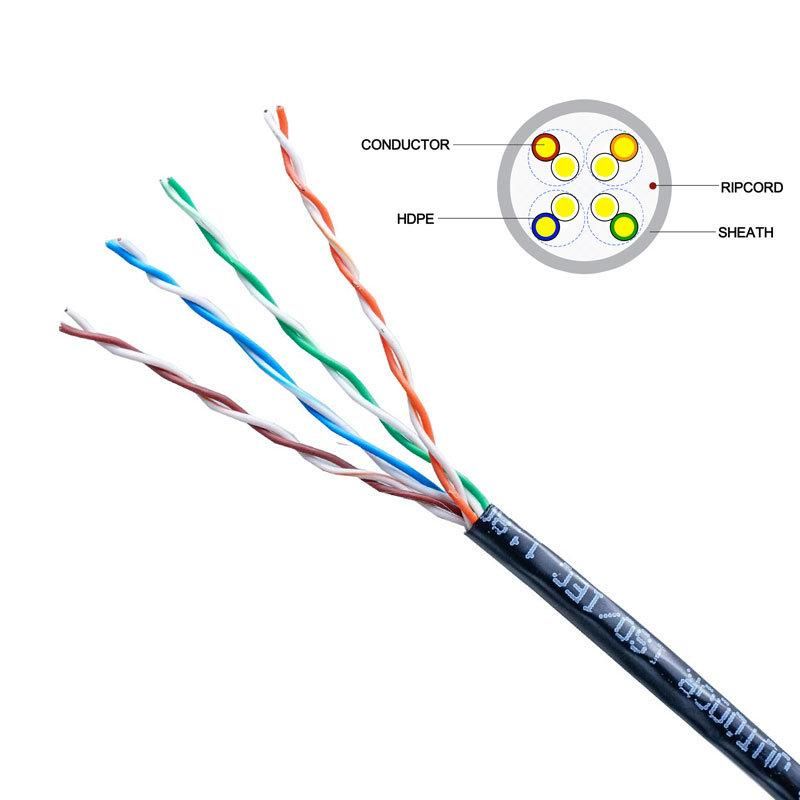

Construction Characteristics

Configuration
Conductor	0.50±0.01mm(24AWG) Bare copper
Insulation	0.90±0.03mm HDPE
Cores/Pairs	8/4
Sheath	5.0±0.1mm PVC (PE,LSZH)
Options	Jelly Compound, Jacket: UV, FR, RoHS complied.

Technical Performance

Frequency	Attenuation	RL	Next	PS Next
(Mhz)	(dB/100M)	(dB)	(dB)	(dB/100m)
1MHz	2	20	65.3	63.5
4MHz	4.1	23	56.3	54.2
8MHz	5.8	24.5	52.4	50.5
10MHz	6.6	25	51.3	49.2
16MHz	8.2	25	49.3	47.4
20MHz	9.3	25	48.8	46.9
25MHz	10.4	24	45.3	43.4
31.25MHz	11.7	23	43	41.8
62.5MHz	17	21	39.2	37.2
100MHz	22	20	36.3	34.4

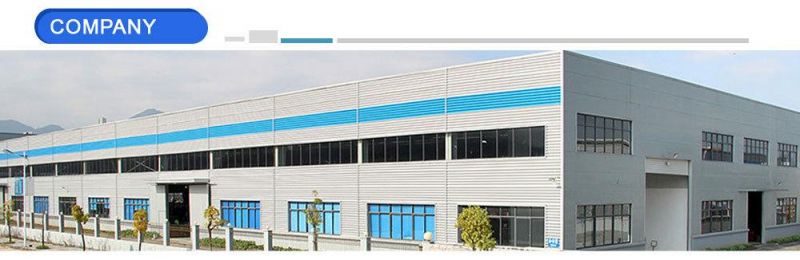

<sub>YIXUN is professional supplier and exporter with 12 years Experience in Communication Industry.

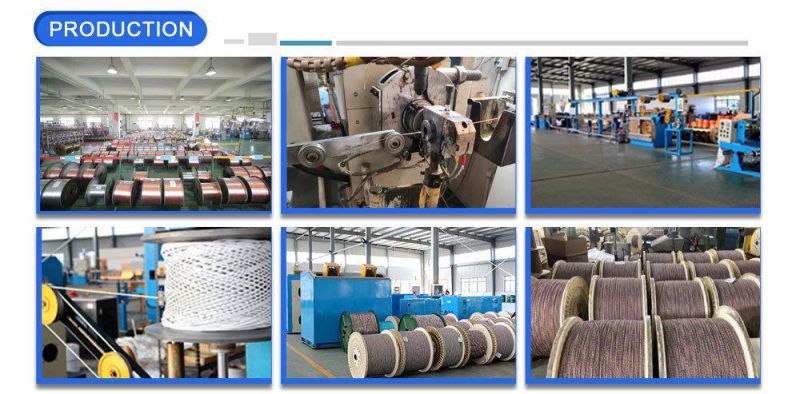

Manufacture Lan Cable, Coaxial Cable, Fiber Optic Cable, Telephone cable, Alarm cable and Accessories,
with Certificates of ISO9001, CPR, UL, CE, RoHS, ETL.
In the past 10 years, We export to more than 70 countries, entered into the market of Europe, Australia, South America and Southeast Asia.

Our products have been widely installed in Telecom companies and many distributors around the world.
We're a business dedicated to offer you superior customer service, applying educated business principles to
keep our business as well as our clients companies. With understanding the needs of each one of our customers,YIXUN is entirely committed to meeting individual customer needs.</sub>





Why Choose Us
YIXUN knows deep down that our purpose is to meet the needs of our customers.We learn about the supply chain and know that the difficulties we are facing are also the same as those of our customers.In this way, by understanding what our own needs are, we can think outside the box to understand the needs of our customers.

If you talk with YIXUN, we will do exactly according to documents: How to find an honest supplier? (We will send you if you need).
We hope that customers can feel relaxed and happy when negotiating with our company, not only can complete the procurement work efficiently and worry-free but also to improve your ability of re-sell.

What kind of service we can provide?
1.Latest market information per month
2.Market research report
3.Solutions of supplier's dishonest problem
4.Solutions of supplier's poor service
5.Soulutions of supplier's quality control problem
6.Soulutions of supplier's lead time problem
7.Support solutions replace price list
8.Channels for complaints
9.25 Years of quality warranty assurance.
10.Market protection.
11.Solutions of order follow-up.
12.Support sales methods and strategies.


FAQ
 (1)Q: Are you a manufacturer or a trading company?
     A: We are a Industry and trade integration with 12 years production experience.
(2)Q: Can you print our logo or company name in cable?
     A: Yes,we can print your logo or company name on products.
(3)Q:Can you accept customize or design for us?
     A: Yes, all communication cables are customized in our own factory and we can design for you according to your requirement.
(4)Q:Is it possible to get a free sample ?
     A: Yes, samples are free,and shipping cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
(5)Q:What is your MOQ ?
     A: Usually, MOQ is 100 thousand meters.
(6)Q:If I want to purchase,how to pay?
     A: Usually, we do T/T in 30% deposit before production,70% balance against copy of B/L. Also payment terms are negotiable depending on customer's request.
