• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Model：Cat5e
• Brand：Surelink
• Rated Voltage：35V
• OEM：Pure Bc
• Standard：IEC11801 and Tia,Eia 568b
• Operating Temperature：-20 to+70 Degree
• Transport Package：Carton
• Trademark：SURELINK
• Origin：China, Guangdong
• Production Capacity：150000rolls,Month

Basic Info.

Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS Model Cat5e Brand Surelink Rated Voltage 35V OEM Pure Bc Standard IEC11801 and Tia/Eia 568b Operating Temperature -20 to+70 Degree Transport Package Carton Trademark SURELINK Origin China, Guangdong Production Capacity 150000rolls/Month

Product Description

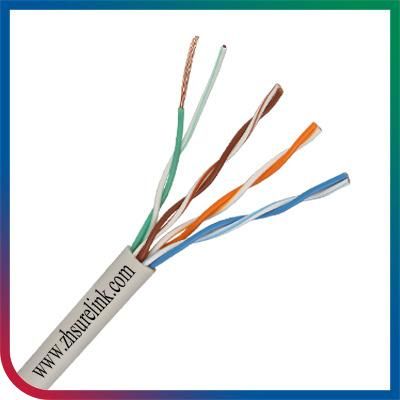

Surelink Factory 4pair 24awg 100Mhz indoor outdoor lan cable network ethernet cable cat 5e Bare Copper or CCA PVC jacket 305m roll pull box UTP Cat5e

Technical Parameters

1000m UTP CAT5E LAN cable Network CABLE
Material Instruction
1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.

Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and
cable scrap.
6. Color Availability: Additional cable colors available.

Electronic Characteristics
Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S

Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B,UL444
Certificates ISO9001,14000, UL, ROHS.



Cable Specification



Item Name	UTP CAT5E Lan Cable
TYPE	Cat5E
Conductor	CCA or 24AWG Stranded Copper
Number of Conductors	8
Insulation Material	HDPE
Application	Lan cable
Jacket	PVC/LSZH
Operating temperature	-20 ° C - +70 ° C
Standard	EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS
Certificate	CE/ISO/RoHS Approved




Related Package


Package Details:

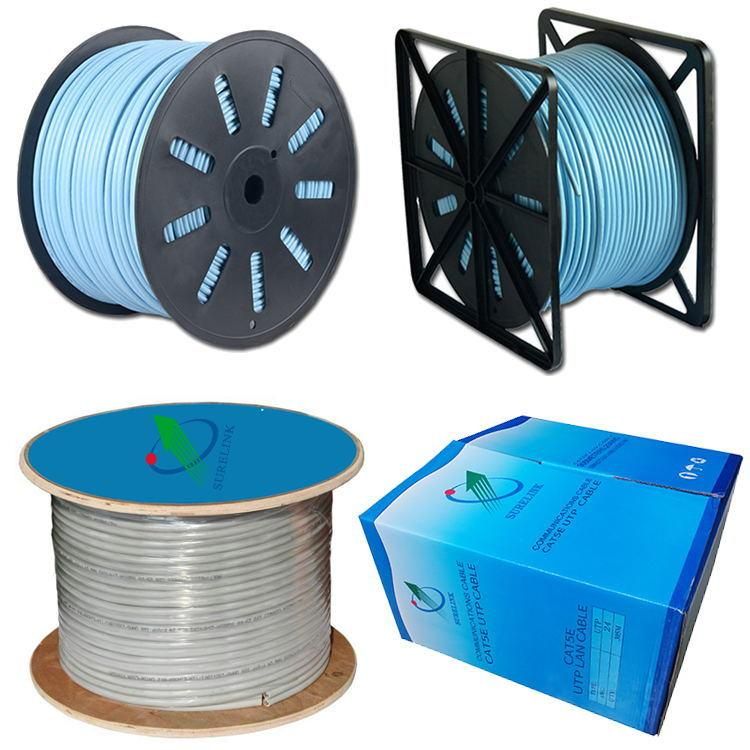

305meters or 1000ft pull box or wooden drum
Two boxes into a carton

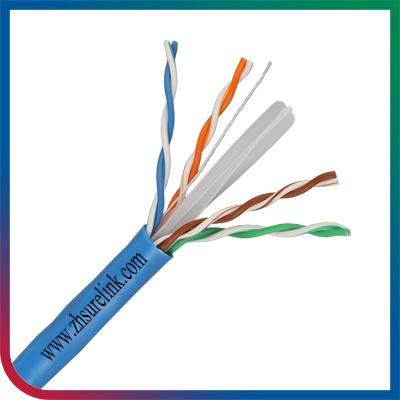

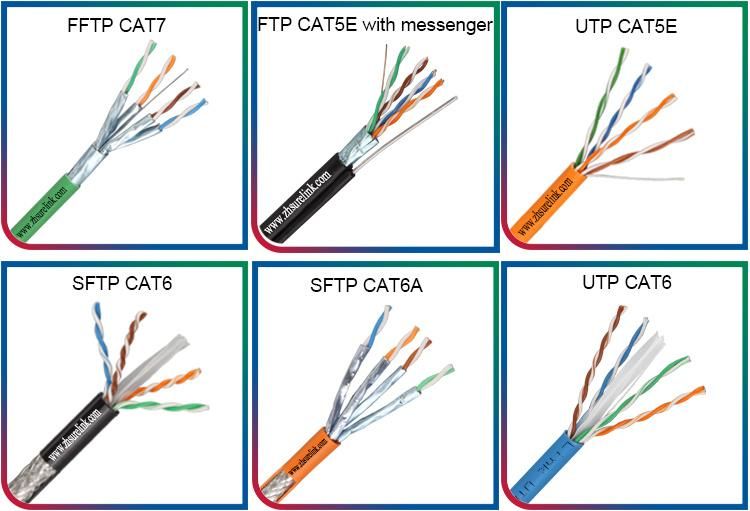

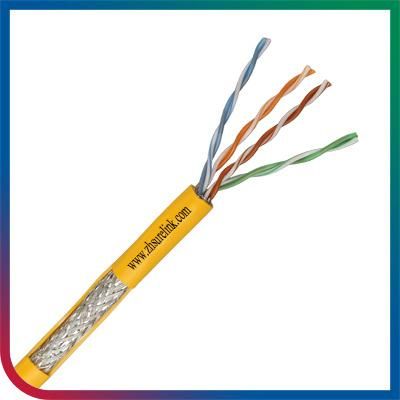

Related Hot Models





Manufacturer Introduction


Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables
and telecom accessories.  We have more than 20 years experience in this line.Our factory has over
twenty production lines and 300 employees.

Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.

Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.

We have established a close relationship with many companies around the world and we sincerely look
forward to woking with all clients from all over the world.

OEM and ODM order highly welcome !


Main Cable Categories Provided by Us


1.Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.

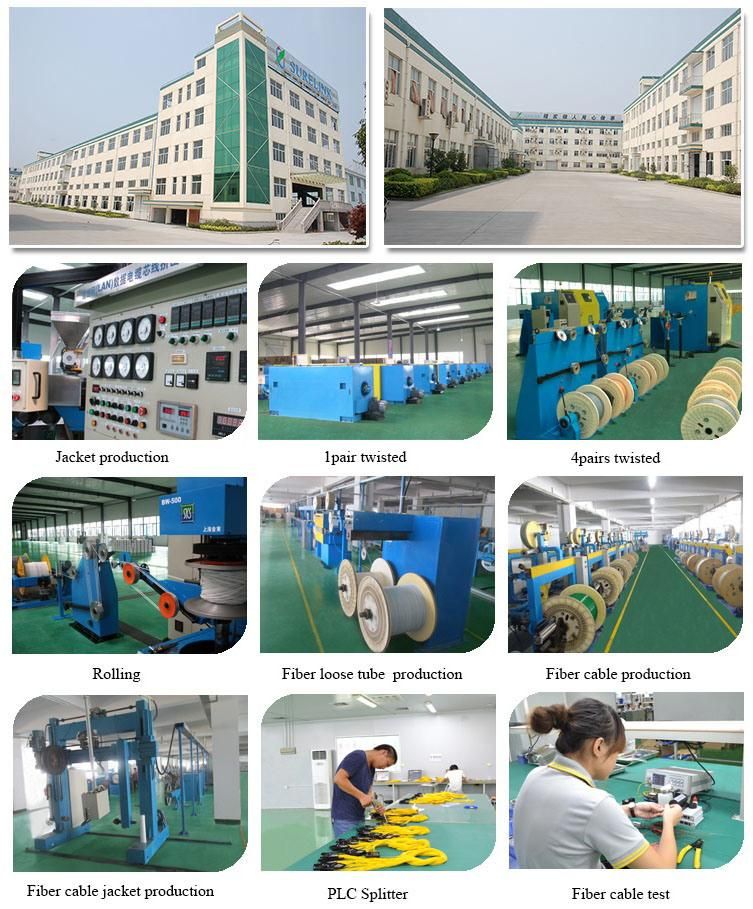

Workshop and Company Show

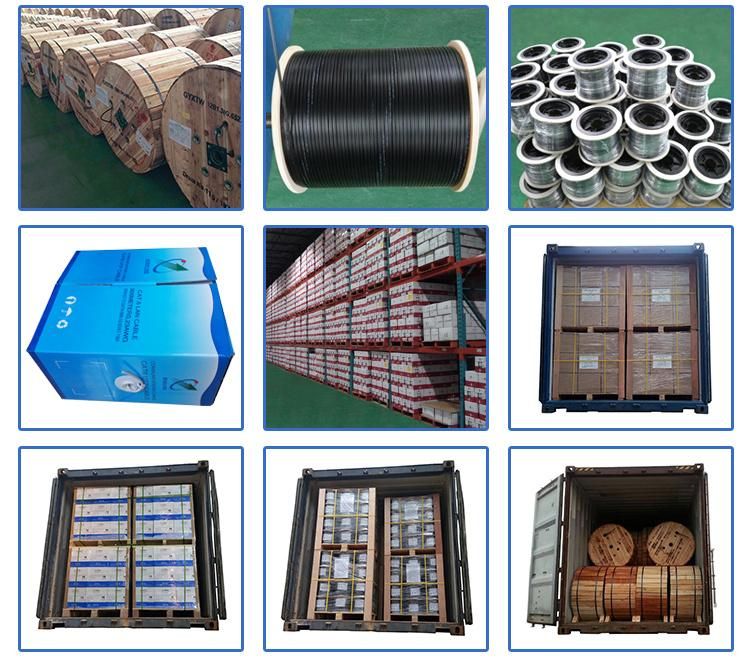

Package and Delivery





Payment and Shipping


Payment
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T ,L/C
Shipping
If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,
FEDEX or EMS.
For big order,we will ship the goods by air or by sea.


Just Talk To Us!
