• Model NO.：AAC+AAAC
• Rated Voltage：0.6,1 Kv, 11kv, 33kv
• Cores：Duplex, Triplex, Quadruplex
• Type of Phase Conductor：AAC
• Type of Neutral Conductor：AAC, AAAC, ACSR

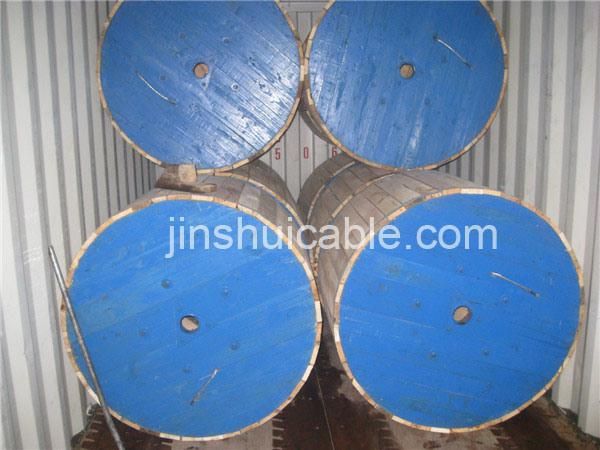

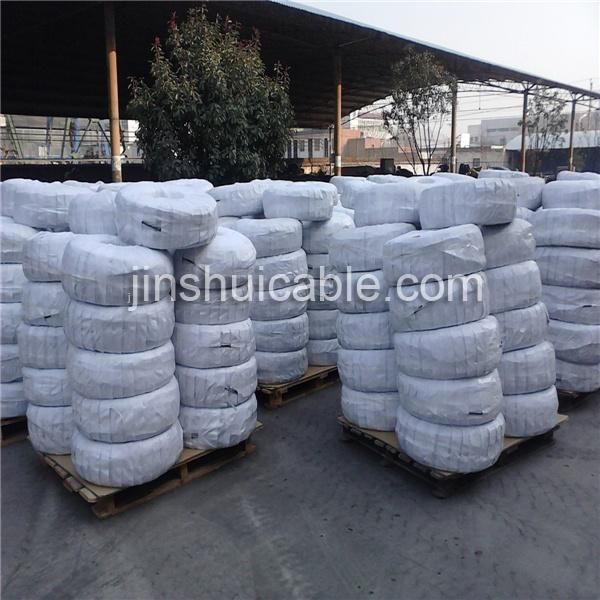

• Transport Package：Export Wooden Drum, Iron-Wooden Drum, Soft Roll
• Specification：ISO, CE, CCC
• Trademark：Jinshui
• Origin：Zhengzhou Henan
• Production Capacity：10000 Kilometers Per Month

Basic Info.

Model NO. AAC+AAAC Rated Voltage 0.6/1 Kv, 11kv, 33kv Cores Duplex, Triplex, Quadruplex Type of Phase Conductor AAC Type of Neutral Conductor AAC, AAAC, ACSR Transport Package Export Wooden Drum, Iron-Wooden Drum, Soft Roll Specification ISO, CE, CCC Trademark Jinshui Origin Zhengzhou Henan Production Capacity 10000 Kilometers Per Month

Product Description

0.6/1 Kv 11kv 33kv ABC Cable Duplex Drop AAC AAAC Electric Wire

Specifications

Standard: National Standard IEC and ASTM

Rated Voltage: 0.6/1KV, 11KV, 33KV

Construction: Phase conductor: aluminum stranded(AAC)

                         Neutral conductor: aluminum stranded(AAC), aluminum alloy stranded(AAAC), aluminum conductor steel reinforced(ACSR)

                         Insulation: XLPE or PE

Application:  The cables are designed for aerial power lines and room-entrance wires with voltage up to and including 0.6/1KV.

Uesd for overhead service application such as street linghting, outdoor lighting and temporary service for cunstruction.which improves the safety and reliance of electrified wire netting.



1 Type:Duplex Service Drop, Triplex Service Drop, Quadruplex Service Drop



    a Duplex Service Drop

   Applications:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.

   b Triplex Service Drop

   Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .

   c Quadruplex Service Drop

    Applications: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.

 2  Construction

     a Phase Conductor construction:The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.

    b  Neutral Conductor Construction

Cable assemblies are available with the following neutral conductors:

Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded

Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded

Aluminum alloy 6201-T81, concentric-lay-stranded



    c Insulation Material
The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)

Alternatively, black linear low-density polyethylene (LDPE) insulation with a 75°C temperature rating is available upon request.


======================================================
*Company Description*
======================================================
Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou ,Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm ,ISO 14001 Environmental Management Systerm ,OHSAS18001 occupational Heath Management Systerm ,ISO 10012 Measurement Management Systerm and others from China and abroad.

We have been engaged in producing electric cable and wire for nearly 20 years, and  we are also 12 year gold supplier. And we are confident that we can offer the best service and quality for you .

Our product range is as following:
 *Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)
 *Aerial Bounded Cable (Duplex, Triplex,Quadruplex)
 * PVC insulated wire (Rated voltage to 450/750V)
 *THHN/THWN wire
 *PVC insulated Power Cable
 *XLPE insulated Power Cable
 *Rubber sheathed Cable
 *Control Cable
 *Welding Cable
 *Cable Accessories

We take part in many fairs and exhibitions in China and abroad . Our aim is to be our customer's factory in Zhengzhou ,China .
We are here to help you placing orders of cost-effective electric cable and keep tracking your products and shipment.



===========================================================

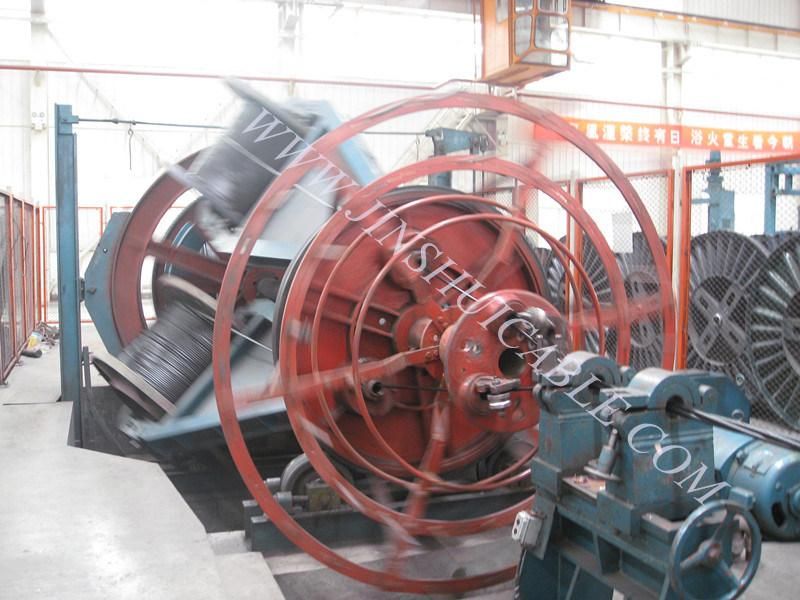

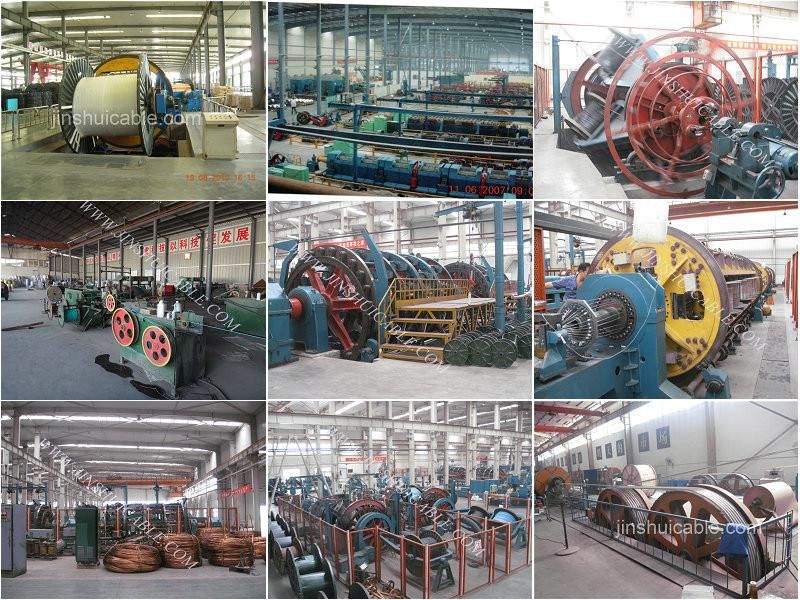

* Our Factory *
==========================================================
1,Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.

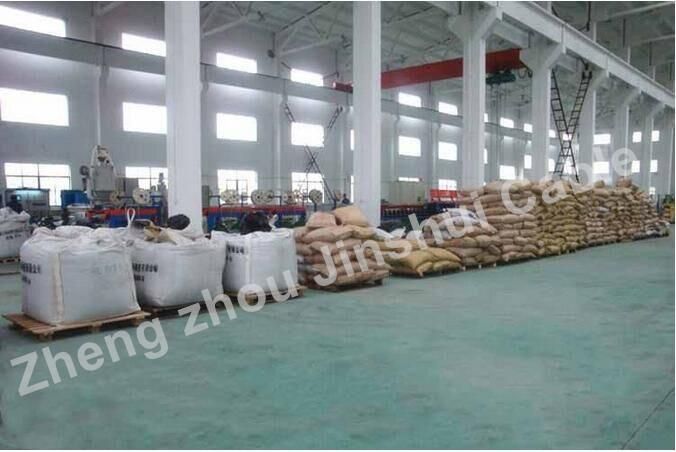

2,We choose excellent raw materials carefully to ensure the quality and meet the need of customers.

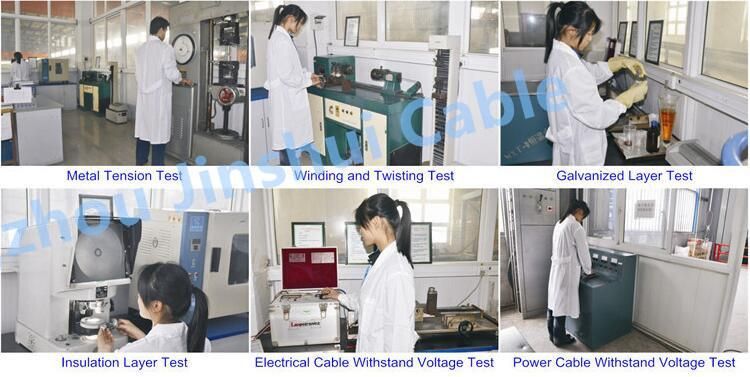

3,Mechanical testing of Cables is done to determine the quality and mechanical characteristics  before delivery.




======================================================
*FAQ*
======================================================
(1)Are  you the factory or trading company?
We are the manufacturer and 12 years gold supplier on alibaba.We are engaged in exporting cables for nearly 15 years.
 (2).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(3).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(4). What is the payment terms?
30% deposit by T/T,70% T/T after checking the copy of B/L. Or irrevocable L/C at sight .
(5).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.



Welcome your kind enquiry!
