• Model NO.：RG58-SMA-JJ-L
• Material Shape：Round Wire
• Conductor Type：Solid
• Wire Core Material：Tinned Wire
• Certification：ISO, RoHS
• Mating Cycles：>1000 Cycles
• Plating of Pin：Au,
• Transport Package：Box
• Trademark：Ezcon
• Origin：Changzhou China
• HS Code：8536901900
• Production Capacity：100000PCS,Year
• Package size per unit product：30.00cm * 30.00cm * 5.00cm
• Gross weight per unit product：0.500kg

Connector  Impedance50  ohmOperating  Frequency Band0  - 4000 MHzCable  Impedance50  ohmRF  Operating Voltage, maximum (vrms)1400.00  Vdc  Test Voltage2500  V(AC)Insulation  Resistance, minimum5000  MOhmInsertion  Loss1.5dB

(2)Mechanical SpecificationsOuter  Contact Attachment MethodCrimpInner  Contact Attachment MethodSolderedOuter  Contact PlatingTri-metalInner  Contact PlatingGoldAttachment  Durability25  cyclesInterface  Durability500  cyclesConnector  Retention Tensile Force28  NInsertion  Force22N

(3)DimensionsDiameter  21mmLength  1000mm

(4)Standard ConditionsAttenuation,  Ambient Temperature20  °C | 68 °FAverage  Power, Ambient Temperature40  °C | 104 °F

(5)Return LossFrequency  BandVSWR  ReturnLoss  (dB)DC-3000  MHz1.223.23000MHz-4000MHz1.319.1

(6)Components
 NameMaterialPlatingBodyBrassGoldInner  ContactABrassGoldInsulatorPTFE

(7)Regulatory Compliance/CertificationsAgency  ClassificationRoHS  2002/95/EC  Compliant by ExemptionChina  RoHS SJ/T 113642006Above  Maximum Concentration Value (MCV)

 Company Show

EZCON is a product and solution provider, the company provides high quality, high performance, and low-cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with a focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors, and high-end test/calibration products. The company has the capacity of product design, engineering service, low-cost production/sourcing, assembly, and testing. EZCON combines the advantages of low-cost production in China with a high level of engineering expertise, service, and quality.


Our Customers

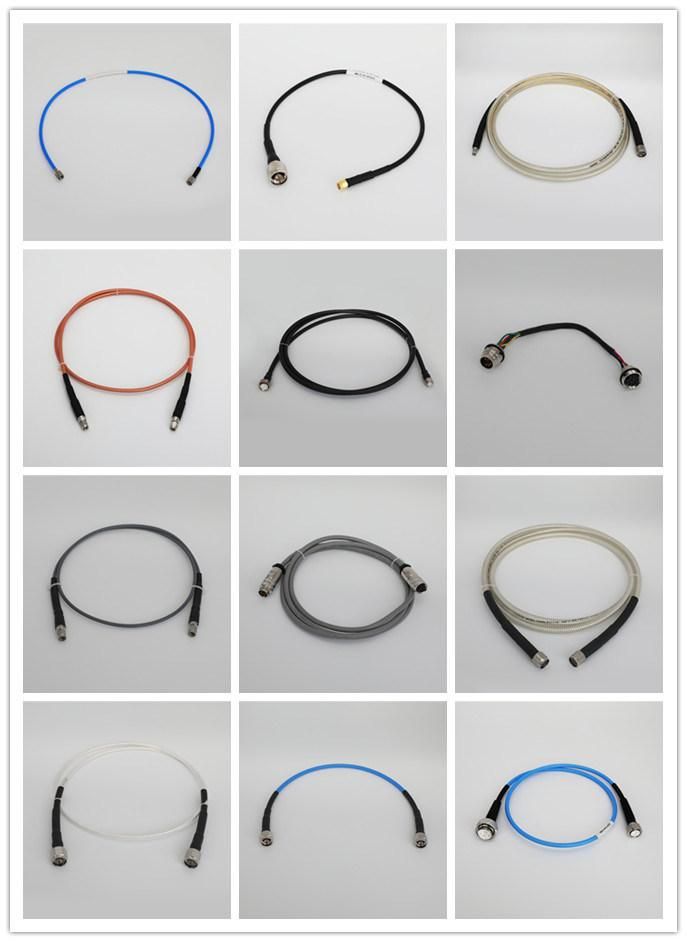

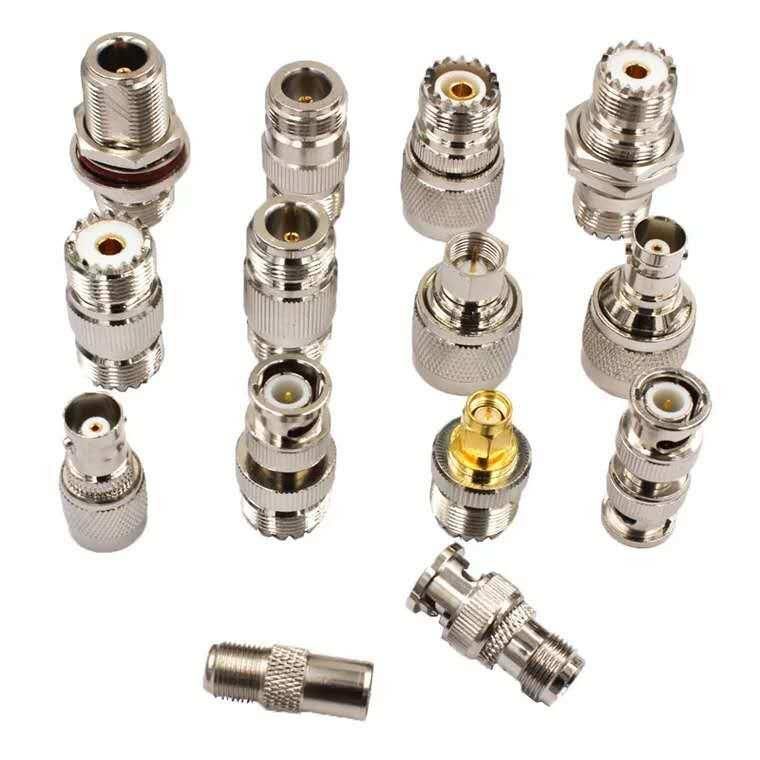

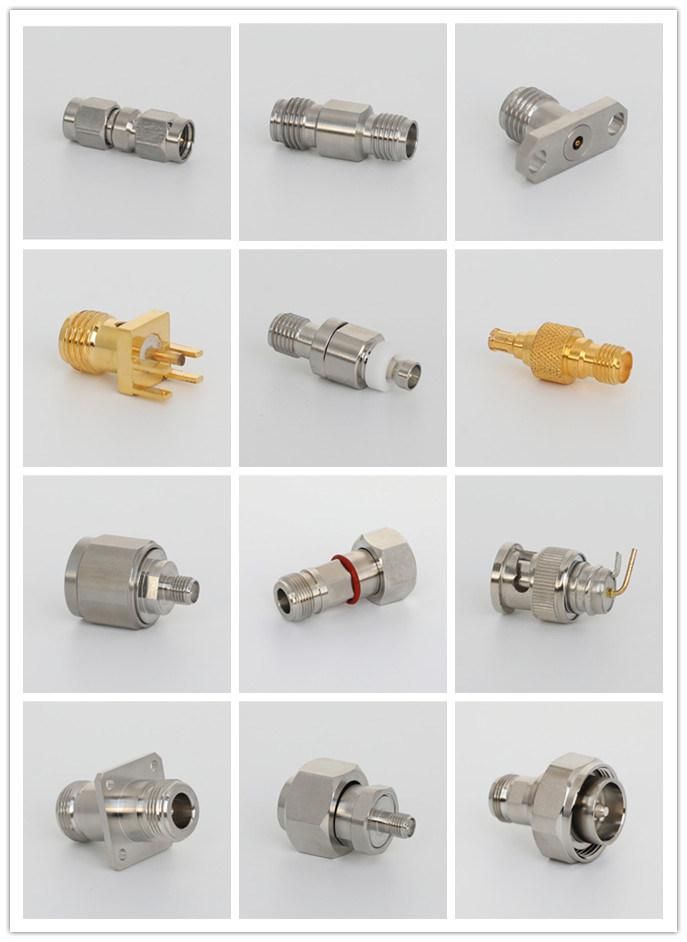

Company Products and Technologies




Customers Testimonials

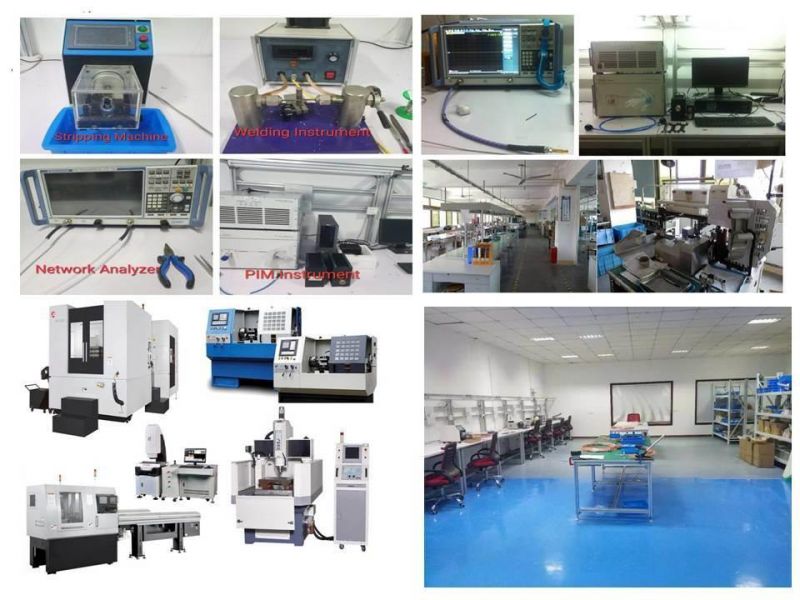

Main Company Equipments And Production line

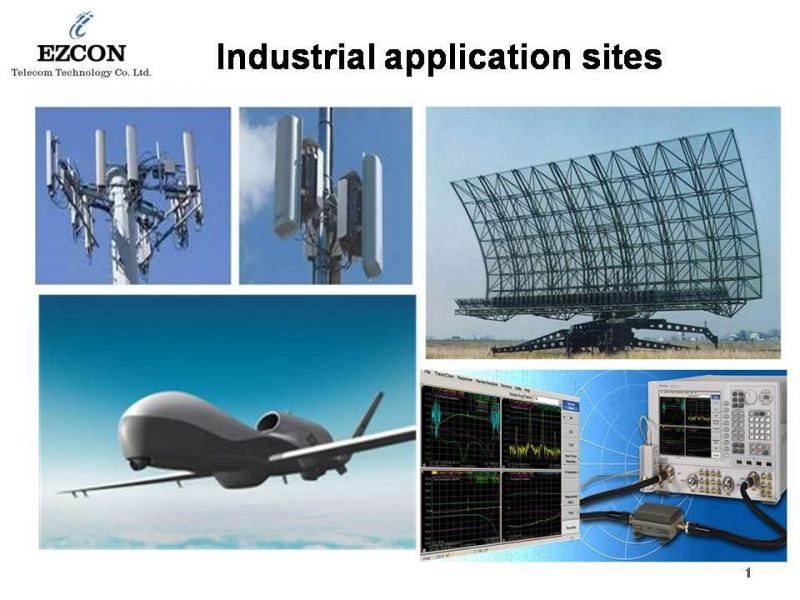

Products application sites



Company Certification


FAQ

1.Q: What's your MOQ?

A: 50 pcs

2.Q: What's your delivery time?

A:7-14 days after receiving PO.

3.Q: Does your company do a customized design?

A: Yes, we do OEM and ODM

4.Q: What is your after-sale service program?

A: Please see our service manual for details.

5. Q: Can you send samples to us for the test?

A: Yes, samples can be sent at a cost.


WHY CHOOSE EZCON

1)Sales directly to the customer.

2) First-class performance, highest quality, and life cycle.

3) Fast delivery: 1-2 working days.

4) Customerized Design.

5) Very competitive price.

7) Fast, enthusiastic, thoughtful, caring, and excellent service.

8) Quick response(replying within 30 minutes of receiving the request).


Our service

1. Email reply within 24 hours.

2. One-stop solution for electronic components, service, and manufacturing.

3. Each piece must pass the precision test.

4.Quality after-sales service.
