Electrical 600volts 14/2 12/3 12/2 Gauge with Ground Yellow 63 Romex Copper Wire Nm-B Cable 1000 FT Non Metallic Sheathed

Hebei Huatong Wires & Cables Group Co., Ltd.
  • Application：Construction, Building
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：PVC+Nylone
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：NM-B
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC, UL
  • Model：Nm-B
  • Brand：Ren Da
  • Product Name：Nm-B
  • Rate Voltage：600volts
  • Standard：UL719
  • Certificate：UL
  • Insulation：PVC+Nylon
  • Sheathed：PVC
  • Sample：Free
  • Market：USA

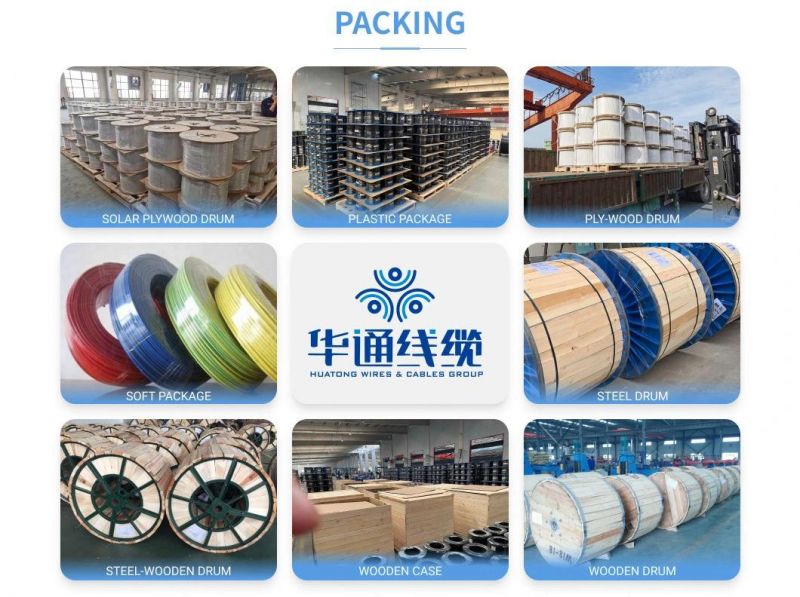

  • Transport Package：Soft Packing, 250 Feet Per Roll
  • Trademark：REN DA
  • Origin：China
  • HS Code：85444921
  • Production Capacity：5000km,Month

Description

Size (AWG)Number of StrandsGround  Wire
SizeInsulation
Thickness
(in)Allowable Ampacity
(Amps)*Outside Diameter
(in)Approximate Net Weight
(lbs/1000 ft)PVCNylon 14/2 G  Solid  14  0.015  0.004  15  0.170 x 0.390  56  12/2 G  Solid  12  0.015  0.004  20  0.160 x 0.450  82  10/2 G  Solid  10  0.020  0.004  30  0.210 x 0.493  123  8/2 G  7  10  0.030  0.005  40  0.290 x 0.580  185  6/2 G  7  10  0.030  0.005  55  0.330 x 0.695  256  14/3 G  Solid  14  0.015  0.004  15  0.170 x 0.450  74  12/3 G  Solid  12  0.015  0.004  20  0.345  107  10/3 G  Solid  10  0.020  0.004  30  0.430  165  8/3 G  7  10  0.030  0.005  40  0.555  251  6/3 G  7  10  0.030  0.005  55  0.612  352  4/3 G  7  8  0.040  0.006  70  0.820  565  2/3 G  7  8  0.040  0.006  95  0.945  841  **14/4 G & 14/2-2 G  Solid  14  0.015  0.004  12  0.345  90  **12/4 G & 12/2-2 G  Solid  12  0.015  0.004  16  0.385  132  **10/4 G  Solid  10  0.020  0.004  30  0.540  205
