Laser Optical Fiber/Optical Laser Fiber/ YAG Laser Optical Fiber
Shanghai Rui Tai Photoelectric Technology Co., Ltd.- Application：Communication, Art, Sensor, Medicine, Probe, Sensing
- Type：Single-Mode & Multi-Mode
- Connection Structure：All Models
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：>10000N
Base Info
- Model NO.：RAY-OF2018#
- Core：Single-Core,Multi-Core, Double-Core
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Raytek
- Sheath Material：Customized
- Type of Quartz Optical Fiber：Hcs,Silicon-Silicon
- Diameter of Single Fiber (GM)：125,200,230,400,500,600,800,etc
- Transmission Spec-on Initialization Time：200-2500nm
- Numerical Apertpulse Width Shrinkage (Dd：0.22, 0.37,etc
- Transport Package：1PCS Per Box
- Specification：custom as per demand
- Trademark：Raytek
- Origin：China
- HS Code：8536700000
- Production Capacity：100, 000, 0PCS Per Year
Description
Calibration fiber and othersRing Optical Fiber Spherical Optical Fiber Columnar Fiber
Applications:
Basic Technical Data:
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optical fiber products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
Applications:

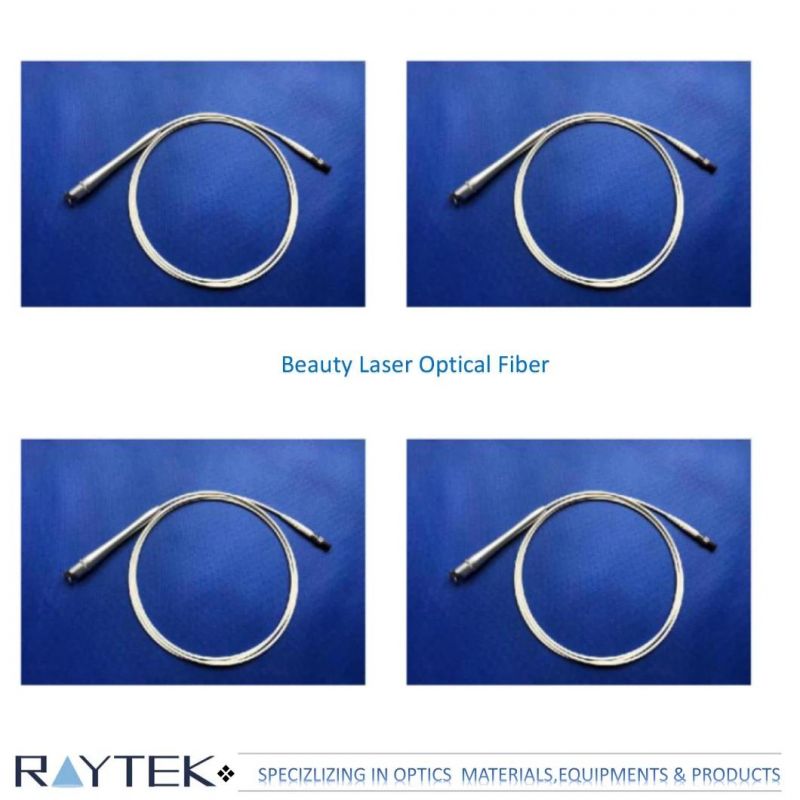

| 1). | Laser Optical Fiber | The fiber end-face has been precise polishing for avoiding damage when it is used for high powder laser transmission. The fiber with C. D.440um can be used transport continues laser below 30w. |

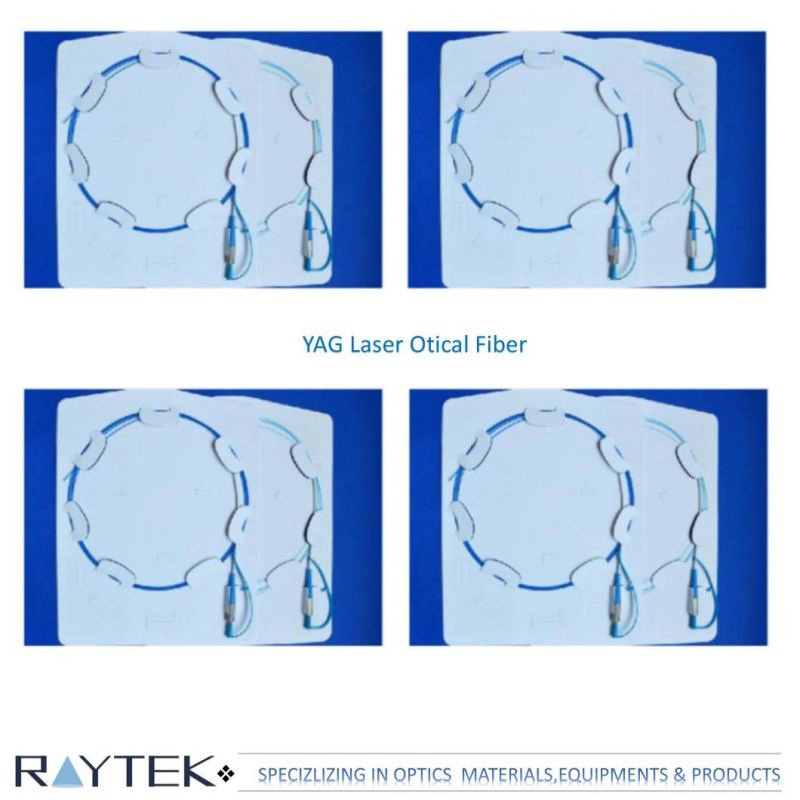

| 2). | Ho: YAG Laser Optical Fiber | Ho: YAG laser optical fiber is one of single core fiber product for transporting super high power laser. The fiber end-face has been precise polishing for avoiding damage when it is used for high power laser transmission. And the end structure of fiber has airgap to avoid bum up by Ho: YAG laser. The fiber with C.D55opm can be used transport continues laser below 120W. |

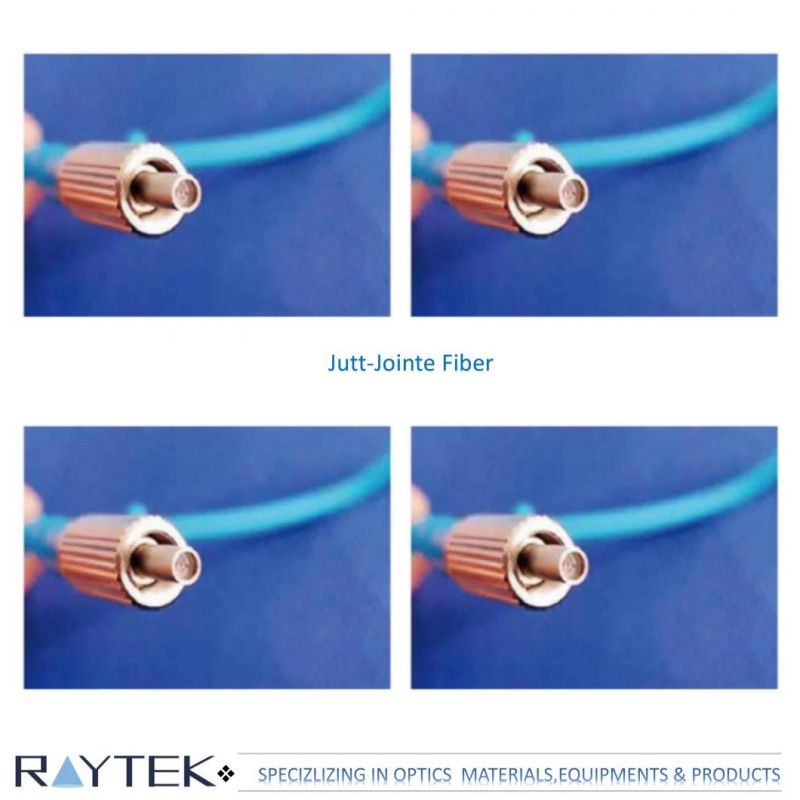

| 3). | Jutt-jointed Fiber | Jutt-jointed Fiber: 400 , 300, 4°° - 200.6oo - 300 The advantage is that it can be coupled with more lasers |
| 4). | Ring Optical Fiber | This is a kind of dispersion optical fiber, the end of the optical fiber is ring, the use oflight is no longer from the end of the direct injection, but form a ring light out» increase the light area, improve the use efficiency. |
| 5). | Spherical Optical Fiber | It is a kind of dispersion fiber. There is a spherical fiber port for changping the light from directly shoot up to emit to the surrounding. |
| 6). | Columnar Fiber | It is a kind of dispersion fiber, the internal transmission oflight can emit to the surrounding in a length of the fiber. The length arrangment of the luminous section can be made from icm to 10cm, and the diameter of the optical fiber can also be customized according to the requirements. |
Basic Technical Data:
| Type of quartz optical fiber | HCS/Silicon-silicon |
| Diameter of single fiber (gm) | 200/230/500 300/330/650 400/430/730 600/630/750 800/830/1040 275/300/330/420 365/400/430/550 365/400/430/750 550/600/630/750 550/600/630/1040 800/850/1020 |
| Length (m) | Customize |

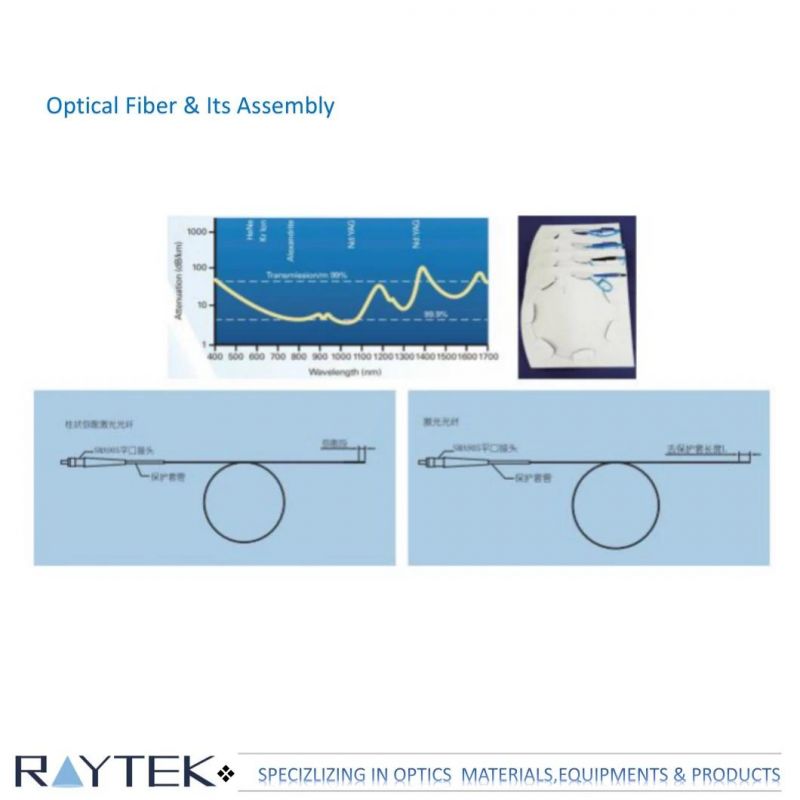

| Transmission Spectrum (nm) | 350-1700 400-2500 Customized |
| Numerical Aperture (NA.) | 0.20 0.37 0.50 Customized |
| Transmittance of Single Fiber | 90%(632.8nm) |
| Branch Structures | 1-in-1 out or other customized structures |
| End Structure | SMA905/SMA906/FC/ST and others SMA905/SMA906/FC/ST and other customize structure |
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optical fiber products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
