Polyester-Imide Enamelled Copper Wire (EIW/180)
Ningbo Jintian New Material Co., Ltd.- Insulation Level：H
- Certification：ISO9001, UL, RoHS
- Brand：Jintian
- Application：Transformer, Motor, Heating
- Conductor Material：Copper Wire
- Size：0.06-4.00
Base Info
- Model NO.：EIW,180Polyesterimide Enamelled Copper Wire
- Thermal：180
- Type：Insulated
- Conductor Type：Solid
- Insulation Material：Enameled
- Material Shape：Round Wire
- Sheath Material：Enameled
- Range of Application：Motor and Transformer
- Transport Package：STANDARD EXPORT PACKAGE WITH WOODEN PALLETS
- Specification：IEC60317-8, JIS C 3202.8, MW-30
- Trademark：Jintian
- Origin：NINGBO CHINA
- HS Code：85441100
- Production Capacity：130, 000 Tons,Year
Description
Standardcode level mm AWG IEC GB/T NEMA JIS H 180 0.06-4.0 7#-42# 60317-8 6109.5 MW30-C C3202

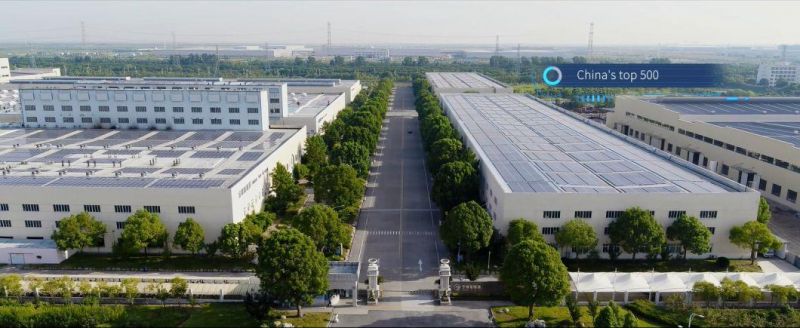

Ningbo Jintian Copper Group Co., Ltd. was established in 1986. It is a listed Chinese top 500 enterprise focusing on copper industry. We are the NO.1 in China in the field of copper products. The group covers an area of 1.8 million square meters, equivalent to 250 standard football fields. There are more than 6,000 employees. The main products of the group are copper wire, copper rod, copper tube, copper strip, enameled cooper wire, cathode copper, valve, water meter, magnetic material, etc., covering copper processing, high-tech materials, construction materials, non-ferrous metals Trade and other fields. In 2019, production and sales value reached 1.15 million tons. At the same time, the group has several overseas branches, such as Thailand, Germany, Japan, Vietnam and so on. The group is constantly working towards the goal of the world's top 500 enterprise, and going out in the direction of internationalization.
Jintian group is a leading enterprise in the copper processing industry. As a subsidiary of Jintian Group, Jintian New Material
company produces enameled copper wire from 1995, as an ISO9001, ISO18000, ISO14001,IATF 16949 company, We are one of Chinese leading manufacture of enameled copper wires. All of our products have UL& ROSH & REACH certificates. and we are in good position not only to supply you high quality products, but also the excellent after sales service. Well-trained engineers will offer you any technical support.
Ningbo Jintian Copper Group Co., Ltd. was established in 1986. It is a listed Chinese top 500 enterprise focusing on copper industry. We are the NO.1 in China in the field of copper products. The group covers an area of 1.8 million square meters, equivalent to 250 standard football fields. There are more than 6,000 employees. The main products of the group are copper wire, copper rod, copper tube, copper strip, enameled cooper wire, cathode copper, valve, water meter, magnetic material, etc., covering copper processing, high-tech materials, construction materials, non-ferrous metals Trade and other fields. In 2019, production and sales value reached 1.15 million tons. At the same time, the group has several overseas branches, such as Thailand, Germany, Japan, Vietnam and so on. The group is constantly working towards the goal of the world's top 500 enterprise, and going out in the direction of internationalization.
Jintian group is a leading enterprise in the copper processing industry. As a subsidiary of Jintian Group, Jintian New Material
company produces enameled copper wire from 1995, as an ISO9001, ISO18000, ISO14001,IATF 16949 company, We are one of Chinese leading manufacture of enameled copper wires. All of our products have UL& ROSH & REACH certificates. and we are in good position not only to supply you high quality products, but also the excellent after sales service. Well-trained engineers will offer you any technical support.
