72.5kv, 110kv, 132kv Pre-Molded Slip-on Cable Insulation Joint with Screen Interruption

United Electric Co., Ltd.
  • Type：Insulated
  • Application：Overhead, Underground
  • Conductor Material：Copper
  • Sheath Material：Copper Shell, FRP Shell,Heat Shrinkable Tube
  • Insulation Material：Rubber
  • Certification：ISO9001, RoHS, Kema, Enel

Base Info

  • Model NO.：YJJJI
  • Brand：Gca
  • Transport Package：Carton Box
  • Trademark：GCA
  • Origin：P. R. China
  • HS Code：8546900000
  • Production Capacity：1000000PCS,Year

Description

The pre-molded slip-on joint body  is entirely made of silicone rubber, this enables the secure and efficient connection of two polymeric-insulated cables (XLPE, EPR).
  1. Insulation and straight through joints suit for voltages from 52kV to 145kV.
  2. The tested and applied materials comply with all electrical, mechanical and thermal requirements for rebuilding the cable insulation.
  3. Applicable cross section: 240-1600 sq.mm cable.
  4. KEMA Inspection Type Test Report in accordance with IEC60840: 2011 is available.
  5. Cross-link Boxes is available

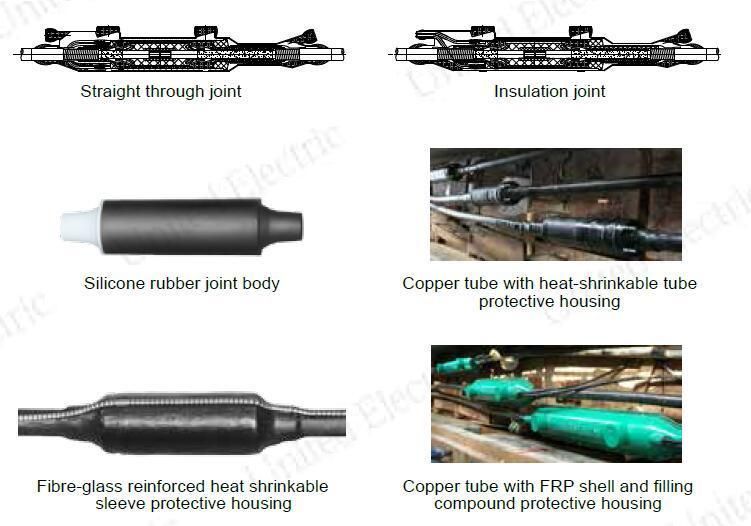

72.5kv, 110kv, 132kv Pre-Molded Slip-on Cable Insulation Joint with Screen Interruption

Features
 Max. operating voltage Um(kV)72.5126145StandardsIEC 60840IEC 60840IEC 60840Rated voltage U (kV)60 - 69110 - 115132 - 138Rated lightning impulse withstand voltage (BIL) (kV)325550650Partial discharge measurement (pC)< 5< 5< 5

Approved certificate

72.5kv, 110kv, 132kv Pre-Molded Slip-on Cable Insulation Joint with Screen Interruption

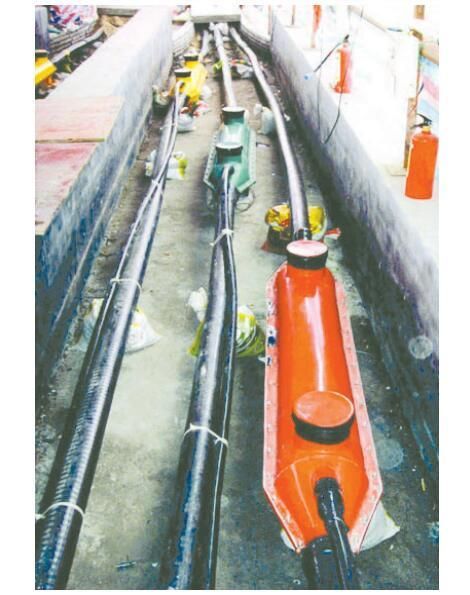

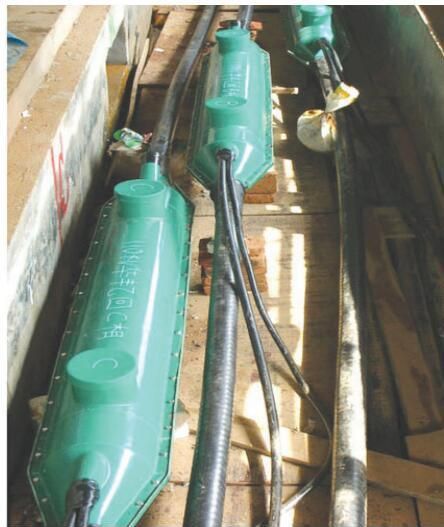

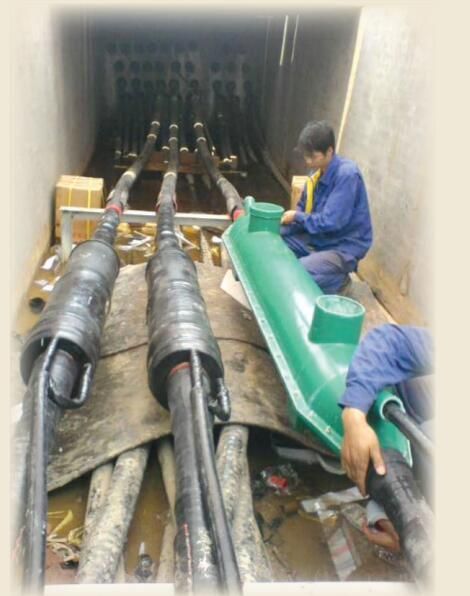

Application72.5kv, 110kv, 132kv Pre-Molded Slip-on Cable Insulation Joint with Screen Interruption72.5kv, 110kv, 132kv Pre-Molded Slip-on Cable Insulation Joint with Screen Interruption72.5kv, 110kv, 132kv Pre-Molded Slip-on Cable Insulation Joint with Screen Interruption72.5kv, 110kv, 132kv Pre-Molded Slip-on Cable Insulation Joint with Screen Interruption                      110kV insulation joint installed in Foshan
