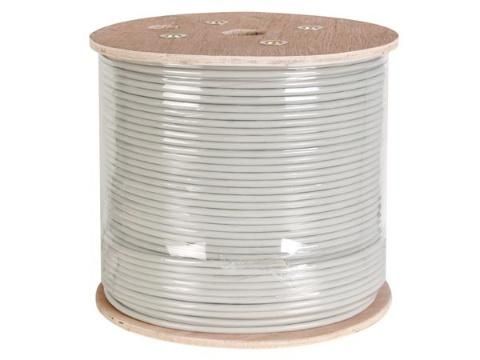

Factory Outlet LAN Cable 24AWG Bare Copper UTP Cat5e

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：cat5e
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, UL
  • Model：UTP,FTP,SFTP Cat5e
  • Brand：Risun or OEM
  • G.W.：10kgs
  • Indoor/Outdoor：PVC,PE,PVC+PE,PVC+PVC
  • Frame Returdant：Available
  • UV：Available
  • Waterproof：Available
  • Transport Package：305m,Pull Box, 2boxes,CTN
  • Specification：ETL, CE, RoHS, SGS, ISO9001
  • Trademark：Risun or OEM
  • Origin：China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Mont

Description

ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²
Electrical Properties:Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation67%
Technical Performance:          Attenuation         RL    Next        PS Next       (Mhz)          (dB/100M)        (dB)     (dB)      (dB/100m)       1MHz               2.0         20    65.3          63.5       4MHz               4.1         23    56.3          54.2       8MHz               5.8        24.5    52.4          50.5      10MHz               6.6         25    51.3          49.2      16MHz               8.2         25    49.3          47.4      20MHz               9.3         25    48.8          46.9      25MHz              10.4         24    45.3          43.4   31.25MHz              11.7         23    43.0          41.8     62.5MHz              17.0         21    39.2          37.2     100MHz              22.0         20    36.3          34.4

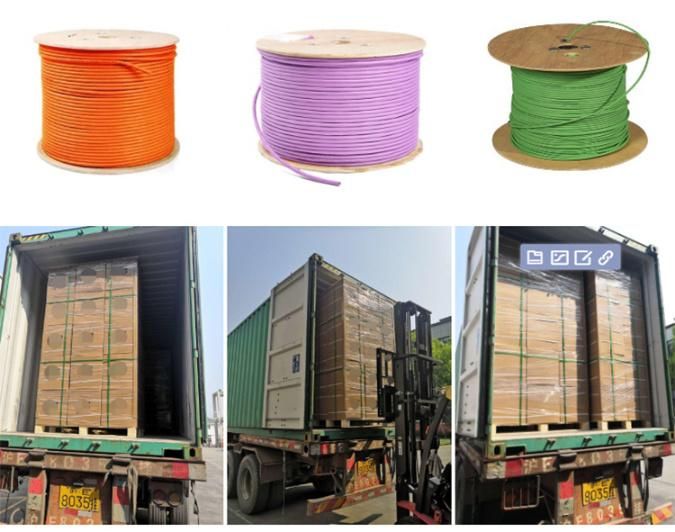

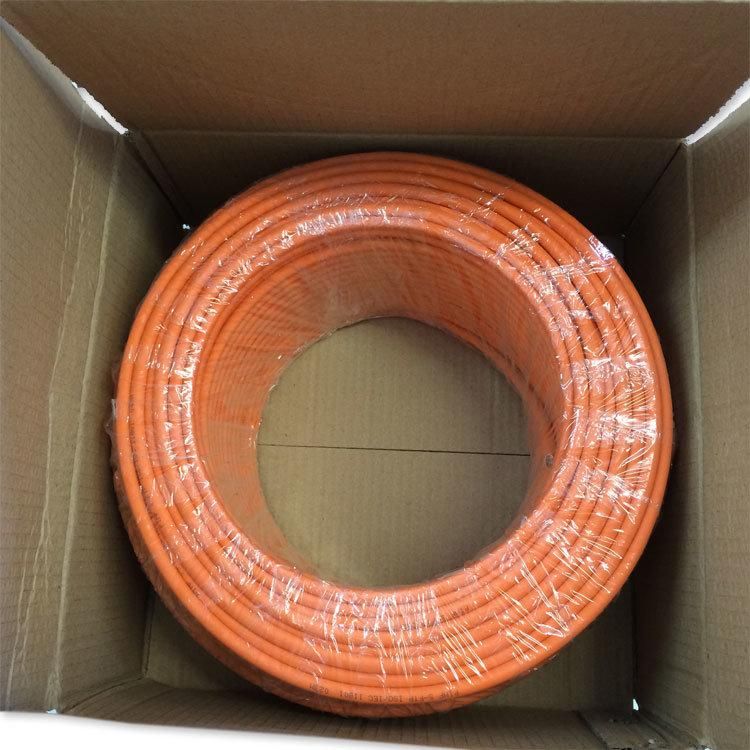

Packing:Factory Outlet LAN Cable 24AWG Bare Copper UTP Cat5eFactory Outlet LAN Cable 24AWG Bare Copper UTP Cat5eFactory Outlet LAN Cable 24AWG Bare Copper UTP Cat5eFactory Outlet LAN Cable 24AWG Bare Copper UTP Cat5eFactory Outlet LAN Cable 24AWG Bare Copper UTP Cat5eRISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.

Production line:
Factory Outlet LAN Cable 24AWG Bare Copper UTP Cat5e

RISUN has two complete production line. 10 thousands box of UTP Cat5e cable per month.


                                                        WELCOME TO RISUN!!!



Our Tenet: If we can not be the best, we be the most suitable.
