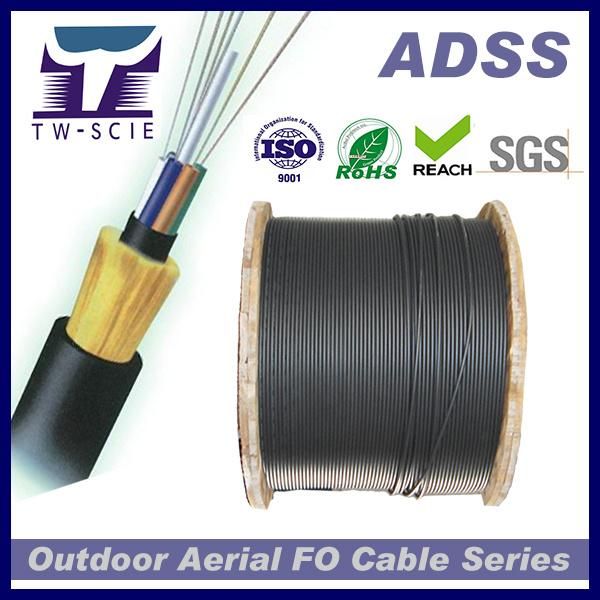

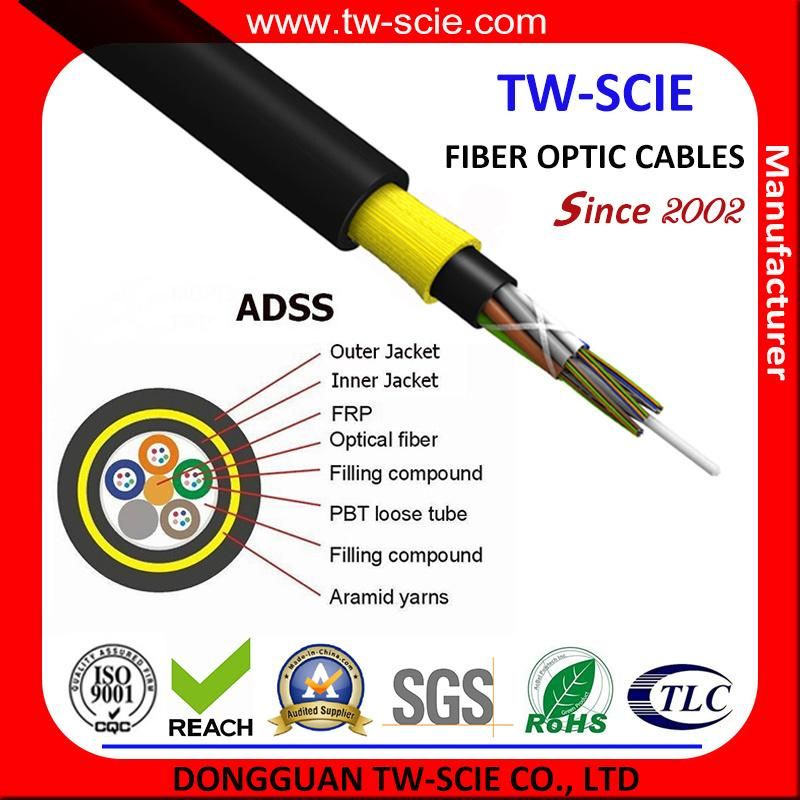

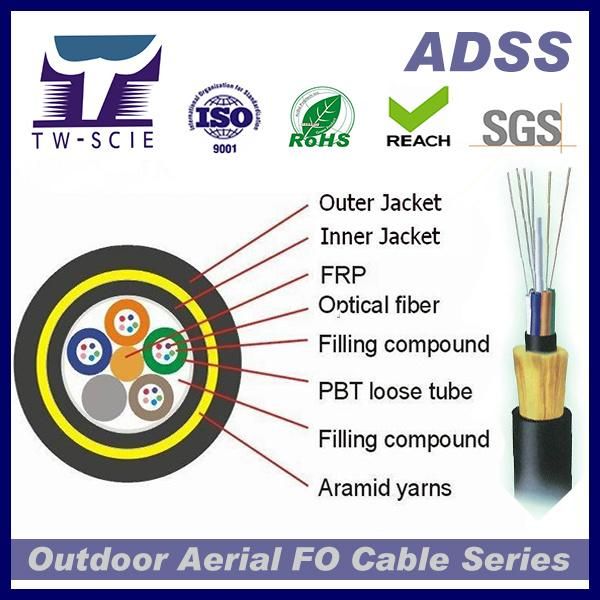

ADSS All Dielectic Self Supported Fiber Optic Cable-G
DONGGUAN TW-SCIE CO., LTD.- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：Single More or Multimode
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：adss
- Core：Double Core
- Certification：RoHS, ISO9001, Reach
- Brand：OEM or Tw-Scie
- Sheath Material：LSZH,HDPE,MDPE
- Jacket Material：Black PE
- Strengthen Member：Aramid Yarn
- Loose Tube：Multi Loose Tubes
- Transport Package：Wooden Drum
- Specification：ISO, ROHS, REACH, SGS
- Trademark：TW-SCIE
- Origin：China (Mainland) Guangdong Dongguan
- HS Code：8544700000
- Production Capacity：200km,Day
Description
ADSS Fiber Optic Cable Technology Specification:Ref.outer diameter
(mm) Ref.weight
kg/km Weight Ref.daily max.working tension
(kN)
Max allowable working tension
(kN) Break strength
(kN) Strength member CSA
(mm2) Modulus of elasticity kN/
(mm2) Heat expansion coefficient ×10-6 /k PE sheath
AT sheath 12.5 125 136 1.5 4 10 4.6 7.6 1.8 13 132 142 2.25 6 15 7.6 8.3 1.5 13.3 137 148 3.0 8 20 10.35 9.45 1.3 13.6 145 156 3.6 10 24 13.8 10.8 1.2 13.8 147 159 4.5 12 30 14.3 11.8 1.0 14.5 164 177 5.4 15 36 18.4 13.6 0.9 14.9 171 185 6.75 18 45 22 16.4 0.6 15.1 179 193 7.95 22 53 26.4 18 0.3 15.5 190 204 9.0 26 60 32.2 19.1 0.1 15.6 194 208 10.5 28 70 33 19.6 0.1 16.3 211 226 12.75 34 85 40 20.1 -0.4 16.8 226 242 15.45 41 103 48 24 -0.5 17.2 236 253 16.2 45 108 51 25.1 -0.8 17.9 249 266 18 50 120 58.8 26.1 -0.8
ADSS optic fiber cable Optical Characteristics: :Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber A1b:62.5/125 Singlemode G.652(A,B,C) B1.1:Conventional fiber G.652D B2: Zero dispersion shifted G.655 B1.2 :Cut-off wavelength shifted G.657(A1,A2 ,B3) B4: Main technical data for positive dispersion shifted single-mode fiber
Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
