Risun Factory High Quality Fire Alarm Cable Unshielded

Hangzhou Risun Cable Co., Ltd.
  • Color：as Request
  • Insulaton：Flame Retardant PVC
  • Sheath：Flame Retardant PVC
  • Cores：2-40
  • Nom. Od：1.3mm
  • Jacket Thickness：0.45mm

Base Info

  • Model NO.：alarm cable unshielded
  • Outer Jacket Diameter：5.2mm
  • Inner Conductor：23AWG
  • Transport Package：305m,Pull Box, 2boxes,CTN
  • Specification：CPR,ETL,CE,SGS,RoHS,ISO9001
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Mont

Description

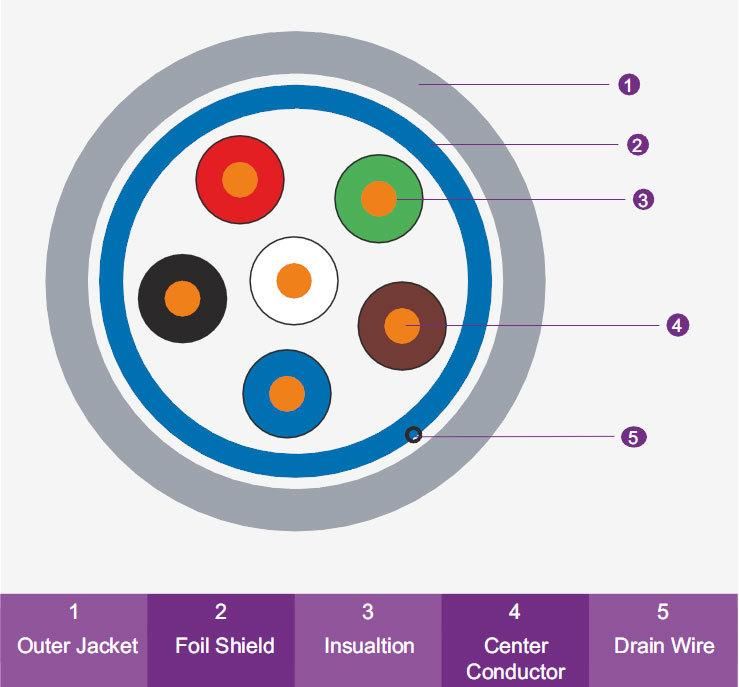

ConductorShieldingOuter  JacketBare CopperAluminium Foil-Polyester TapeLSZHInsulationDrain WireJacket ColorPE(High Density Polyethylene) Tinned CopperGrey ,White or according customer's requests12AWG / 16AWG / 18AWG / 22AWG Stranded Shielded 2 / 4 / 6 / 8 / 12 / 20 Cores Security Alarm Cable

12AWG / 16AWG / 18AWG / 22AWG Stranded Shielded 2 / 4 / 6 / 8 / 12 / 20 Cores Security Alarm Cable

Construction& Physical Characteristics
CharacteristicValue
No.of Conductor6
Conductor Size22AWG (0.64mm)
Insulation Diameter1.3  mm
Drain Wire Size7*0.20 mm
Jacket Thickness0.45  mm
Outer Jacket Diameter5.2mm
Max. Recommended Pulling Tension242N

Electrical   Characteristics
CharacteristicUnitValue
Nom. Conductor DCRΩ/Km52.8
Nom. Resistance ShieldΩ/Km79
Nom. Capacitance conductor to conductorpF/m65
Maximum Operating VoltageVrms300
Mechanical Characteristics
CharacteristicValue
Test MaterialLSZH
Before Tensile Strength (Mpa)≥ 13.8
Aging Elongation (%)≥ 100
After Tensile Strength (Mpa)≥ 10.35
Aging Elongation (%)≥ 75
Cold Bend (-20±°C x 4 hrs)No Crack

Insulation Colour Code
Individual PairColour
Core 1Black
Core 2Red
Core 3White
Core 4Green
Core 5Brown
Core 6Blue
 12AWG / 16AWG / 18AWG / 22AWG Stranded Shielded 2 / 4 / 6 / 8 / 12 / 20 Cores Security Alarm Cable

Application:

12AWG / 16AWG / 18AWG / 22AWG Stranded Shielded 2 / 4 / 6 / 8 / 12 / 20 Cores Security Alarm CableCompany Introduction

12AWG / 16AWG / 18AWG / 22AWG Stranded Shielded 2 / 4 / 6 / 8 / 12 / 20 Cores Security Alarm Cable

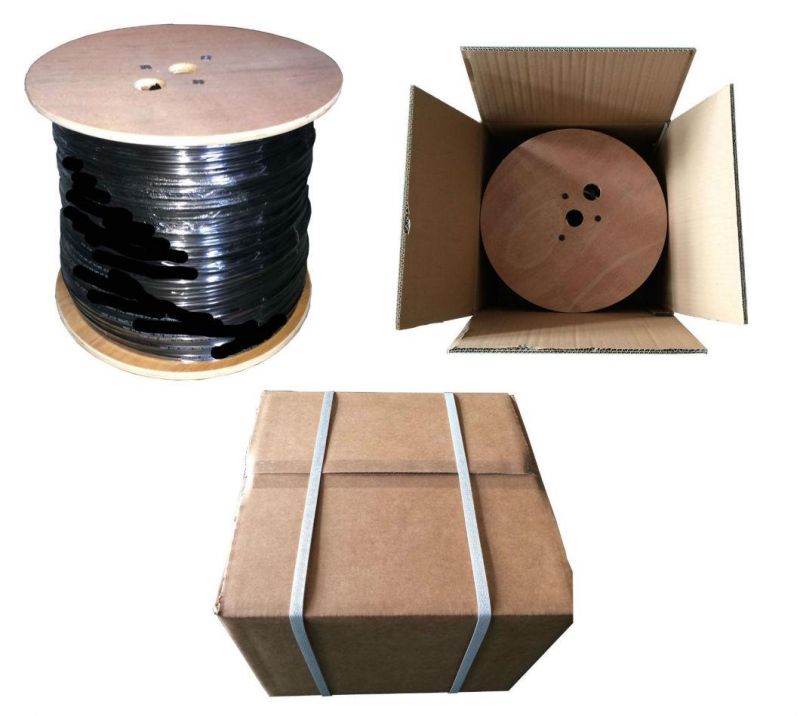

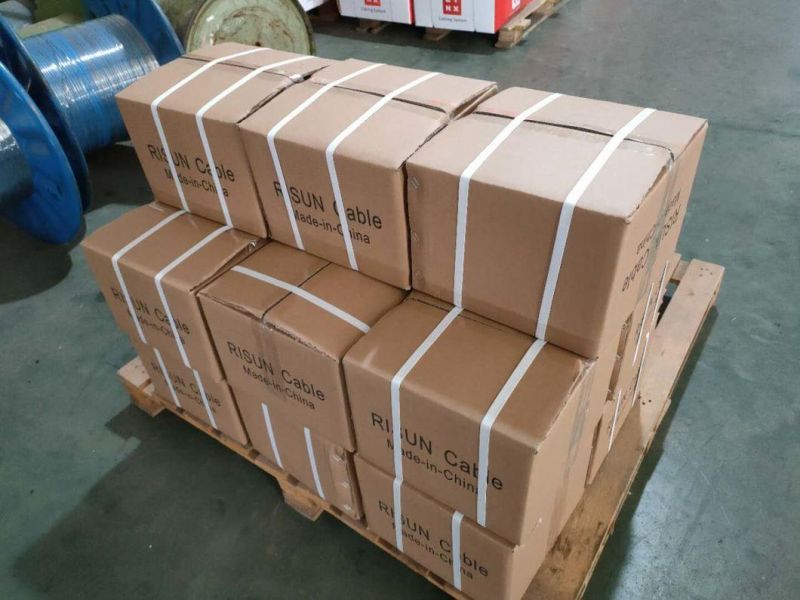

Packing:
12AWG / 16AWG / 18AWG / 22AWG Stranded Shielded 2 / 4 / 6 / 8 / 12 / 20 Cores Security Alarm Cable



12AWG / 16AWG / 18AWG / 22AWG Stranded Shielded 2 / 4 / 6 / 8 / 12 / 20 Cores Security Alarm Cable

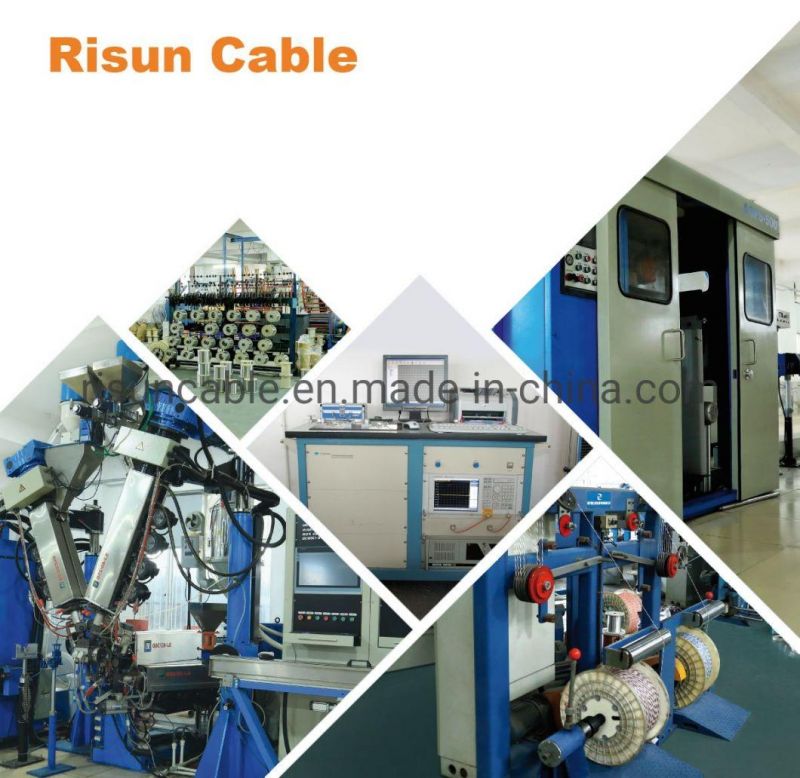

Production line:
12AWG / 16AWG / 18AWG / 22AWG Stranded Shielded 2 / 4 / 6 / 8 / 12 / 20 Cores Security Alarm Cable


FAQ

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.


Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color


Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.

Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .
