High Quality Overhead Bare AAC Conductor / All Aluminum Conductor
People's Cable Group Co., Ltd.- Type:Bare
- Conductor Type:Stranded
- Application:Overhead
- Conductor Material:Aluminum
- Sheath Material:Bare
- Insulation Material:Bare
Base Info
- Model NO.:AAC conductor
- Material Shape:Round Wire
- Range of Application:Overhead
- Certification:ISO9001
- Brand:Rmjt
- Name:ASTM B231 All Aluminium Strand AAC Conductor
- Standard:ASTM B231 BS215
- Voltage:High Voltage
- Material:All Aluminium Strand
- Delivery Time:15 Days
- Yield:30tons,Day
- Payment:20%T,T Advanced
- Aluminum:Hard Drawn Aluminum 1350-H19
- Purpose:Electrical Transmission Line
- Transport Package:Wooden Drum
- Specification:mcm AWG mm2
- Trademark:RMJT
- Origin:China
- HS Code:7614900000
- Production Capacity:30 Ton,Day
Description
Code NameArea Stranding and wire diameter Approx. Overall diameter Weight Nominal breaking load Nom. DC resistance at 20 deg. Nominal Actual mm2 mm2 mm mm kg/km kN ohm/km MIDGE 22 23.33 7/2.06 6.2 64 3.99 1.227 APHIS 25 26.4 3/3.35 7.2 73 4.11 1.081 GNAT 25 26.8 7/2.21 6.6 73 4.59 1.066 WEEVIL 30 31.6 3/3.66 7.9 86 4.86 0.9082 MOSQUITO 35 37.0 7/2.59 7.8 101 6.03 0.7762 LADYBIRD 40 42.8 7/2.79 8.4 117 6.87 0.6689 ANT 50 52.83 7/3.10 9.3 145 8.28 0.5419 FLY 60 63.55 7/3.40 10.2 174 9.90 0.4505 BLUEBOTTLE 70 73.7 7/3.66 11.0 202 11.34 0.3881 EARWING 75 78.5 7/3.78 11.4 215 11.94 0.3644 GRASSHOPPER 80 84.1 7/3.91 11.7 230 12.78 0.3406 CLEGG 90 95.6 7/4.17 12.5 262 14.53 0.2995 WASP 100 106.0 7/4.39 13.2 290 16.00 0.2702 BEETLE 100 106.6 19/2.67 13.4 293 17.42 0.2704 BEE 125 132.0 7/4.90 14.7 361 19.94 0.2169 CRICKET 150 157.9 7/5.36 16.1 432 23.85 0.1813 HORNET 150 157.6 19/3.25 16.3 434 27.70 0.1825 CATERPILLAR 175 186.0 19/3.53 17.7 512 28.63 0.1547 CHAFER 200 213.2 19/3.78 18.9 587 32.40 0.1349 SPIDER 225 236.9 19/3.99 20.0 652 36.01 0.1211 COCKROACH 250 265.7 19/4.22 21.1 731 40.40 0.1083 BUTTERFLY 300 322.7 19/4.65 23.3 888 48.70 0.08916 MOTH 350 373.2 19/5.00 25.0 1027 56.37 0.07711 DRONE 350 373.3 37/3.58 25.1 1029 57.45 0.07741 LOCUST 400 428.5 19/5.36 26.8 1179 64.73 0.06710 CENTIPEDE 400 415.2 37/3.78 26.5 1145 63.10 0.06944 MAYBUG 450 486.9 37/4.09 28.6 1342 74.01 0.05931 SCORPION 500 529.5 37/4.27 29.9 1460 79.98 0.05441 CICADA 600 628.6 37/4.65 32.6 1733 94.95 0.04588 TARANTULA 750 794.8 37/5.23 36.6 2191 120.10 0.03627

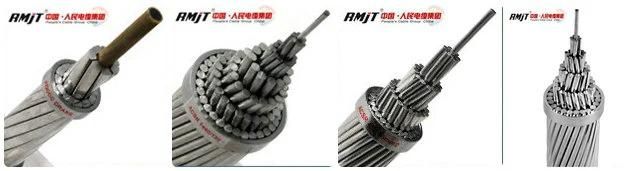

Construction:
1) Conductor: 1350 Aluminum
2) Sectional area: 10-1000mm2
3) No. of strands (al/st): 7, 19, 37, 61, 91
4) Min. bending radius: 40 times cable radius

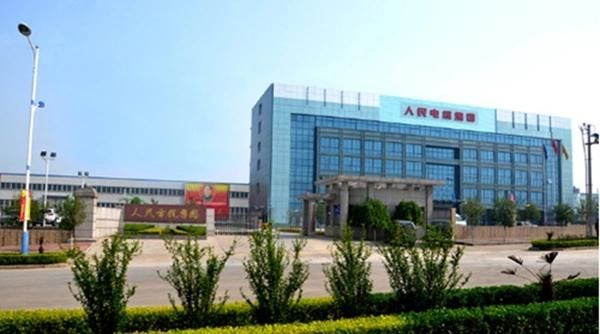

About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.

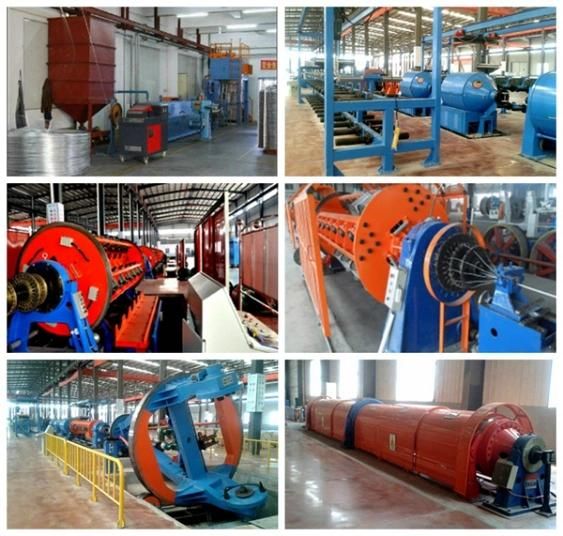

Production process:
ACSR conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.

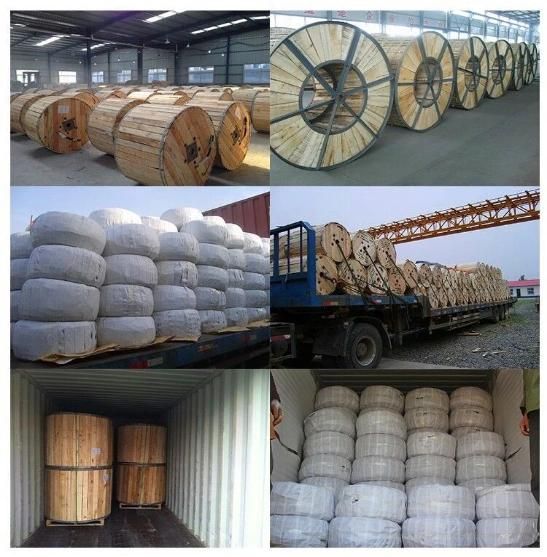

PACKING:
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
Construction:
1) Conductor: 1350 Aluminum
2) Sectional area: 10-1000mm2
3) No. of strands (al/st): 7, 19, 37, 61, 91
4) Min. bending radius: 40 times cable radius
About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Production process:
ACSR conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
PACKING:
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
