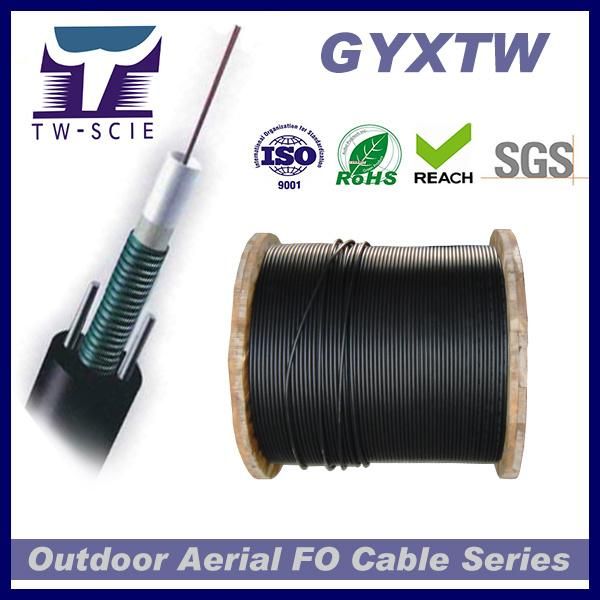

Central Loose Tube Sm GYXTW Fiber Optic Cable
DONGGUAN TW-SCIE CO., LTD.- Type:Single-mode Fiber
- Connection Structure:Fiber Optic Cable
- Material Shape:Round Wire
- Allowed Lateral Pressure:100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength:1000N<10000N
- Core:Multicore
Base Info
- Model NO.:GYXTW
- Certification:RoHS, CE, ISO9001, VDE, CCC
- Brand:OEM

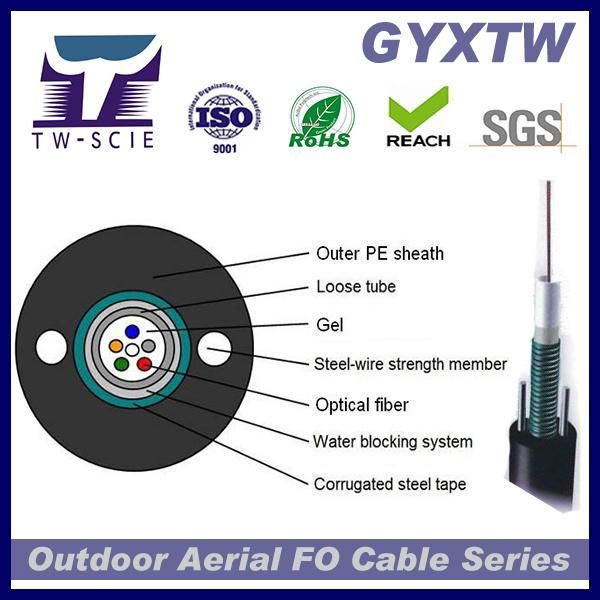

- Sheath Material:PE
- Loose Tube Material:PBT
- Outer Sheath Color:Black
- Color of Fiber /Loose Tube:Blue, Orange, Green, Brown, Grey, White
- Installation Style:Duct & Aerial
- Armour Material:Corrugated Steel Tape
- Stranding Member:Steel Wire or FRP
- Waterblocking Material:Water Blocking Tape or Filling Compound
- Outer Sheath Material:MDPE , HDPE , LSZH
- Transport Package:Wooden Drum
- Specification:ROHS, CE
- Trademark:TW-SCIE or OEM
- Origin:Guangdong Dongguan
- HS Code:854470000
- Production Capacity:200km Per Day
Description
Cable Performance:
Item | Testing | Test Method | Test Result |
1 | Tensile strength IEC 60794-1-E1 | Long-term:1500N Short-tern: 600N Cable length: ≥50m | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
2 | Impact IEC 60794-1-E4 | Height: 1m Weight: 1kg Impact spot: ≥5 Impact cycle: at lease 3 cycle per spot | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
3 | Repeated Bending IEC 60794-1-E6 | Bending diameter: 25X the cable outer diameter Applied load: 25kg Bending cycle: 30times Bending speed: 1 cycle per 2s | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
4 | Torsion IEC 60794-1-E7 | Torsion length: 1m Applied load: 25kg Torsion angle: ±90 or +180 Twist cycle: ≥10 times | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
5 | Water Penetration IEC 60794-1-F5B | Water height: 1m Cable length: 3m Keeping time: 24hours | No water leaked from the opposite end of cable |
6 | Temperature IEC 60794-1-F1 | Temperature step:+20°C->-40°C°C >+70°C->+20°C Keeping time: 24hours per each step Cycle:2times | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
7 | Compound flow IEC 60794-1-E14 | Sample length: 30cm Temperature: 70ºC±2ºC Keeping time: 24hours | No compound flow |
8 | Sheath high voltage test | On line test DC 12t kV(t-sheath thickness mm) | No sheath broken down |
More Pictures:
