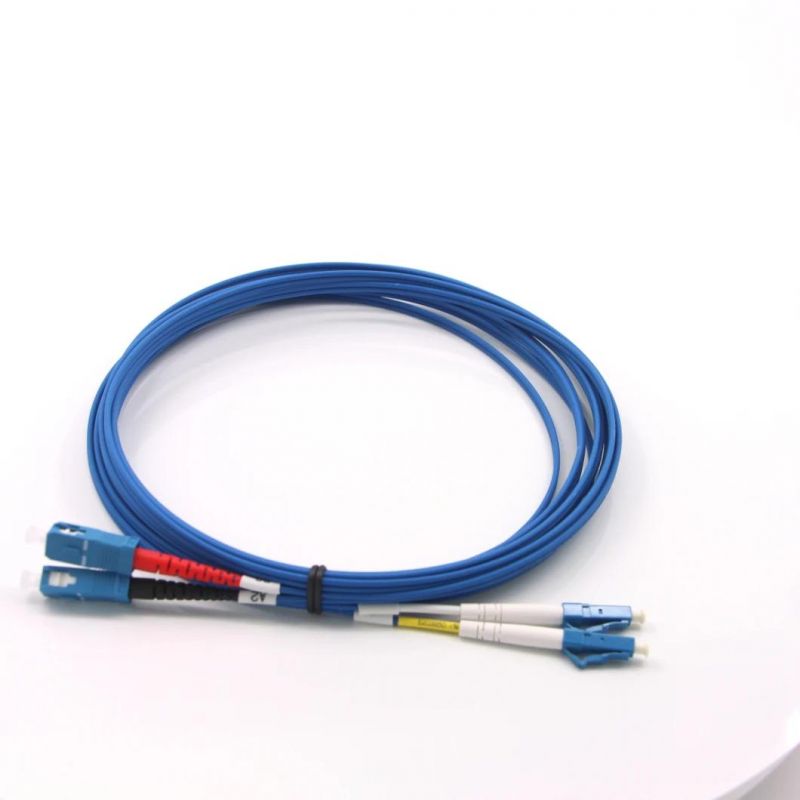

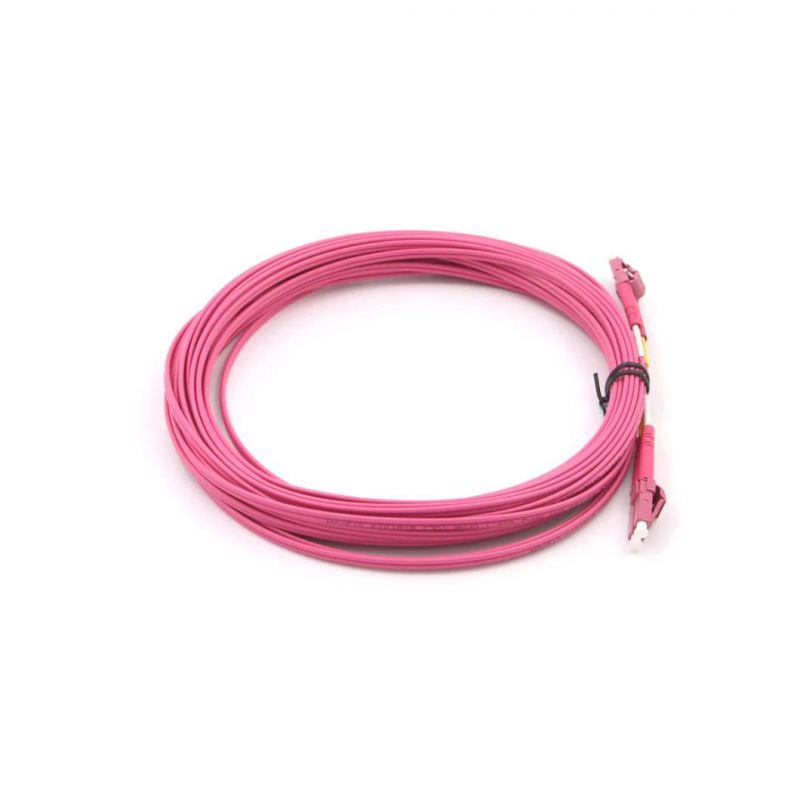

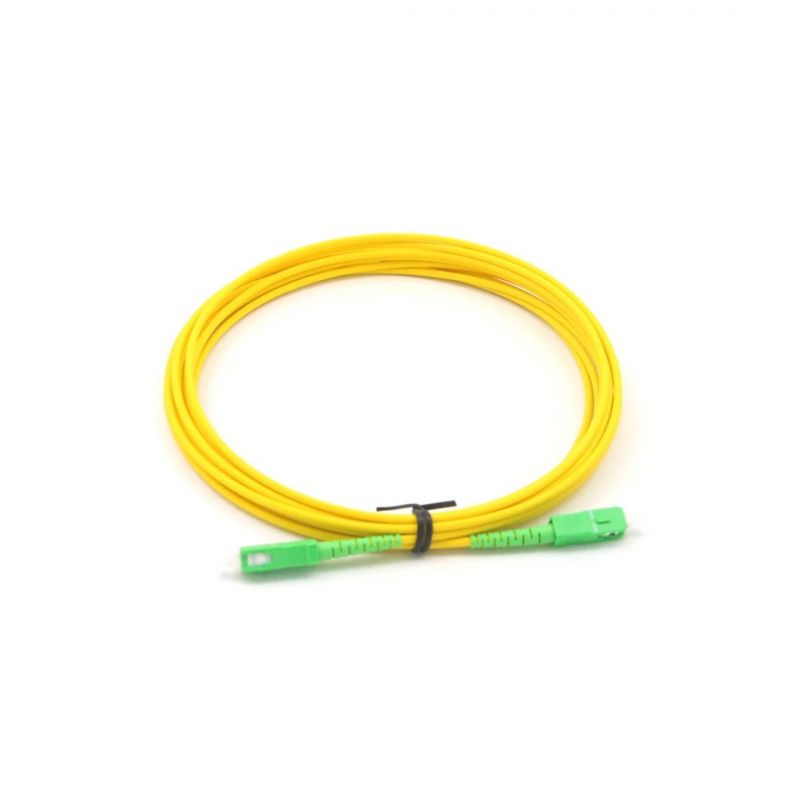

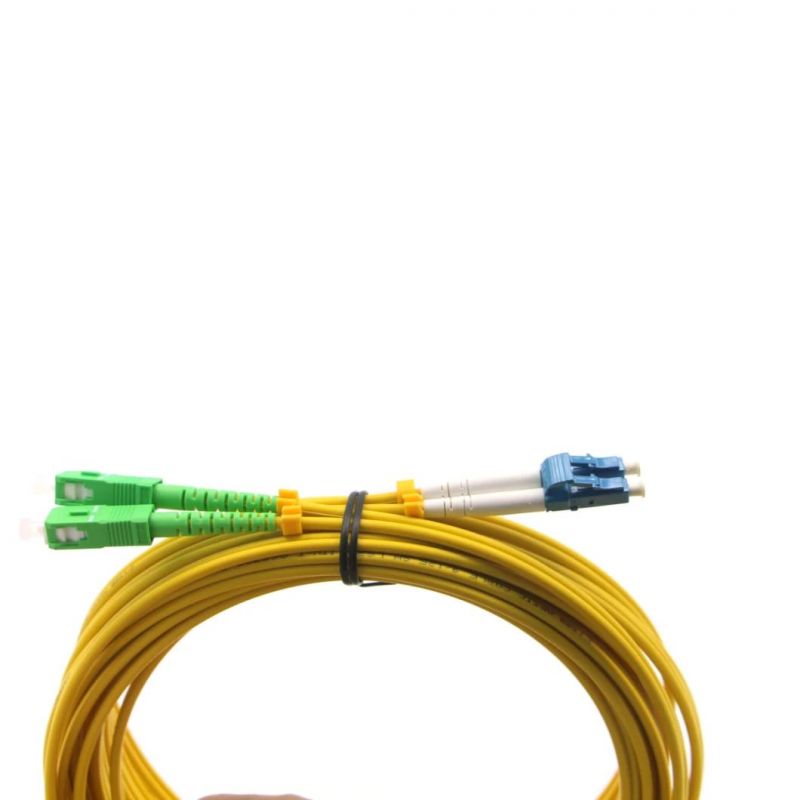

Fiber Optical Duplex Patch Cords with Different Connectors

Shenzhen KOC Communication Co., Ltd.
  • Application：Communication
  • Type：Single-mode Fiber
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
  • Allowed Tensile Strength：100N<1000N
  • Certification：RoHS, CE, ISO9001

Base Info

  • Model NO.：lc sc st fc mu
  • Brand：OEM
  • Cable Diameter Szie：0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
  • Cable Jacket Color：Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
  • Cable Jacket Material：LSZH,PVC, Ofnr, Ofnp, PE, Rised
  • Connector Housing Color：Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
  • Cable Length：1m, 2m, or Customization
  • Label：Sticker, Paper
  • Transport Package：Zipper Bag, Carton Box
  • Specification：SGS; RoHs
  • Trademark：koc
  • Origin：Made in Shenzhen
  • HS Code：85447000
  • Production Capacity：500000 PCS,Month

Description

 Single modeMultimodeInsertion LossTypical≤0.2dB, Maximum≤0.3dB≤0.25dBReturn Loss≥50 dB (PC)
≥60 dB (APC)≥30 dBRepeatability≤0.1Durability≤0.2 dB typical change, 1000 matingsInterchangeability≤0.2dBTensile strength>70NOperating Temperature-40 to + 85°CFiber Optical Duplex Patch Cords with Different ConnectorsFiber Optical Duplex Patch Cords with Different ConnectorsFiber Optical Duplex Patch Cords with Different Connectors

 Fiber Optical Duplex Patch Cords with Different ConnectorsFiber Optical Duplex Patch Cords with Different ConnectorsFiber Optical Duplex Patch Cords with Different Connectors


ORDERING OPTIONSConnector ColorBoot (cable) SizeBoot ColorFiber TypeCable numberApplicationLengthBeige0.9mmBeige9/125μm (SM)SimplexPCCustomizedBlue2.0mmBlack50/125μm(MM)DuplexAPC Green3.0mmBlue62.5/125μm(MM)Fan-out (4f)    Green Fan-out (6f)    Gray Fan-out (8f)    Red Fan-out (12f)    White Fan-out (24f)
   Note: The price range is for Fiber Optic Jumper LC-LC duplex OM4 LSZH  3 meters
