Hot Sale! 4core Underground Cable Steel Wire Armoured Power Cable
Shanghai QIFAN Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：YJV32 YJV22
- Wire Core Material：Pure Annealed Soft Copper
- Certification：ISO, CE, RoHS, UL, VDE
- Model：Yjv32 Yjv22
- Brand：Qifan
- Standard：IEC 60502-1 BS 5467
- Flame Resistant：IEC 60332
- Staff：3048
- QC：206

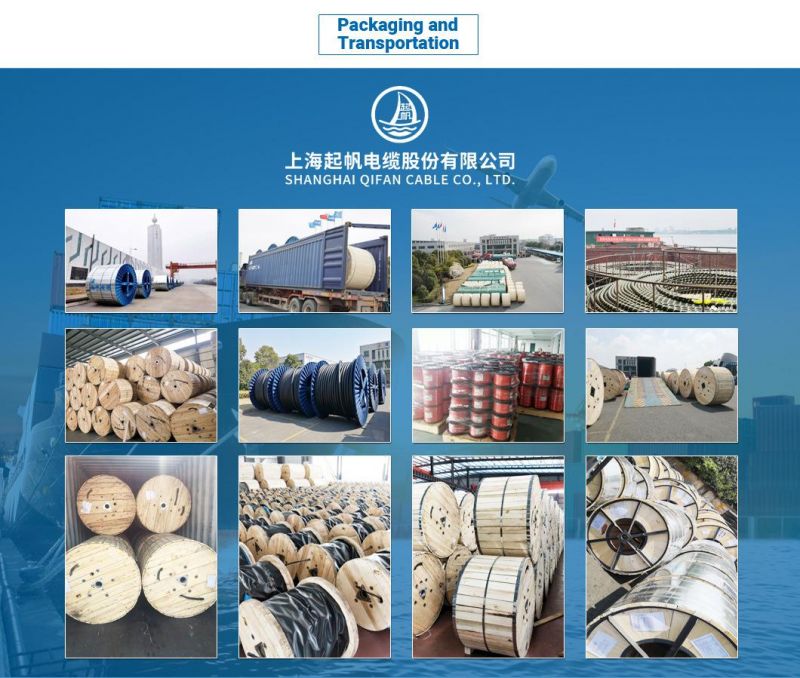

- Transport Package：Drum
- Specification：1.5-800mm2
- Trademark：Qifan
- Origin：China
- HS Code：8544492100
- Production Capacity：20000km,Month
Description
Weight of CableDiameter of conductor mm Thickness of XLPE mm Diameter of conductor mm Thickness of XLPE mm Thickness mm Diameter of wire
mm Thickness of Sheath mm Complete Diameter mm YJV32(CU)
kg/km YJLV32(AL)
kg/km 4*1.5 1.38 0.7 - - 1 0.8 1.8 14.3 391.3 353.7 4*2.5 1.78 0.7 - - 1 0.8 1.8 15.3 459.7 397.2 4*4 2.25 0.7 - - 1 0.8 1.8 16.4 551.7 451.8 4*6 2.76 0.7 - - 1 1.25 1.8 18.6 800.7 650.4 4*10 4 0.7 - - 1 1.25 1.8 21.6 1089.3 837.6 4*16 5.1 0.7 - - 1 1.6 1.8 24.9 1543 1151.1 4*25 6.3 0.9 - - 1 1.6 1.8 28.8 2094.7 1481.8 4*35 6.2 0.9 - - 1 1.6 1.9 27 2386 1531.9 4*50 7.6 1 - - 1 1.6 2 30.7 3014.1 1858.5 4*70 8.8 1.1 - - 1.2 2 2.2 35.4 4298.9 2603.3 4*95 10.5 1.1 - - 1.2 2 2.3 39.3 5480.4 3149.3 4*120 11.2 1.2 - - 1.4 2.5 2.5 43.1 6972.2 4033.1 4*150 13 1.4 - - 1.4 2.5 2.6 48.2 8452.2 4784.6 4*185 14.5 1.6 - - 1.6 2.5 2.8 53.1 10276.8 5704.9 4*240 16.2 1.7 - - 1.6 2.5 3 57.7 12650.1 6721.6 4*300 19 1.8 - - 1.6 2.5 3.2 64.7 15397.1 7986.5 5*1.5 1.38 0.7 1.38 0.7 1 0.8 1.8 15.1 431 384 5*2.5 1.78 0.7 1.78 0.7 1 0.8 1.8 16.2 518.9 440.7 5*4 2.25 0.7 2.25 0.7 1 1.25 1.8 18.4 762.6 637.7 5*6 2.76 0.7 2.76 0.7 1 1.25 1.8 19.7 909.8 722 5*10 4 0.7 4 0.7 1 1.25 1.8 23.1 1245.8 931.2 5*16 5.1 0.7 5.1 0.7 1 1.6 1.8 26.8 1797.5 1307.6 5*25 6.3 0.9 6.3 0.9 1 1.6 1.8 31.1 2444.2 1678 5*35 7 0.9 7 0.9 1 1.6 1.9 33.2 2988.7 1921.1 5*50 8.2 1 8.2 1 1.2 2 2.1 38.5 4106.2 2661.7 5*70 5.1 1.1 10 1.1 1.2 2 2.3 38.2 5129 3009.5 5*95 6.2 1.1 11.6 1.1 1.4 2.5 2.4 43.6 6956.4 4042.5 5*120 6.6 1.2 13 1.2 1.4 2.5 2.6 46.8 8317.7 4643.9 5*150 7.6 1.4 14.6 1.4 1.6 2.5 2.8 52.4 10163.5 5579 5*185 8.5 1.6 16.2 1.6 1.6 2.5 3 57.4 12320.8 6605.8 5*240 9.6 1.7 18.4 1.7 1.6 2.5 3.2 62.8 15266.7 7856.1 5*300 10.8 1.8 20.6 1.8 1.8 3.15 3.4 70.1 19366.5 10103.3 3*2.5+1*1.5 1.78 0.7 1.38 0.7 1 0.8 1.8 15.1 442.9 386.6 3*4+1*2.5 2.25 0.7 1.78 0.7 1 0.8 1.8 16.1 527.8 437.3 3*6+1*4 2.76 0.7 2.25 0.7 1 1.25 1.8 18.3 776.2 638.6 3*10+1*6 4 0.7 2.76 0.7 1 1.25 1.8 20.8 1014 787.7 3*16+1*10 5.1 0.7 4 0.7 1 1.25 1.8 23.6 1322.2 965.4 3*25+1*16 6.3 0.9 5.1 0.7 1 1.6 1.8 27.8 1953.6 1395.9 3*35+1*16 6.7 0.9 5.1 0.7 1 1.6 1.8 28.8 2295.1 1556.6 3*50+1*25 7.4 1 6.3 0.9 1 1.6 1.9 31.1 2847.6 1827.7 3*70+1*35 8.7 1.1 7 0.9 1.2 2 2.1 36.2 4015.5 2530.3 3*95+1*50 10.5 1.1 8.2 1 1.2 2 2.2 40.5 5076.7 3039.4 3*120+1*70 11.6 1.2 10 1.1 1.2 2 2.4 43.9 6227.1 3598.8 3*150+1*70 13 1.4 10 1.1 1.4 2.5 2.5 49.7 7816.5 4641.9 3*185+1*95 14.5 1.6 11.6 1.1 1.4 2.5 2.7 54.5 9503.8 5492.1 3*240+1*120 16.5 1.7 13 1.2 1.6 2.5 2.9 60.4 11746.4 6565.3 3*300+1*150 18.8 1.8 14.6 1.4 1.6 2.5 3 66.3 14126 7651.2 3*2.5+2*1.5 1.78 0.7 1.38 0.7 1 0.8 1.8 15.8 484.5 418.8 3*4+2*2.5 2.25 0.7 1.78 0.7 1 1.25 1.8 17.8 702.1 596 3*6+2*4 2.76 0.7 2.25 0.7 1 1.25 1.8 19.2 853.3 690.7 3*10+2*6 4 0.7 2.76 0.7 1 1.25 1.8 21.7 1110 846.1 3*16+2*10 5.1 0.7 4 0.7 1 1.6 1.8 25.6 1635.8 1216.1 3*25+2*16 6.3 0.9 5.1 0.7 1 1.6 1.8 29.3 2182.1 1526.4 3*35+2*16 6.5 0.9 5.1 0.7 1 1.6 1.8 29.1 2453.2 1616.7 3*50+2*25 7.4 1 6.3 0.9 1 1.6 2 32.2 3125.6 1952.5 3*70+2*35 9 1.1 7 0.9 1.2 2 2.1 37.9 4482.4 2783.7 3*95+2*50 10.7 1.1 8.2 1 1.2 2 2.3 42.4 5679.2 3353.1 3*120+2*70 12 1.2 10 1.1 1.4 2.5 2.5 47.8 7499.7 4447.5 3*150+2*70 13.4 1.4 10 1.1 1.4 2.5 2.6 52.3 8649.7 5051.2 3*185+2*95 15 1.6 11.6 1.1 1.6 2.5 2.8 57.9 10681.1 6086.6 3*240+2*120 17 1.7 13 1.2 1.6 2.5 3 63.6 13074.7 7158.8 3*300+2*150 19.2 1.8 14.6 1.4 1.6 2.5 3.2 69.7 15769.3 8377.6
Note:
Galvanized Steel Wires applied helically over the bedding as per IEC 60502-1 or as per BS 5467, BS 6346.
Single core cables shall be Aluminium wire armoured)
mm
kg/km
kg/km
Note:
Galvanized Steel Wires applied helically over the bedding as per IEC 60502-1 or as per BS 5467, BS 6346.
Single core cables shall be Aluminium wire armoured)
