Aluminum Conductor Steel Reinforced Bare ACSR Conductor
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：ACSR
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：ASTM B232
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CCC
- Brand：Rmjt
- Standard：ASTM B232 BS215
- Voltage：High Voltage
- Product Name：ACSR Conductor
- Certificate：ISO14001 ISO9001 CCC TUV
- Original Country：China
- Transport Package：Wooden Drum
- Specification：13.29-907.81mm2
- Trademark：RMJT
- Origin：China
- HS Code：7614100000
- Production Capacity：50000km,Month
Description
ASTM B232 Standard about ACSR Conductor Code Name Size No./Dia.of Stranding Wires Approx. Overall Dia. Approx. Weight AWG or MCM Aluminum Steel No./mm No./mm mm kg/km Turkey 6 6/1.68 1/1.68 5.04 54 Swan 4 6/2.12 1/2.12 6.36 85 Swanate 4 7/1.96 1/2.61 6.53 100 Sparrow 2 6/2.67 1/2.67 8.01 136 Sparate 2 7/2.47 1/3.30 8.24 159 Robin 1 6/3.00 1/3.00 9 171 Raven 1/0 6/3.37 1/3.37 10.11 216 Quail 2/0 6/3.78 1/3.78 11.34 273 Pigeon 3/0 6/4.25 1/4.25 12.75 343 Penguin 4/0 6/4.77 1/4.77 14.31 433 Waxwing 266.8 18/3.09 1/3.09 15.45 431 Partridge 266.8 26/2.57 7/2.00 16.28 546 Ostrich 300 26/2.73 7/2.12 17.28 614 Merlin 336.4 18/3.47 1/3.47 17.5 544 Linnet 336.4 26/2.89 7/2.25 18.31 689 Oriole 336.4 30/2.69 7/2.69 18.83 784 Chickadee 397.5 18/3.77 1/3.77 18.85 642 Brant 397.5 24/3.27 7/2.18 19.61 762 Ibis 397.5 26/3.14 7/2.44 19.88 814 Lark 397.5 30/2.92 7/2.92 20.44 927 Pelican 477 18/4.14 1/4.14 20.7 771 Flicker 477 24/3.58 7/2.39 21.49 915 Hawk 477 26/3.44 7/2.67 21.79 978 Hen 477 30/3.20 7/3.20 22.4 1112 Osprey 556.5 18/4.47 1/4.47 22.35 899 Parakeet 556.5 24/3.87 7/2.58 23.22 1067 Dove 556.5 26/3.72 7/2.89 23.55 1140 Eagle 556.5 30/3.46 7/3.46 24.21 1298 Peacock 605 24/4.03 7/2.69 24.2 1160

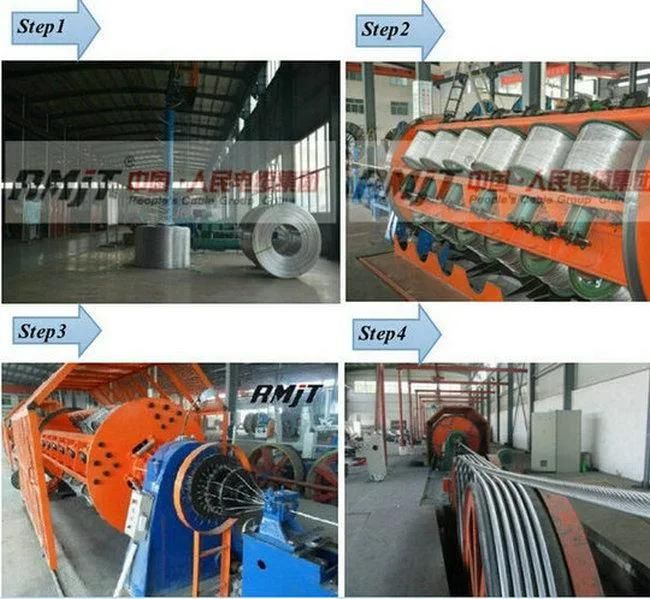

4.Production process:
ACSR conductor producing process is drawing stranding and cabling, our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.

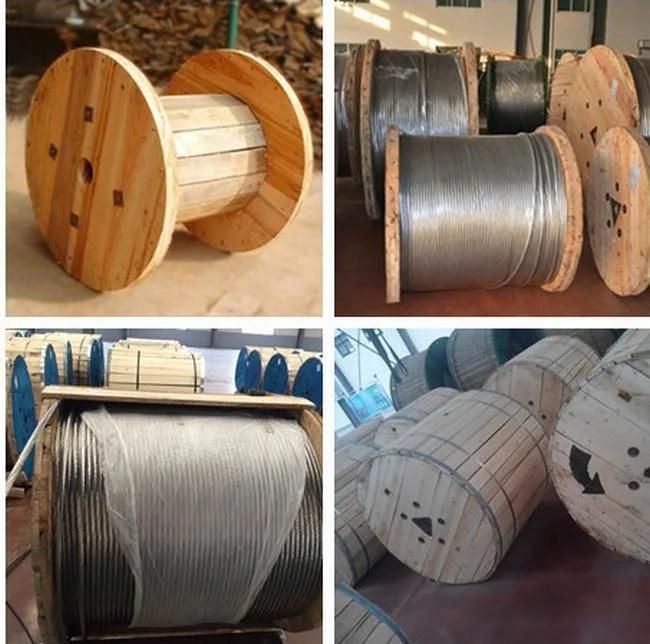

5.Package
ACSR conductor packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.

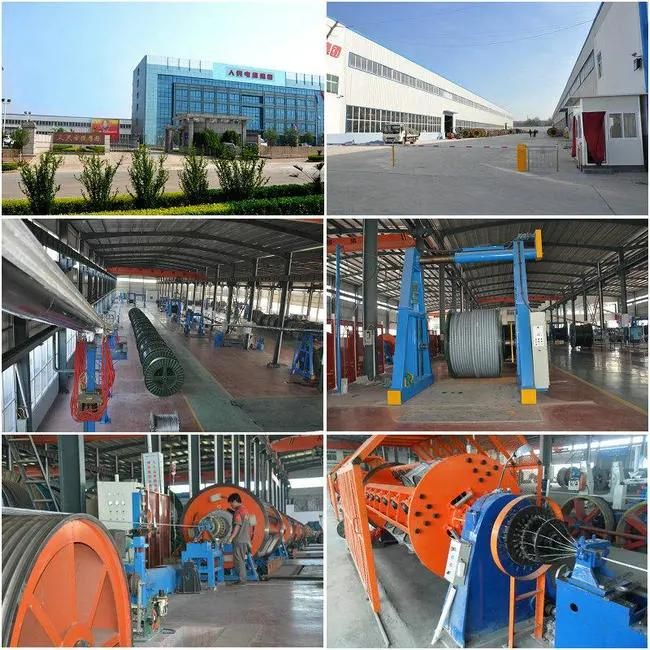

6.About us:
People's Cable Group Co.,Ltd was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
