Wholesale Power Supply Busbar Crane Rail Seamless Bus Bar
HENAN NYBON MACHINERY CO., LTD.- Type：Insulated
- Conductor Type：Solid
- Application：Overhead
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：Rubber
Base Info
- Model NO.：E301,401,601
- Material Shape：Flat Wire
- Range of Application：Cold-Resistant
- Certification：ISO9001, CE
- Brand：Nybon
- Current-Carrying Capacity：20~150A
- Model：3p,4p,6p
- Color：Orange
- Warranty：1 Year
- Transport Package：Export Wooden Box
- Specification：6~25 SQMM
- Trademark：NYBON
- Origin：Henan, China
- HS Code：8426112000
- Production Capacity：100 Km ,Year
Description

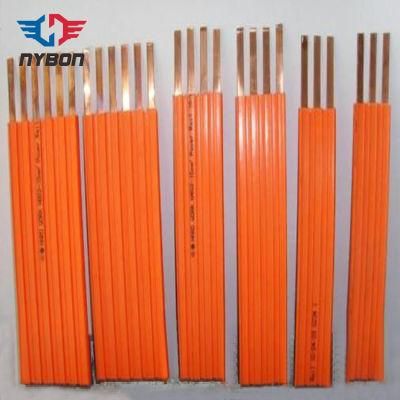

4 P - Busbar
6 P - Busbar
Feature:
1, its conductor is anaerobic copper with good conductive, quality pure and bright color.
2. Copper is in close contact with plastics and that busbar can't be poor contact because of vibrating.
3, its shell is PVC with shock resistance, uvioresistant and good physical.
4, it has no joint and small voltage drop.
5, it has few parts and can be installed easily.
6, Collector frame has a long arm and independent tension spring and that busbar has a big activity radian.
Parts:

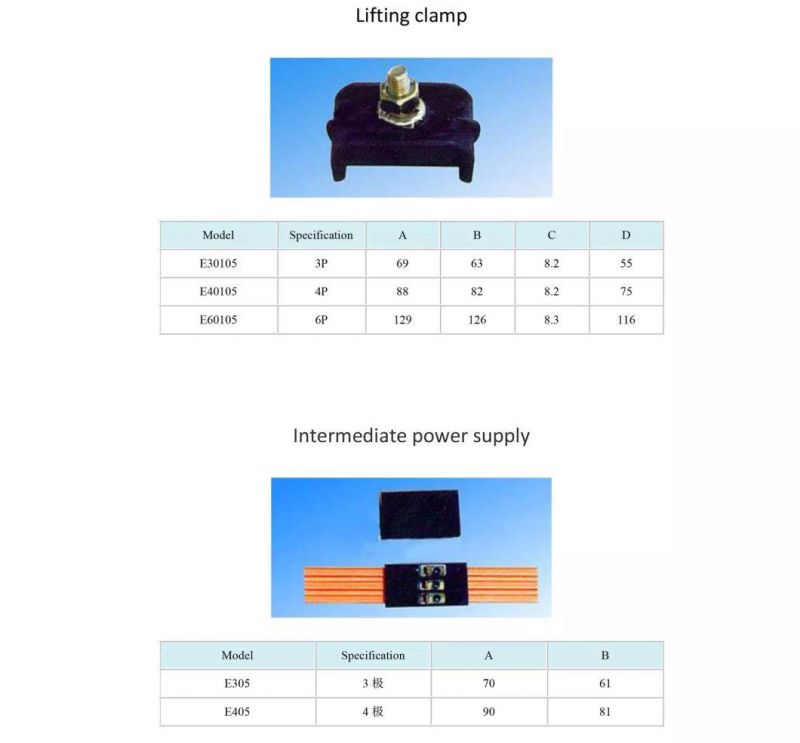

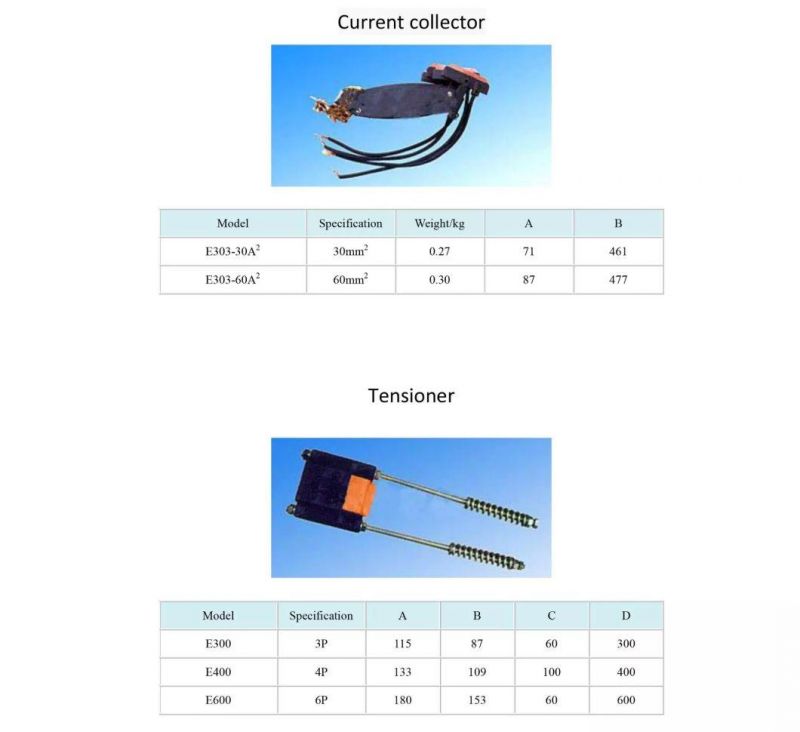

Busbar's patrs cantain tensioner, current collector, lifting clamp, support , power supply and so on.

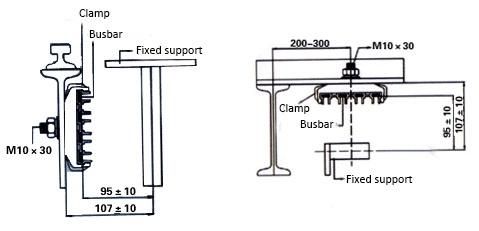

Busbar installation:
There are two ways to install busbar, horizontal installation and vertical installation.

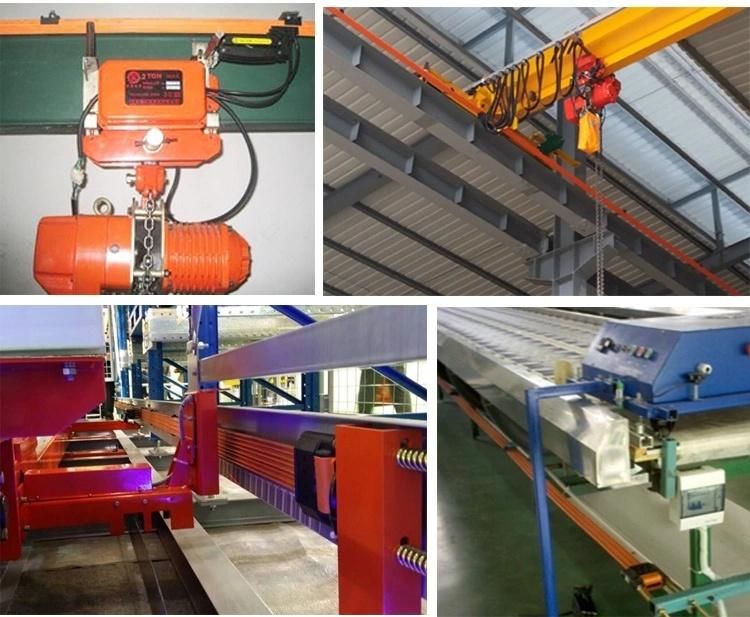

Application:
