• Model NO.：ALK-88A
• Transport Package：Cartob Box
• Specification：As in Description
• Trademark：ALK
• Origin：Wuhan, China
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. ALK-88A Transport Package Cartob Box Specification As in Description Trademark ALK Origin Wuhan, China Production Capacity 1000 Sets/Month

Product Description

ALK-88A Fusion Splicer Optical Splicing Machine

Fusion Splicer ALK-88A is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology .It adopts advanced PAS Fiber adustment technology . Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume ,the lightest weight ,the most fast splicing speed.

Features

Hardness:The body is made from titanium alloy , and it has rubber protection function , quakeproof, waterproof, dustproof .
Fast: 7s fast splicing , 25s fast heating, support continuous heating , average efficiency improve 2~3times.
Long lifetime : 2 batteries ,200 fiber splicing ,no memory effect Lithium Batteries ,the fiber cleaver has 24 blade , long lifetime.
Convenience: convenient for maintenance.

Interchangeable Fiber Holders

Fiber holders adopt Interchangeable design. we can change different fiber holders for different fiber splicing:
1, Splice-on fast connector---3x2mm drop cable
2, Splice-on fast connector---Pigtail fiber (2.0mm or 3.0mm)
3, 3x2mm drop cable---3x2mm drop cable
4, 3x2mm drop cable - Pigtail fiber (2.0mm or 3.0mm)
5, 0.25mm Fiber---0.25mm Fiber
6, 0.9mm Fiber---0.9mm Fiber

Specifications


Applicable Fiber Type	SM,MM,DS,NZDS
Applicable fiber diameter	Cladding diameter of 125μm, coating diameter 250 ~ 900μm
Average splice loss	0.01dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Connecting time	9sec(Typical time)
Splice loss evaluation	Have
Maximum storage	5000 set of the latest record storage
Screen	4.3 in. color LCD, support Chinese ,English ,Russian, French, Portuguese and Spanish display
Optical magnification	X / Y: 115 times, X, or Y: 230 times
Storage Conditions	0 to 95% relative humidity, temperature -40 ºC ~ 80 ºC (except battery), temperature -10 ºC ~ 30 ºC (battery)
Corrosion resistance	Device components, spare parts and materials used meet corrosion requirements, fluid contamination from erosion
Applicable Fiber Count	Single
Splice/heat program	Stored 40 groups, 80 groups of user-defined
Return Loss	More than 60dB
Tensile test	2N
Data interface	USB2.0
Battery	Typical Operating 220 (splice / heat shrink / thermal stripping) on a single charge 3h, can be reused 500 times
Power Supply	11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply
Operating environment	Altitude 0 ~ 4000m, 0 to 95% relative humidity, temperature -10 ºC ~ 55 ºC, the maximum wind speed 15m/s
Weight	1.54kg (without battery), 1.82kg (including battery), including attachments packing gross weight: 5.38Kg
Size	150D×130W×126H(mm)

Related Products


Item No.	Name	Specification	Package	Ref.picture

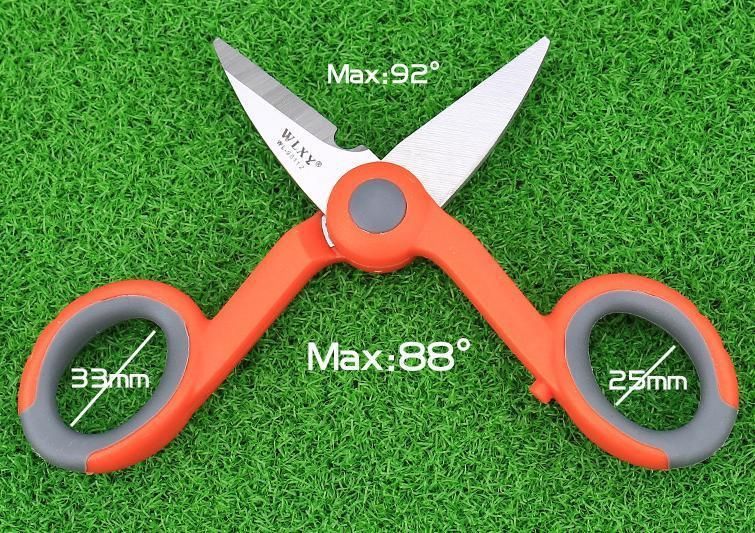

T1001	Kevlar scissors	WL-9011Z	1PCS/BOX
T1008	Fiber optic cleaner	Clean SC/ST/FC Φ2.5mm adapters and ferrules	1 PC/Box
T1009	Fiber optic connector cleaner	Clean FC/SC/ST/E2000,LC/MU,MT etc.	2 PC/Box
T1010	Fiber Optic Stripper	For 125μm Fiber	1 PC/box
T1011	Fiber Optic Stripper	For 125/900μm Fiber	1 PC/box
T1012	Fiber Optic Stripper	For 3.0×2.0mm Fiber Cable	1 PC/box
T1014	Fiber optic slitter (Longitudinal type)	For stripping fiber optice tubes of 1.5~1.9 mm,2.0~2.4mm,2.5~2.9mm,3.0~3.3mm	1 PC/box

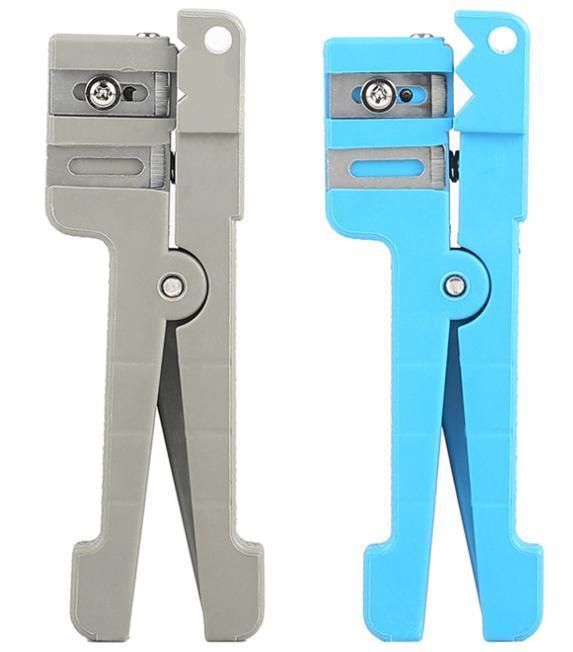

T1015	Fiber optic slitter (Transverse  type)	For stripping fiber 3.2mm-5.6mm	1 PC/box

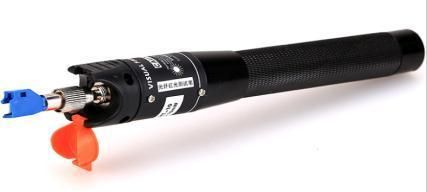

T1017	Visual Fault Locator	20kM

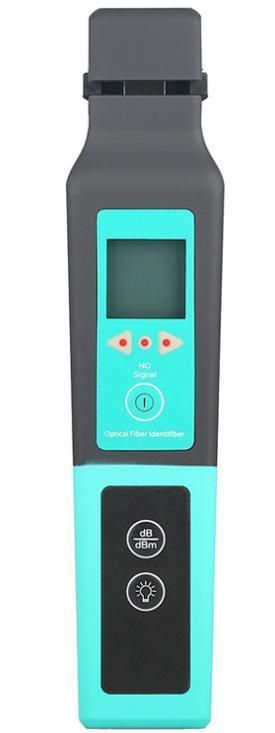

T1021	Optical Fiber Identifier	80nm-1700nm	1PC/Box

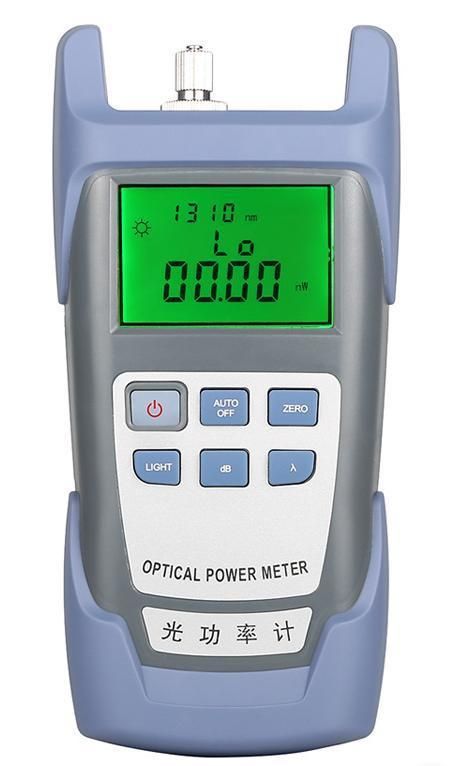

T1022	Optical Power Meter	850/980/1300/1310/1490/1550/1625nm	1PC/Box
T1023	400 Times Optical Fiber Magnifier	To check SC-FC-ST	1PC/Box
