0.6/1kv AAC AAAC Conductor XLPE Insulated NFC Standard ABC Cable
HENAN BAOFENG CABLE CO., LTD.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：None
- Insulation Material：XLPE
Base Info
- Model NO.：abc cable
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CE, CCC, RoHS
- Brand：Hnbf Cable
- Colour：Black
- Rated Voltage：0.6,1kv, 10kv, 11kv
- Standard：NFC 33-209
- Operating Temperature Range：75°c for PE or 90°c for XLPE
- Number of Cores：1core, 2core, 1+1core,3core 2+1core,3+1core
- Class of Conductor：Class 2
- Insulation：XLPE,PE
- Sample：Free
- Phase Conductor：Aluminum
- Neutral Messenger：Aluminum Alloy
- Street Light Core：Al,XLPE
- Transport Package：Wooden,Steel Drum
- Specification：10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 1
- Trademark：HNBF Cable
- Origin：China Henan
- HS Code：8544492100
- Production Capacity：500 Kilometer,Kilometers Per Month
Description
Basic Info.
Model NO. abc cable Material Shape Round Wire Range of Application Overhead Certification ISO9001, CE, CCC, RoHS Brand Hnbf Cable Colour Black Rated Voltage 0.6/1kv, 10kv, 11kv Standard NFC 33-209 Operating Temperature Range 75°c for PE or 90°c for XLPE Number of Cores 1core, 2core, 1+1core,3core 2+1core,3+1core Class of Conductor Class 2 Insulation XLPE/PE Sample Free Phase Conductor Aluminum Neutral Messenger Aluminum Alloy Street Light Core Al/XLPE Transport Package Wooden/Steel Drum Specification 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 1 Trademark HNBF Cable Origin China Henan HS Code 8544492100 Production Capacity 500 Kilometer/Kilometers Per MonthProduct Description

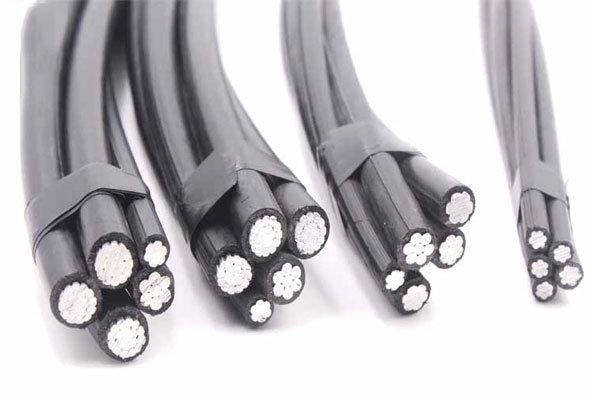

0.6/1kV AAC AAAC Conductor XLPE Insulated NFC Standard ABC CABLE
Aerial bundled cables (also aerial bundled conductors or simply ABC) are overhead power lines using several insulated phase conductors bundled tightly together. This contrasts with the traditional practice of using uninsulated conductors separated by air gaps. This variation of overhead power lines utilizes the same principles as bundled conductors, except that they are closer together to the point of touching but each conductor is surrounded by an insulating layer (except for the neutral line).
Construction
| Phase Conductor | Aluminium stranded conductor. |
|---|---|
| Neutral Conductor | Aluminium alloy conductor (AlMgSi). |
| Insulation | XLPE. Load-bearing / neutral core - marked with standard and producers phase core - marked with digits 1, 2, 3. |
| Assembly | Cores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded. |
Technical Data
| Rated voltage | kV | 0.6/1 |
| Test voltage | Veff kV/Hz | 4/50 |
| Laying temperature | °C | min. -5 |
| Operating temperature | °C | -30 ~ +90 |
| Conductor temperature | °C | max. +90 |
| Short-circuit temperature | °C/s | max. +250 /5 |
| Bending radius (min.) | mm | 20 × O of cable |
Packaging & Shipping

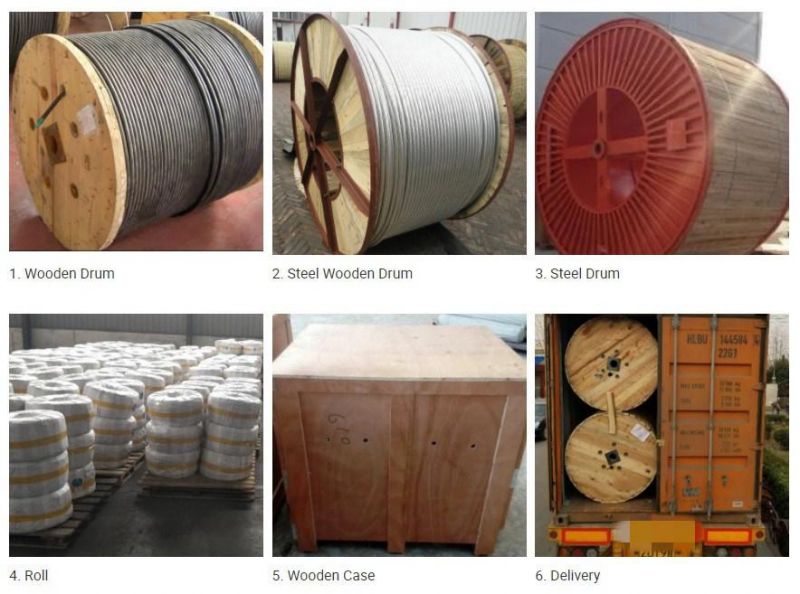

Packing Details : Wooden Drum, Steel Wooden Drum, Steel Drum, Roll, Wooden Case or your requirement.
Delivery Details : 3-30 Days
Our main products:
* ABC Cables including 1kV, 10kV and 35kV with sizes 10sqmm to 240sqmm, 1 to 5 cores.
* Power Cable including low voltage and high voltage up to 35kV and lower.
Our the other products:
*The other cables including AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW, Guy Wire, Stay Wire, Aluminum Clad Wire, OHGW Wire, Electrical Wire, THW, THHN, THWN etc.
