High Speed Bunching Winding Stranding Twisting Twist Twister Extrusion Extruder Cable Machine

Kunshan Fuchuan Electrical and Mechanical Co., Ltd.
  • Certification：ISO9001, CE
  • Brand：Fuchuan
  • Shape：Round Wire
  • Twisting Usage：Bare Copper Wire,Tinned Wire,Silver Jacketd Wire,
  • Conductor Single Wire Diameter：Diameter 0.10-0.64mm
  • Core Wire Single Wire Dia：Diameter 0.75-1.5mm

Base Info

  • Model NO.：FC-650C-2
  • Operation Mode：Push-Button Control
  • Traversing Method：Rolling Ring Drive Units,Winding Pitch and Breadth
  • Protection：Machine Will Automaticlly Brake When Wire Inside
  • Tension Control Method：Mechanism Friction
  • Main Motor Power：3.7kw
  • Max Rotating Speed：3000rpm(6000twist)
  • Direction of Lay：Optional for Right or Left
  • Transport Package：Simply Packed
  • Specification：ISO9001
  • Trademark：FC
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：50sets,Month

Description

Basic Info.

Model NO. FC-650C-2 Operation Mode Push-Button Control Traversing Method Rolling Ring Drive Units,Winding Pitch and Breadth Protection Machine Will Automaticlly Brake When Wire Inside Tension Control Method Mechanism Friction Main Motor Power 3.7kw Max Rotating Speed 3000rpm(6000twist) Direction of Lay Optional for Right or Left Transport Package Simply Packed Specification ISO9001 Trademark FC Origin China HS Code 8479811000 Production Capacity 50sets/Month

Product Description

High Speed Bunching Winding Stranding Twisting Twist Twister Extrusion Extruder Cable Machine
High Speed Bunching Winding Stranding Twisting Twist Twister Extrusion Extruder Cable Machine
High Speed Bunching Winding Stranding Twisting Twist Twister Extrusion Extruder Cable Machine

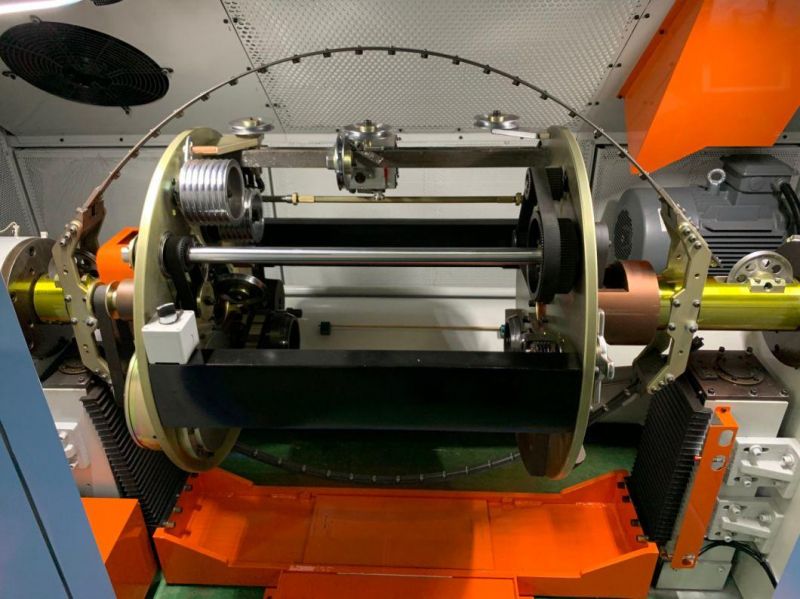

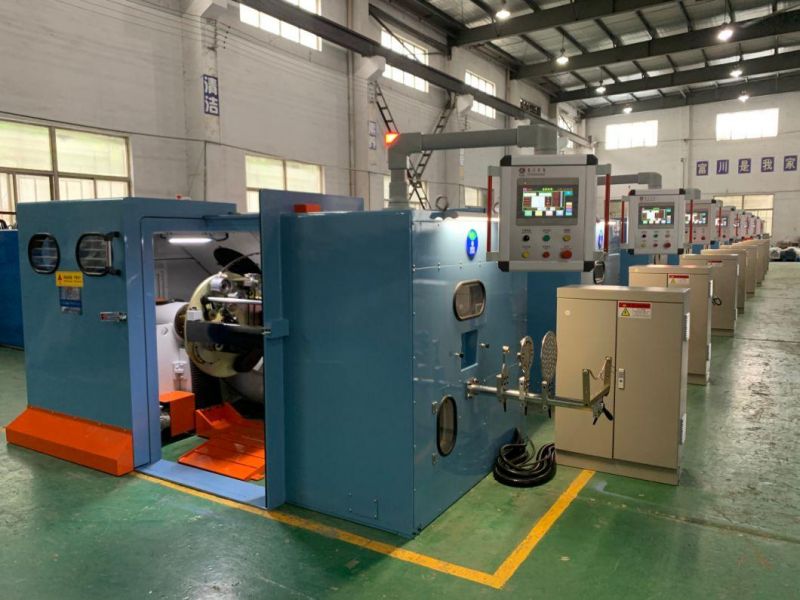

In the year 2018newly developed machine:FC-650C-2 high speed bunching machine,it has the following functions:

  1. High-intelligent tension control system:with high precision enclosed tension control system,make take up tension is stable from beginning to end.
  2. Germany ZF hysteresys clutch:instead of magnetic powder clutch.
  3. Automatic oil adding system:can setting on PLC programme,cannot effect by environment,save worker time and high efficiency.
  4. Main shaft test temp device:when main shaft is in abnormal heat,its temp is not in normal,machine will automatically alarm and stopped.
  5. Main body of machine and internal is separated.Lower noise and more environmental.
  6. Internet control:many sets of bunching machine working condition can sums into one computer or mobile,so you could check the working condition at any time,such as machine speed,wire specification,linear speed,output,machine maintenance and so on;and could on line analyse machine,reduce production and maintenance fees;
