Factory Wholesale 23AWG Cat7 LAN Cable
Hangzhou Risun Cable Co., Ltd.- Type：Bare
- Conductor Type：Solid
- Application：LAN Cable
- Conductor Material：Copper
- Sheath Material：PVC,PE,LSZH
- Insulation Material：HDPE
Base Info
- Model NO.：cat7
- Material Shape：Round Wire
- Range of Application：LAN Cable
- Certification：ISO9001, CE, RoHS, CPR,ETL,SGS
- Brand：Risun or OEM
- Color：as Request
- Insulation：HDPE
- Export Length：100m,Roll, 305m,Roll,500m,Roll,1000m,Roll
- Pairs：4pairs
- Nom. Thick：0.6mm
- Transport Package：305m,Pull Box, 2boxes,CTN
- Specification：0.58cu, 1.35PE, 7.9VC, LSZH, PE
- Trademark：Risun or OEM
- Origin：Hangzhou, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description

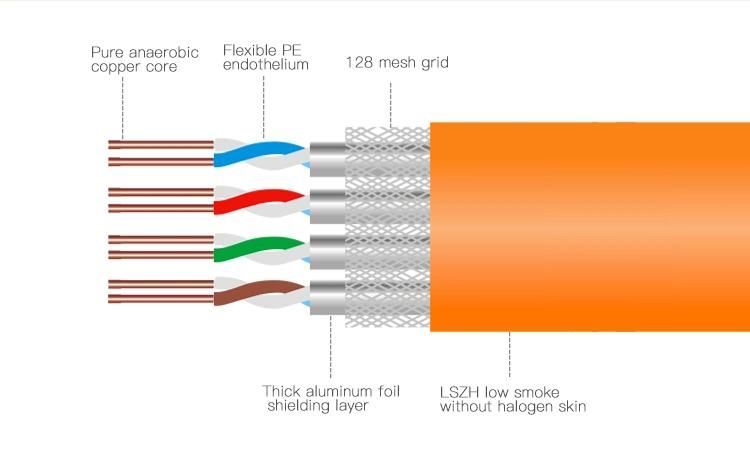

S/FTP CAT7 solidConductor 23 AWG Solid Bare Copper Mean Impedance 100±5 Ohm @ 1-1200 MHz Vp 75-77% nom. Capacitance 40 pF/m nom @ 1kHz Capacitance unbalance to ground 1.6 pF/m max. @ 1 kHz Insulation Resistance 0.5 GOhm km min. DC Resistance 77 Ohm/km max. (2% max. resistance unbalance). DC Loop Resistance 154 Ohm/km max. (2% max. resistance unbalance) Voltage rating 72Vdc max. Phase delay 534+36/f½ nS/100m max. @ f=1-1200 MHz Delay Skew 15 nS/100m max.

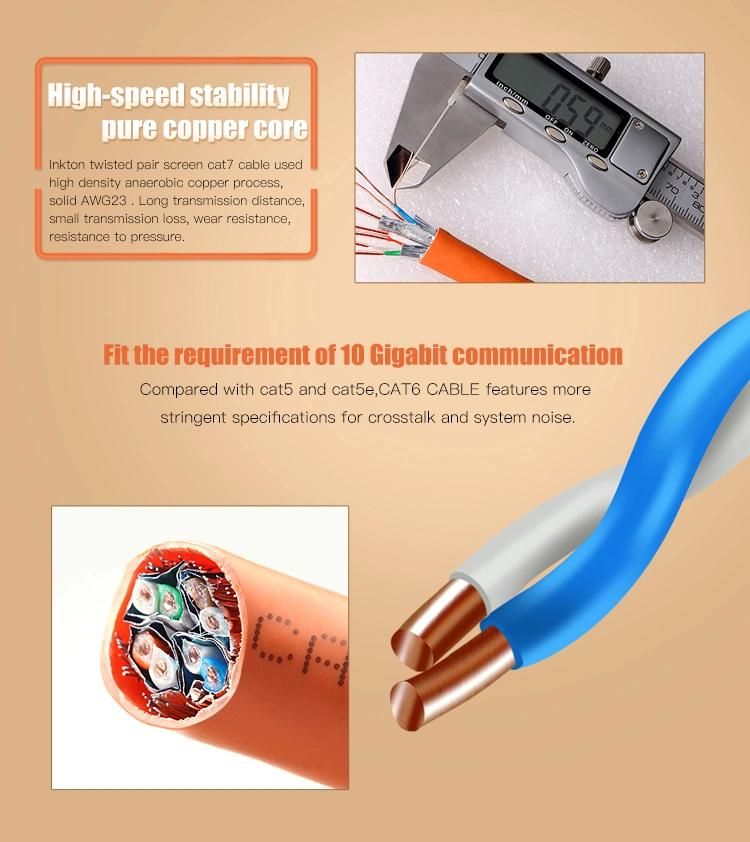

Details Images:
Packing&Shipping:
Why Choose Us:
FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.
Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)
Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.
Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.
Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
WELCOME TO RISUN!!!
