• Wire Core Material：Copper or Aluminium
• Certification：ISO, CCC, CE, Kema Certificate
• Model：YJV
• Brand：Yifang
• Neutral Size：16mm2, 25mm2, 35mm2, 50mm2,

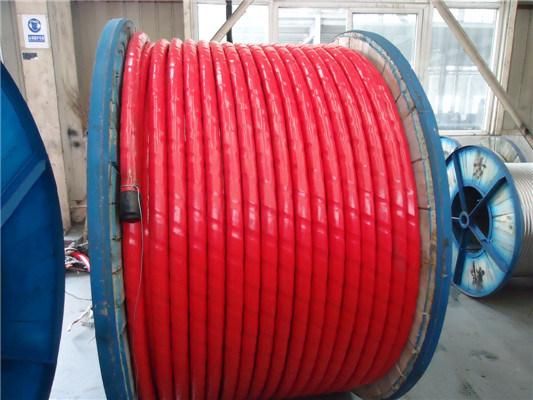

• Transport Package：Wooden Drum, Steel-Wooden Drum, Steel Reel
• Trademark：Yifang
• Origin：China
• Production Capacity：500km Per Month

Basic Info.

Wire Core Material Copper or Aluminium Certification ISO, CCC, CE, Kema Certificate Model YJV Brand Yifang Neutral Size 16mm2, 25mm2, 35mm2, 50mm2, Transport Package Wooden Drum, Steel-Wooden Drum, Steel Reel Trademark Yifang Origin China Production Capacity 500km Per Month

Product Description

18/30KV(36KV) XLPE Power Cable N2XSY/NA2XSY NA2XS(F)2Y Cable 300mm2/400mm2/500mm2


1. Applications

For installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry, and
distribution networks. The good installation properties of this cable make installation easy, even on difficult routes. Acc.to VDE 0276-603 cables must be protected against direct sun irradiation

2. Reference Standards

VDE 0276 , IEC 60502-2

3. Rated Voltage

6/10KV(12KV), 12/20KV(24KV), 18/30KV(36KV)

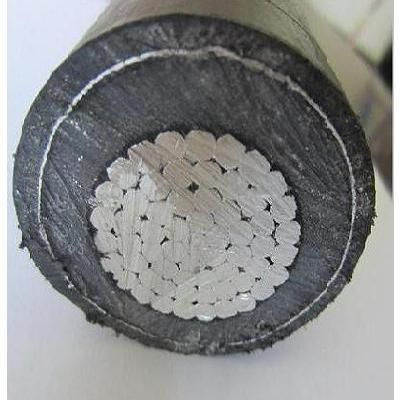

4. Cable Construction

Conducor: Stranded  annealed  compcted copper or aluminium wire,  in Class 2  , one core or three cores
                    Size: 25mm2,35mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,300mm2,                                                      400mm2,500mm2,630mm2,800mm2

Conductor Shield: Semi-conducting compound

Insulation: Cross-linked polyethylene (XLPE) or Tree retardant cross-linked polyethylene (TR-XLPE)

Insulation Shield: Semi-conducting compound

Concentric Neutral wire & Copper tape :  Copper wires, helically applied and uniformly spaced. Bare copper                                tape , helically applied

Wrapping tape: non-woven clothing tape or water swelling tape

Outer sheath:  Polyvinyl chloride (PVC) or polyethylene (PE). Configuration Options: On request, Triplex or Paralleled configurations.

5. MAXIMUM CONDUCTOR TEMPERATURE

Normal continuous at 90ºC, Overload at 130ºC and Short circuit at 250ºC

Code	Construction	Medium Voltage XLPE Cable Descriptions
N2XSY / N2XSEY / YJV	CU / XLPE / CTS / PVC	Copper Conductor, XLPE Insulated Copper Tape Screen PVC Sheathed Power Cable
NA2XSY / NA2XSEY / YJLV	AL / XLPE / CTS / PVC	Aluminum Conductor, XLPE Insulated Copper Tape Screen PVC Sheathed Power Cable
N2XSY / N2XSEY / YJSV	CU / XLPE / CWS / PVC	Copper Conductor, XLPE Insulated Copper Wire Screen PVC Sheathed Power Cable
NA2XSY / NA2XSEY / YJLSV	AL / XLPE / CWS / PVC	Aluminum Conductor, XLPE Insulated Copper Wire Screen PVC Sheathed Power Cable
N2XSRY / YJV72	CU / XLPE / CTS / PVC / AWA / PVC	Copper Conductor XLPE Insulated Copper Tape Screen PVC Inner Sheaht Aluminum Wire Armored PVC Sheathed Power Cable
NA2XSRY / YJLV72	AL / XLPE / CTS / PVC / AWA / PVC	Aluminum Conductor XLPE Insulated Copper Tape Screen PVC Inner Sheaht Aluminum Wire Armored PVC Sheathed Power Cable
N2XSRY / YJSV72	CU / XLPE / CWS / PVC / AWA / PVC	Copper Conductor XLPE Insulated Copper Wire Screen PVC Inner Sheaht Aluminum Wire Armored PVC Sheathed Power Cable
NA2XSRY / YJLSV72	AL / XLPE / CWS / PVC / AWA / PVC	Aluminum Conductor XLPE Insulated Copper Wire Screen PVC Inner Sheaht Aluminum Wire Armored PVC Sheathed Power Cable
N2XSEBY / N2XSEYBY/ YJV22	CU / XLPE / CTS / PVC / STA / PVC	Copper Conductor, XLPE Insulated Copper Tape Screen PVC Inner Sheath Galvanized Double Tape Armoured PVC Sheathed Power Cable
NA2XSEBY / YJLV22	AL / XLPE / CTS / PVC / STA / PVC	Aluminum Conductor, XLPE Insulated Copper Tape Screen PVC Inner Sheath Galvanized Double Tape Armoured PVC Sheathed Power Cable
N2XSERY / N2XSEYRGbY / YJV32	CU / XLPE / CTS / PVC / SWA / PVC	Copper Conductor XLPE Insulated Copper Tape Screen PVC Inner Sheath Round Steel Wire Armoured PVC Sheathed Cable
N2XSERY / N2XSEYRGbY / YJSV32	CU / XLPE / CWS / PVC / SWA / PVC	Copper Conductor XLPE Insulated Copper Wire Screen PVC Inner Sheath Round Steel Wire Armoured PVC Sheathed Cable

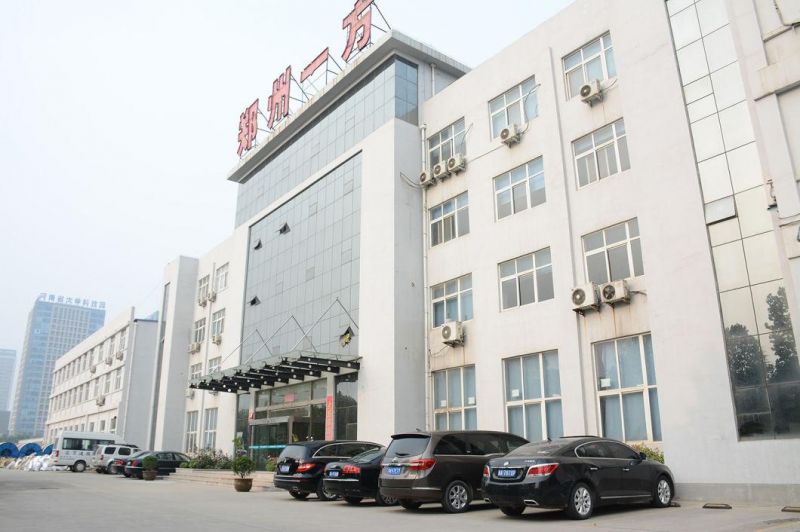

6.Our company

Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.


7.Our certificate


8.FAQ

1.Q:Are you a factory or trading company?
 A: Manufacturing base in Henan ,China, with more than 500 workers.

2.Q:How can I visit there?
 A: Sure,If you need,we will arrange the driver to pick you up.

3.Q:How can I get some samples?
 A: Contact me on below,Determin sample and address for shipping.


4.Q:Have you ever supplied cables to our country?
 A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.

5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.

6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.

7.Q:How long is your delivery time?
 A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
