Overhead Stranded Aluminum Conductor Steel Reinforce Bare ACSR Conductor
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CE, CCC, BV
- Brand：Rmjt
- Voltage：High Voltage
- Structure：1*3 1*7 1*19 1*37
- OEM or ODM：Yes
- Usage：Power Transimision
- Special Feature：Steel Core Aluminium
- Name：ACSR Conductor
- Code Name：Dog, Rabbit, Zebra
- Transport Package：Wooden Drum
- Specification：ASTM BS GB IEC DIN
- Trademark：RMJT
- Origin：China
- HS Code：7614900000
- Production Capacity：10000000meters,Year
Description
Code NameArea Stranding Approx. Overall Diameter Weight Nominal Alum. Steel Total Alum. Steel Alum. Steel Total AWG or MCM mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km Turkey 6 13.29 2.19 15.48 6/1.68 1/1.68 5.04 37 17 54 Swan 4 21.16 3.55 24.71 6/2.12 1/2.12 6.36 58 27 85 Swanate 4 21.16 5.35 26.51 7/1.96 1/2.61 6.53 58 42 100 Sparrow 2 33.61 5.61 39.22 6/2.67 1/2.67 8.01 92 44 136 Sparate 2 33.61 8.52 42.13 7/2.47 1/3.30 8.24 92 67 159 Robin 1 42.39 7.10 49.49 6/3.00 1/3.00 9.00 116 55 171 Raven 1/0 53.48 8.90 62.38 6/3.37 1/3.37 10.11 147 69 216 Quail 2/0 67.42 11.23 78.65 6/3.78 1/3.78 11.34 185 88 273 Pigeon 3/0 85.03 14.19 99.22 6/4.25 1/4.25 12.75 233 110 343 Penguin 4/0 107.23 17.87 125.10 6/4.77 1/4.77 14.31 294 139 433 Waxwing 266.8 135.16 7.48 142.64 18/3.09 1/3.09 15.45 373 58 431 Partridge 266.8 135.16 22.00 157.16 26/2.57 7/2.00 16.28 374 172 546 Ostrich 300 152.00 24.71 176.71 26/2.73 7/2.12 17.28 421 193 614
4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.
5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
6.Production process:
ACSR conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

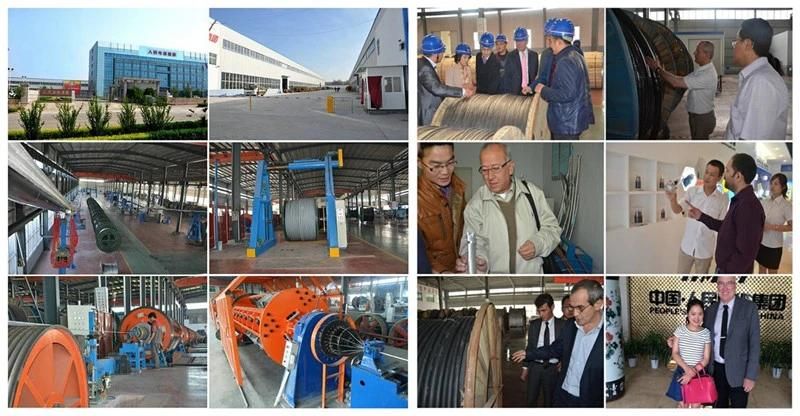

8.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
