Temperature Optic Fiber Fiber Bragg Grating
Beijing Samyon Instruments Co., Ltd.- Type:Single-mode Fiber
- Connection Structure:LC
Base Info
- Model NO.:FBG
- Material Shape:Flat Wire
- Allowed Lateral Pressure:>1000(N,100mm)
- Allowed Tensile Strength:<100N
- Certification:ISO9001
- Brand:OEM
- Sheath Material:PVC
- Center Wave Length:1510-1590nm
- Wavelength Tolerance:+,-0.2nm
- Fbg Length:1-15mm
- Reflectivity:5%-99%
- Bandwidth at 3dB:0.1- 1nm
- Slsr:≥15 dB
- Recoating:Aorylate or Polyimide
- Pigtail Length:2 M
- Proof Test:100 Kpsi
- Fiber Type:SMF-28e or Polyimide Fiber
- Transport Package:Plastic Bag
- Trademark:SAMYON
- Origin:Cn
- HS Code:9031809090
- Production Capacity:1000pieces Per Month
- Package size per unit product:10.00cm * 10.00cm * 10.00cm
- Gross weight per unit product:1.000kg
- Lead Time:2 days (1 - 10 Pieces)
To be negotiated ( > 10 Pieces)
Description
Description:
We can offer standard Fiber Bragg Grating at the Central Wavelength from 1510nm to 1590nm. It can be used for fiber sensor and telecommunication applications. Any wavelength fiber gratings can be fabricated within a fast delivery time.
Application:
Telecommunication, Lasers and sensors, filter
Wavelength Division Multiplexing Transmission System
High tensile resistance and anti-electromagnetic interference
Technical specification:
Parameter
Unit
Values
Center Wave length
nm
1510-1590
Wavelength Tolerance
nm
+/-0.2
FBG length
mm
1-15
Reflectivity
5%-99%

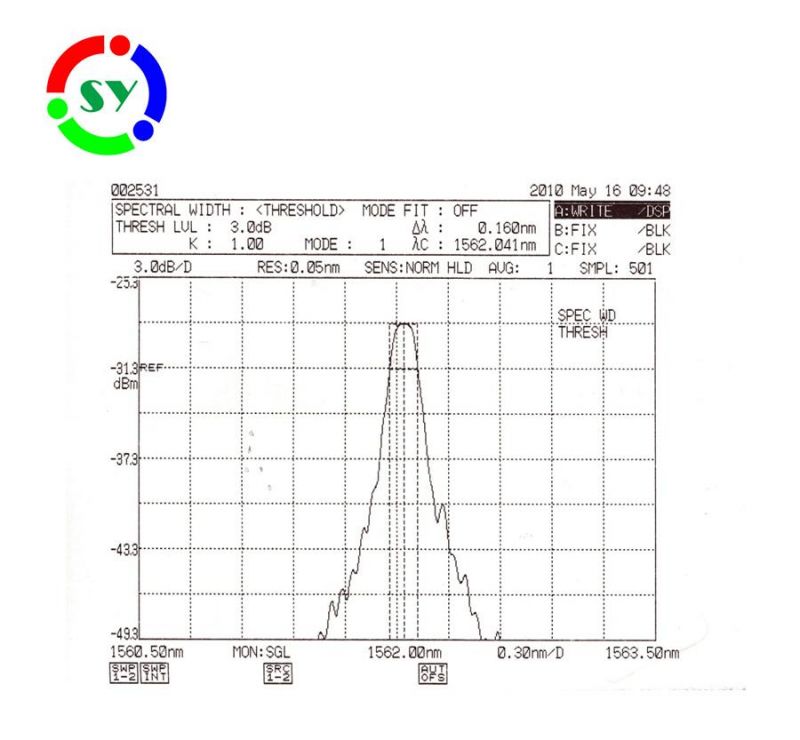

Bandwidth at 3dB
nm
0.1- 1
SLSR
dB
≥15
Recoating
--
Aorylate or Polyimide
Fiber type
--
SMF-28e or Polyimide Fiber
Fiber termination
--
Bare Fiber, FC/UPC, or FC/APC
Pigtail length
m
2 (typical )
Operating Temp.
ºC
SMF-28e Fiber: -5 -80
Polyimide Fiber: -40-80
Storage Temp.
ºC
SMF-28e Fiber: -5 -80
Polyimide Fiber: -40-80
Proof test
kpsi
≥100

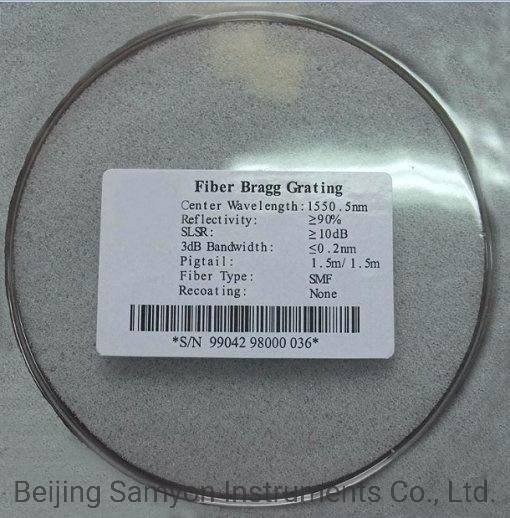

Fiber Bragg Grating
Feature:
High stability and reliability Length customized grating High SLSR
Description:
We can offer standard Fiber Bragg Grating at the Central Wavelength from 1510nm to 1590nm. It can be used for fiber sensor and telecommunication applications. Any wavelength fiber gratings can be fabricated within a fast delivery time.
Application:
Telecommunication, Lasers and sensors, filter
Wavelength Division Multiplexing Transmission System
High tensile resistance and anti-electromagnetic interference
Technical specification:
Parameter
Unit
Values
Center Wave length
nm
1510-1590
Wavelength Tolerance
nm
+/-0.2
FBG length
mm
1-15
Reflectivity
5%-99%
Bandwidth at 3dB
nm
0.1- 1
SLSR
dB
≥15
Recoating
--
Aorylate or Polyimide
Fiber type
--
SMF-28e or Polyimide Fiber
Fiber termination
--
Bare Fiber, FC/UPC, or FC/APC
Pigtail length
m
2 (typical )
Operating Temp.
ºC
SMF-28e Fiber: -5 -80
Polyimide Fiber: -40-80
Storage Temp.
ºC
SMF-28e Fiber: -5 -80
Polyimide Fiber: -40-80
Proof test
kpsi
≥100
Feature:
High stability and reliability Length customized grating High SLSR
