UL3512 High Temperature Resistant Silicone Rubber Insulated Wire
Jiangyin Yuanda Electrical Material Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground, Home Electric Appliances, Lightings Fixtures, Elec
- Conductor Material：Bare Copper or Tinned Copper
- Insulation Material：Silicone Rubber
- Material Shape：Round Wire
Base Info
- Model NO.：UL3512
- Certification：ISO9001, UL, CCC, RoHS, VDE
- Brand：Yuanda
- Nominal Voltage：600V
- Temperature Range：-60~+200deg.C
- Color：on Request
- Packaging：100meters Per Roll(on Request)
- Transport Package：Pallet,Carton,Tray,Reel
- Specification：0.5-240AWG
- Trademark：Yuanda
- Origin：Wuxi, China
- HS Code：8544492100
- Production Capacity：1000km,Day
Description

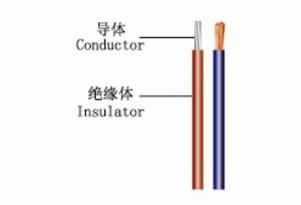

ConductorInsulation Resistance at 20ºC
Ω/km AWG Conductor structure
No./ mm Diameter
(mm) Nominal thickness
(mm) Nominal outer diameter
(mm) Max outer diameter
(mm) 0.5 28/0.15 0.93 0.78 2.49 2.69 40.100 0.75 24/0.20 1.13 0.78 2.69 2.91 26.700 1 32/0.20 1.31 0.78 2.87 3.10 20.000 1.5 30/0.25 1.58 0.78 3.14 3.39 13.700 2 41/0.25 1.85 0.78 3.41 3.68 9.900 2.5 49/0.25 2.06 0.78 3.62 3.91 8.210 4 56/0.30 2.60 0.78 4.16 4.49 5.090 6 84/0.30 3.60 1.14 5.88 6.35 3.390 10 84/0.40 4.60 1.52 7.64 8.25 1.950 16 126/0.40 5.70 1.52 8.74 9.44 1.240 25 196/0.40 6.70 1.52 9.74 10.52 0.795 35 276/0.40 8.50 1.52 11.54 12.46 0.565 50 396/0.40 10.30 2.03 14.36 15.51 0.393 70 560/0.40 12.40 2.03 16.46 17.78 0.277 95 760/0.40 14.50 2.03 18.56 20.04 0.210 120 955/0.40 16.50 2.45 21.40 23.11 0.164 150 1194/0.40 18.00 2.45 22.90 24.73 0.132 185 1472/0.40 20.50 2.45 25.40 27.43 0.108 240 1910/0.40 23.00 2.45 27.90 30.13 0.082
Ω/km
No./ mm
(mm)
(mm)
(mm)
(mm)
