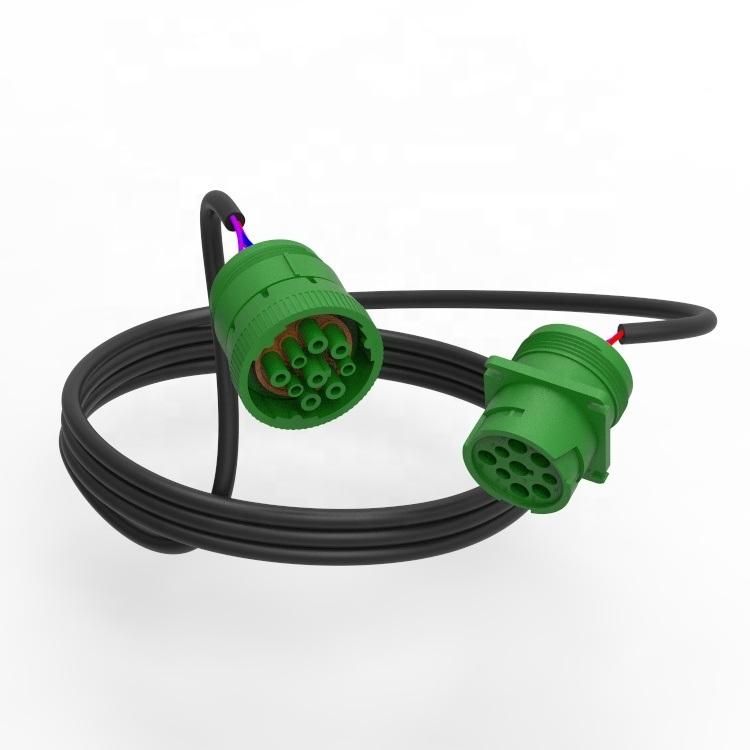

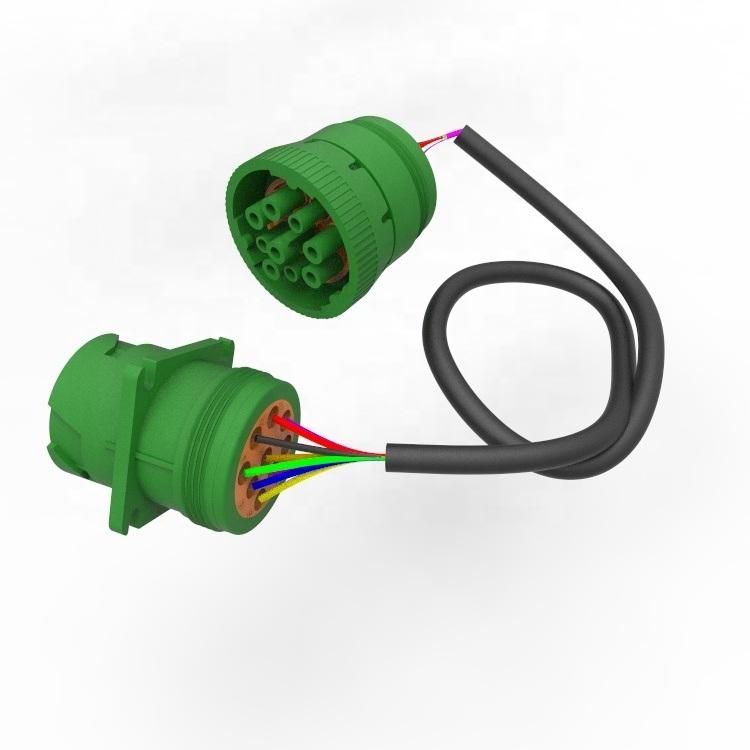

J1939 Universal 9pin Deutsch HD Harness for Truck
Edgar Auto Harnesses Ltd.- Application：Computer, Electronic, Automobile, RF, Home Appliance, Motorcycle
- Wire Core Material：Copper Clad Aluminum Wire
- Industry Type：Communications Wiring Harness
- Bandaging Materials：Adhesive Tape
- General Wiring Harness：Injection Molding Assembly Class
- Signal：Low Voltage Wiring Harness
Base Info
- Model NO.：J1939 & J196
- Shape：Round
- Interface Type：AC,DC
- Certification：VDE, RoHS, ISO9001, UL, CCC, IATF16949 Ts16949 UL
- Brand：Edgarwireharness
- Service：Accept Custom Cable Work

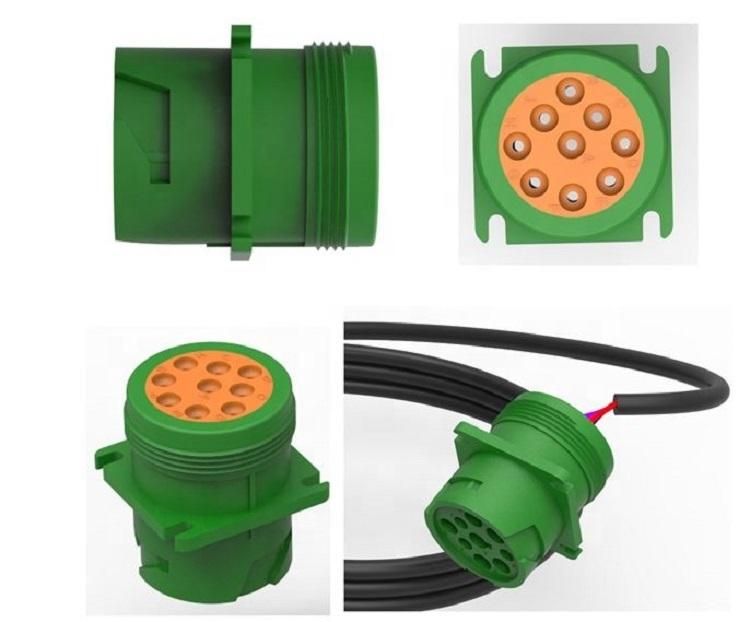

- Connector：Equivalent HD-10-9-1939s
- Connector Brand：Deutsch J1939 HD-16-9-1939s-P080
- Length：Customized
- Cable：UL20276 28AWG
- Part Number：Deutsch J1939 HD-16-9-1939s-P080
- Product Name：6 Pin Deutsch Connector
- Keywords：Cable Harness Assembly
- Color：Gray
- Transport Package：FedEx
- Trademark：9 Pin Deutsch Connector
- Origin：Guangdong, China
- HS Code：8544422900
- Production Capacity：1000000 PCS Week
Description

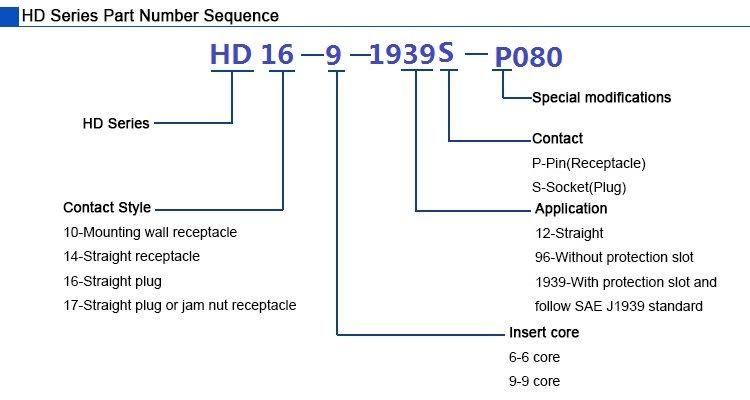

EDG-HD16-9-1939S-P080
Terminal type Wire type CONT. Retention REF crimp tensile Failue Model 1060-16-0122 UL 1007 18# 20 LBS >20 LBS Wire damage 1060-16-0122 UL 1007 16# 20 LBS >25 LBS Grommet broken
Edgar Service 1Company information
Packaging Details could be customized by client specified.
Normally, the lead time below for reference, the detail according to conversation:
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/ tooling |
| Est. Time(Days) | 20 | 25 | To be negotiated | 30 days more |
International expressed by DHL, UPS, FedEx, TNT, ARAMEX and EMS etc..
Customers choice for shipping by air, sea or others.
Payment for samples/mass products shall be closing before delivery, amount above 5000 USD according to conversation in somewhere.
Fo

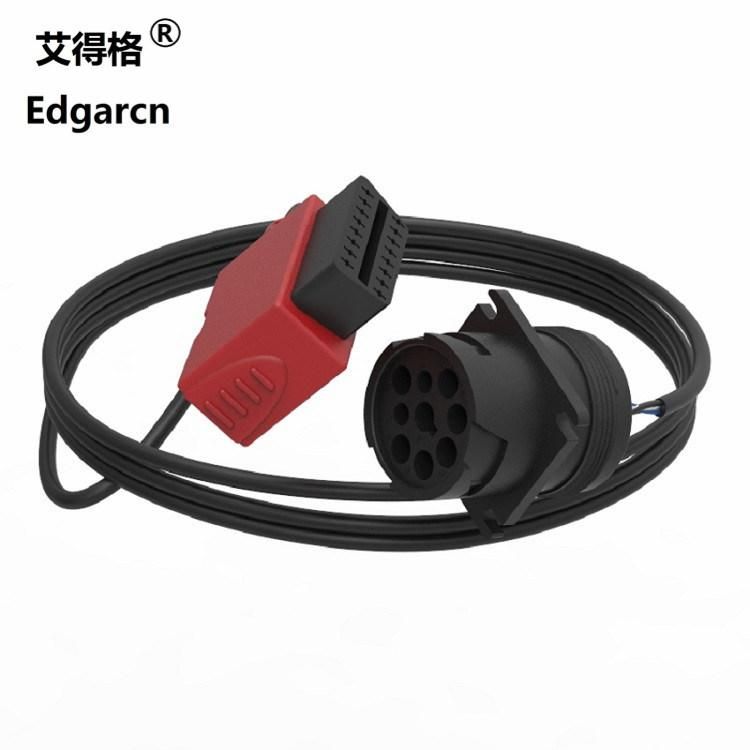

rd Valve Cover Gasket Kit, ignition cable, diagnosis OBD II or J1939 series cable, lamp
wires, rear-view mirror cable, Engine cylinder system wire harness etc..
1. Q: Can you help to design?
A: Yes, we are an ODM / OEM company, beyond we have been specializing in wire harness & Cable assembly since 1999.
2. Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
3. Q: What if quality issues occur when customer discover?
A: Our quality and engineer team will positively respond for the quality issues with 72 hours, as we are intend to make long-stand strategy with customer and the value is to provide better service.
4. Q: Do you have any standard products to cut down customers lead time for prototype and tooling cost?
A: Yes, we have developed over 1000 sets of molds and some of them can be used for customer directly. Besides, we specialize in wire harness over 20 years with more than 5000 products
