• Model NO.：Welding Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE, SABS
• Brand：Henan Jiapu
• Voltage Rating：200V
• Capacity：2000km,Month
• Sample：Free
• Factory Visit：Welcome
• Transport Package：Wooden Drum or Wooden&Steel Drum
• Specification：IEC, ASTM, BS, DIN
• Trademark：Jiapu
• Origin：Henan China
• HS Code：8544492100
• Production Capacity：5000km,Month

ConductorClass 5 flexible plain copper conductor, Class 6 extra flexible plain copper conductorsInsulationHOFR (Heat and Oil Resistant and Flame Retardant)SeparatorPolyester foil or tape or HOFR (Heat and Oil Resistant and Flame Retardant)SheathHOFR (Heat and Oil Resistant and Flame Retardant)ColorBlack or other

Technical Data:

Nominal Sectional Area

No. and Diameter of wire

Thickness of Section Sheath

Overall Diameter

Max.Conductor Resistance at 20ºC

Reference Weight

Min.

Max.

YH

YHF

m

mm

mm

mm

mm

≤Ω/km

kg/km

kg/km

10

322/0.20

1.8

7.5

9.7

1.91

146

153.51

16

513/0.20

2.0

9.2

11.5

1.16

218.9

230.44

25

798/0.20

2.0

10.5

13.0

0.758

316.6

331.15

35

1121/0.20

2.0

11.5

14.5

0.536

426

439.87

50

1596/0.20

2.2

13.5

17.0

0.379

592.47

610.55

70

2214/0.20

2.4

15.0

19.5

0.268

790

817.52

95

2997/0.20

2.6

17.0

22.0

0.198

1066.17

1102.97

120

1702/0.30

2.8

19.0

24.0

0.161

1348.25

1392.55

150

2135/0.30

3.0

21.0

27.0

0.129

1678.5

1698.72

185

1443/0.40

3.2

22.0

29.0

0.106

1983.8

2020.74

FACTORY VIEWQA&QC
CUSTOMER VISIT

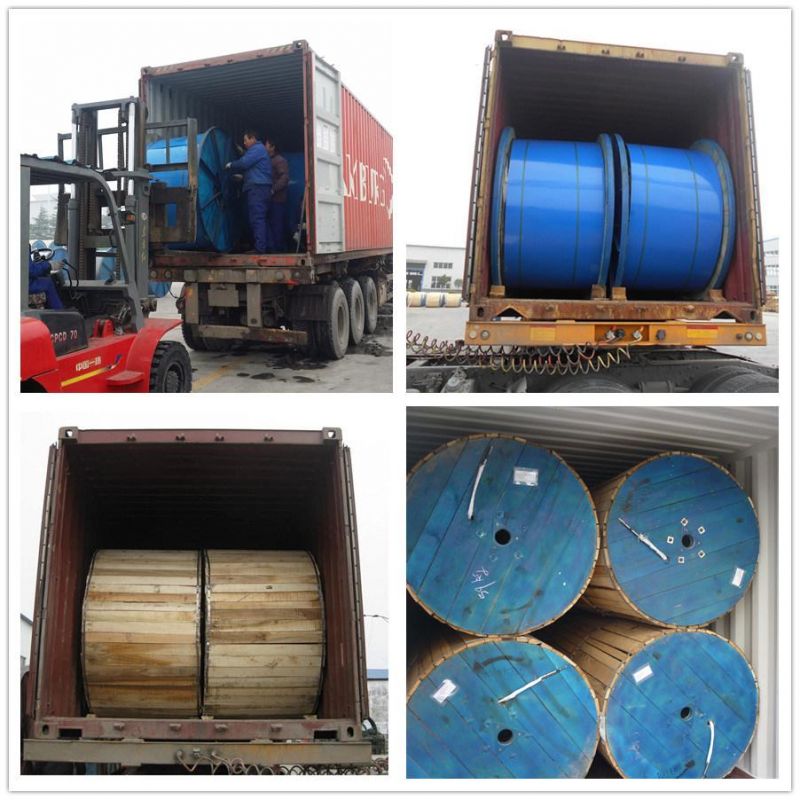

CABLE LOADING
