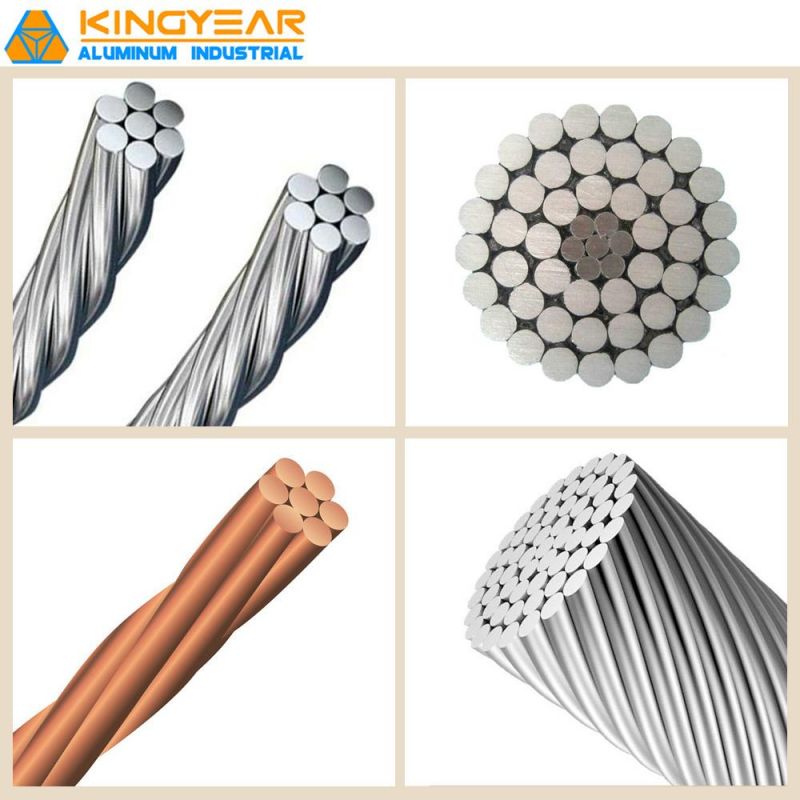

IEC 61089 Greased AAAC Stranded All Aluminum Alloy Conductor Overhead Cable for Electricity Transmission
Henan Kingyear Aluminum Industrial Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead, Overhead Transmission
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Material Shape：Round Wire

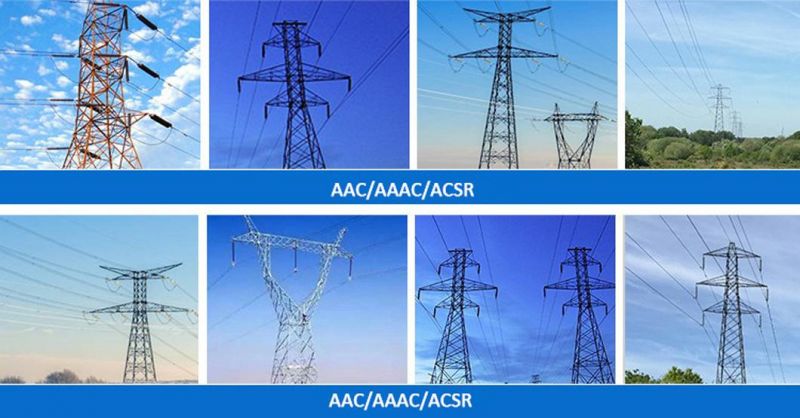

- Range of Application：Overhead Power Transmission Supply
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Kingyear
- Standard：IEC 61089, ASTM B399, BS 3242, BS En50182, DIN 48
- Delivery：7-25days After Received The Prepayment
- Hot Sale Countries：Philippine, Yemen, Vietnam, Indonesia

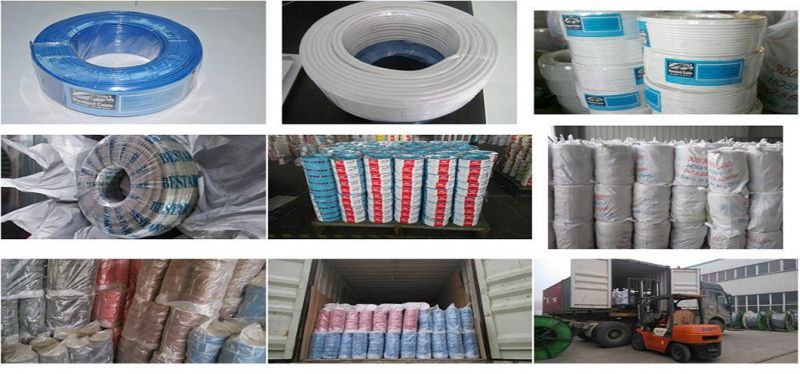

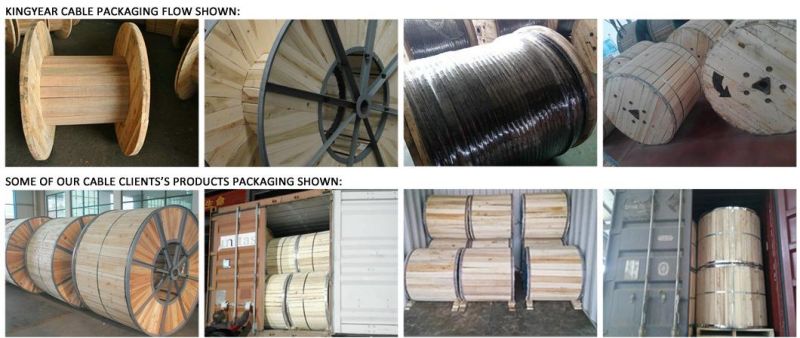

- Transport Package：Wooden Drum or Roll, Iron Wooden Drum
- Specification：10-1500 mm2 Size
- Trademark：KINGYEAR
- Origin：Henan, China
- HS Code：7614900000
- Production Capacity：500km,Month
Description
Code NameNominal No./Nominal
diameter of
wires Approximate
Overall
Diameter Linear Mass Rated Strength Max.DC Resistance at 20° C mm2 No./mm mm kg/km KN Ω/Km 10 10 7/1.35 4.05 27.4 1.95 2.8633 16 16 7/1.71 5.13 43.8 3.04 1.7896 25 25 7/2.13 6.39 68.4 4.5 1.1453 40 40 7/2.70 8.1 109.4 6.8 0.7158 63 63 7/3.39 10.17 172.3 10.39 0.4545 100 100 19/2.59 12.95 274.8 17 0.2877 125 125 19/2.89 14.45 343.6 21.25 0.2302 160 160 19/3.27 16.35. 439.8 26.4 0.1798 200 200 19/3.66 18.3 549.7 32 0.1439 250 250 19/4.09 20.45 687.1 40 0.1151 315 315 37/3.29 23.03 867.9 51.97 0.0916 400 400 37/3.71 25.97 1102 64 0.0721 450 450 37/3.94 27.58 1239.8 72 0.0641 500 500 37/4.15 29.05. 1377.6 80 0.0577 560 560 37/4.39 30.73 1542.9 89.6 0.0515 630 630 61/3.63 32.67 1738.3 100.8 0.0458 710 710 61/3.85 34.65 1959.1 113.6 0.0407 800 800 61/4.09 36.81 2207.4 128 0.0361 900 900 61/4.33 38.97 2483.3 144 0.0321 1000 1000 61/4.57 41.13 2759.2 160 0.0289 1120 1120 91/3.96 43.56 3093.5 179.2 0.0258 1250 1250 91/4.18 45.98. 3452.6 200 0.0231 1400 1400 91/4.43 48.73 3866.9 224 0.0207 1500 1500 91/4.58 50.38 4143.1 240 0.0193 Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating* AWG&MCM mm^2 No.xmm mm kg/km KN Ω/Km A 6 13.2 7/1.55 4.65 36.2 4.18 2.5361 69 4 21.1 7/1.96 5.88 57.9 6.69 1.586 93 2 33.5 7/2.47 7.41 92 10.6 0.9987 123 0 53.5 7/3.12 9.36 146.8 17 0.62592 165 2/0 67.3 7/3.50 10.5 184.8 20.4 0.49738 190 3/0 84.9 7/3.93 11.79 233 25.7 0.3945 219 4/0 107 7/4.42 13.26 294.7 32.5 0.31188 253 250 126 19/2.91 14.55 346.7 38.8 0.26509 280 300 152 19/3.19 15.95 416.7 46.6 0.22059 313 350 178 19/3.45 17.25 487.3 52 0.1886 345 400 203 19/3.69 18.45 557.5 59.5 0.16486 375 450 228 19/3.91 19.55 626 66.8 0.14683 402 500 253 19/4.12 20.6 695 74.2 0.13224 429 550 279 37/3.10 21.7 766.2 83.9 0.11995 455 600 303 37/3.23 22.61 831.9 91 0.11049 478 650 330 37/3.37 23.59 905.5 94.9 0.1015 504 700 354 37/3.49 24.43 971.2 101 0.09464 525 750 381 37/3.62 25.34 1045 109 0.08796 549 800 404 37/3.73 26.11 1109 116 0.08285 569 900 456 37/3.96 27.72 1250 131 0.07351 612 1000 508 37/4.18 29.26 1393 146 0.06597 653 1250 631 61/3.63 32.67 1732 179 0.05306 743 1500 759 61/3.98 35.82 2082 215 0.04414 827 1750 886 61/4.30 38.7 2431 251 0.03781 904
Code NameTotal Area 1350 Grade Equivalent No./Dia.
of Wire Approx. Overall Diameter Approx. Weight Calculated Breaking
Load Max.DC Resistance at 20° C AWG or MCM mm2 (Approx.)
AWG or MCM No. / mm mm kg/km kN Ohm/km Akron 30.6 15.5 6 7/1.68 5.04 43 4.9 2.1588 Alton 48.7 24.7 4 7/2.12 6.36 68 7.8 1.3557 Ames 77.5 39.2 2 7/2.67 8.01 108 12.4 0.8547 Azusa 123.3 62.4 1 7/3.37 10.11 171 18.9 0.5365 Anaheim 155.4 78.6 2/0 7/3.78 11.34 216 23.8 0.4264 Amherst 195.7 99.3 3/0 7/4.25 12.75 272 30 0.3373 Alliance 246.9 125.1 4/0 7/4.77 14.31 343 37.8 0.2678 Butte 312.8 158.6 266.8 19/3.26 16.3 435 46.5 0.2112 Canton 394.5 199.9 336.4 19/3.66 18.3 548 58.6 0.1676 Cairo 465.4 236.4 397.5 19/3.98 19.9 649 69.3 0.1417 Darien 559.5 283.6 477 19/4.36 21.8 778 83.1 0.1181 Elgin 652.6 331 556.5 19/4.71 23.55 908 97 0.1012 Flint 740.8 374.5 636 19/3.59 25.13 1028 107.4 0.0894 Greeley 927.2 469.6 795 19/4.02 28.14 1289 134.6 0.0713
As a leading manufacture in China,Our customers come from around the world,Welcome to visit us at any time!
Just leave your message if you are interested in our products,We will contact you very soon!
-----------------------------------------------------
-----------------------------------------------------
diameter of
wires
Overall
Diameter
Code Name
of Wire
Load
AWG or MCM
