• Model NO.：Building wire
• Material Shape：Round Wire
• Range of Application：Building Wires
• Certification：ISO9001, CE, CCC
• Brand：Rmjt
• Product Name：300V,500V PVC Insulated Flexible Twisted Wire
• Type of Comanpy：Manufacturer
• Conductor：Copper or Aluminium, Solid
• Number of Cores：Two
• Standard：BS 6500
• Wire Type：H05V-S
• Other Special Characteristics：Design and Manufacture According to The Requiremen
• Long-Term Working Temperature：Not Be Higher Than 70°c
• Rated Voltage：450,750V
• Advantages：High Quality, Competitive Price, Fast Delivery
• Transport Package：Package in Rolls or as Your Request
• Specification：0.5mm2-400mm2
• Trademark：RMJT
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：50000km Each Month

Basic Info.

Model NO. Building wire Material Shape Round Wire Range of Application Building Wires Certification ISO9001, CE, CCC Brand Rmjt Product Name 300V/500V PVC Insulated Flexible Twisted Wire Type of Comanpy Manufacturer Conductor Copper or Aluminium, Solid Number of Cores Two Standard BS 6500 Wire Type H05V-S Other Special Characteristics Design and Manufacture According to The Requiremen Long-Term Working Temperature Not Be Higher Than 70°c Rated Voltage 450/750V Advantages High Quality, Competitive Price, Fast Delivery Transport Package Package in Rolls or as Your Request Specification 0.5mm2-400mm2 Trademark RMJT Origin Henan, China HS Code 8544492100 Production Capacity 50000km Each Month

Product Description

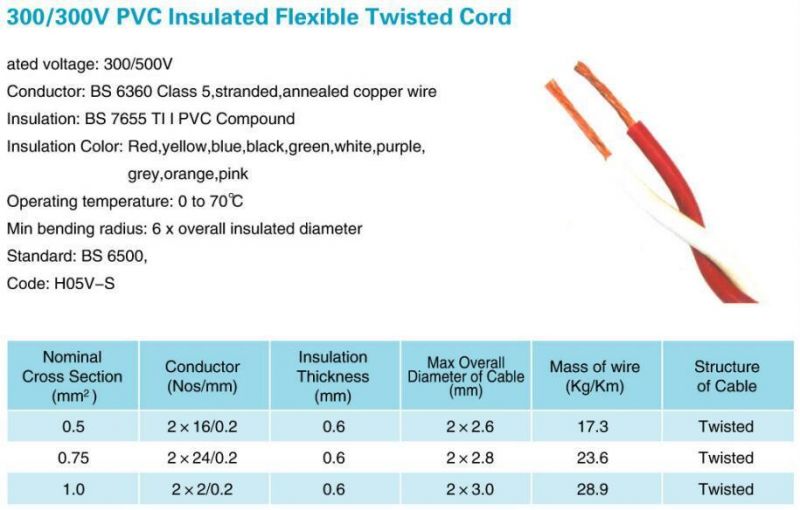

300/500V PVC insulated twinsted wire rvs

Cross Section  (mm2)	Conductor Construction  (No/mm)	Insulation Thickness  (mm)	Overall Diameter  Max (mm)	Min Insulation  Resistance@ 70ºC  (ohm/Km)	Weight Approx (Kg/Km)
1x0.5	1/0.80	0.6	2.4	0.015	8
1x0.75	7/0.97	0.6	2.8	0.012	11
1x0.75	1/0.97	0.6	2.6	0.012	11
1x1.0	7/0.43	0.6	3.0	/	14
1x1.0	1/1.13	0.6	2.8	0.011	14
1x1.5	7/0.52	0.7	3.4	0.010	21
1x1.5	1x1.38	0.7	3.3	0.011	20
1x2.5	7/0.67	0.8	4.2	0.009	32
1x2.5	1x1.78	0.8	3.9	0.010	31
1x4	7/0.85	0.8	4.8	0.0077	45
1x4	1/2.25	0.8	4.4	0.0085	45
1x6	7/1.04	0.8	5.4	0.0065	65
1x6	1/2.76	0.8	4.9	0.0070	65
1x10	7/1.35	1.0	6.8	0.0065	110
1x10	1/3.57	1.0	6.4	0.0070	110
1x16	7/1.70	1.0	8.0	0.0050	165
1x25	7/2.14	1.2	9.8	0.0050	264
1x35	7/2.52	1.2	11.0	0.0040	360
1x50	19/1.78	1.4	13.0	0.0045	490
1x70	19/2.14	1.4	15.0	0.0035	685
1x95	19/2.52	1.6	17.5	0.0035	946
1x120	37/2.03	1.6	19.0	0.0032	1181
1x150	37/2.25	1.8	21.0	0.0032	1453
1x185	37/2.52	2.0	23.5	0.0032	1821
1x240	61/2.24	2.2	26.5	0.0032	2383
1x300	61/2.50	2.4	29.5	0.0030	2983
1x400	61/2.85	2.6	33.5	0.0028	3800
