• Model NO.：BV
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC, RoHS
• Brand：Yongkuntai
• Product Name：PVC Wire
• PVC Wire Length：100m,Roll
• Voltage Range：450,750V
• PVC Wire Color：as Require
• National Standard：3c,CE,SGS,RoHS
• PVC Wire Type：Copper Wire
• Cross Area：1.5-2.5-4-........Square mm2
• PVC Wire Shape：Round Wire
• Delivery：15-20days After Receive The Payment
• PVC Wire Conductor：Bare Copper
• Transport Package：Plastic Film Inside, PP Woven Bag, Carton Outside
• Specification：CE, RoHS, ISO 9001
• Trademark：YONGKUNTAI
• Origin：Guangzhou, Shenzhen
• HS Code：8544492900
• Production Capacity：3, 000, 000 Meter , Month

Code
 Designation
 by  IEC
Code
Designation
 by GB
Rated Voltage
Name
Application
      Rated  Temperature
60227 IEC 01
BV
300/500V
Copper conductor PVC insulated rigid cable (electrical wire)
Fixed laid indoors
Instrument etc.

0°C to +70°C
60227 IEC 05
BV
450/750V

BLV
450/750V
Aluminum conductor PVC insulated rigid cable (electrical wire)

BVR
450/750V
Copper conductor PVC insulated semi-flexible cable (electrical wire)
Be for laying permanent place where flexible required.


0°C to +70°C
60227 IEC10
BVV
300/500V
Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire)
Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground.


0°C to +70°C


BLVV

300/500V

Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire)

BVVB
300/500V

Copper conductor PVC insulated PVC sheathed flat cable (electrical wire)

BLVVB
300/500V

Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire)
60227 IEC 02
RV
450/750V

Copper conductor PVC insulated flexible connector cable (electrical wire)
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required


0°C to +70°C
60227 IEC 06
RV
300/500V
60227 IEC 42
RVB
300/300V
Copper conductor PVC insulated flat flexible connector cable (electrical wire)

RVS
300/300V

Copper conductor PVC insulated flexible twisting connector cable (electrical wire)
60227 IEC 52


RVV

300/300V

Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)
60227 IEC 53
RVV
300/500V
 DescriptionInstallation Place  XLPE Insulated, PVC Sheathed Power CableLaid in indoor, outdoor, tunnels, cable canals, reinforced concrete pipelines and loose soil. Cable should not bear outer mechanic force, but can bear a certain tractional force. XLPE Insulated, Steel Tape Armored and PVC Sheathed Power Cable.Laid underground. Cable can bear outer mechanic force, but should not bear large tractional force. XLPE Insulated ,fine Steel Wire Armored and PVC Sheathed Power CableLaid in indoor, tunnels and mines. Cable can bear outer mechanic force and fairly large tractional force. XLPE Insulated, thick Steel Wire Armored and PVC Sheathed Power Cable.Laid in vertical section, indoor, tunnels and mines. Cable can bear outer mechanic force and very large tractional force.

Payment Term: 30%deposit before production 70%balance payment before delivery.
Delivery Time: 15-20 days after receive your payment.

Package: 100m/roll, film package, white bags or as required.

Factory Information:


           Shenzhen Jixing Electric Wire&Cable Co.,Ltd, is a medium enterprise specialized in the production of wire and cable.

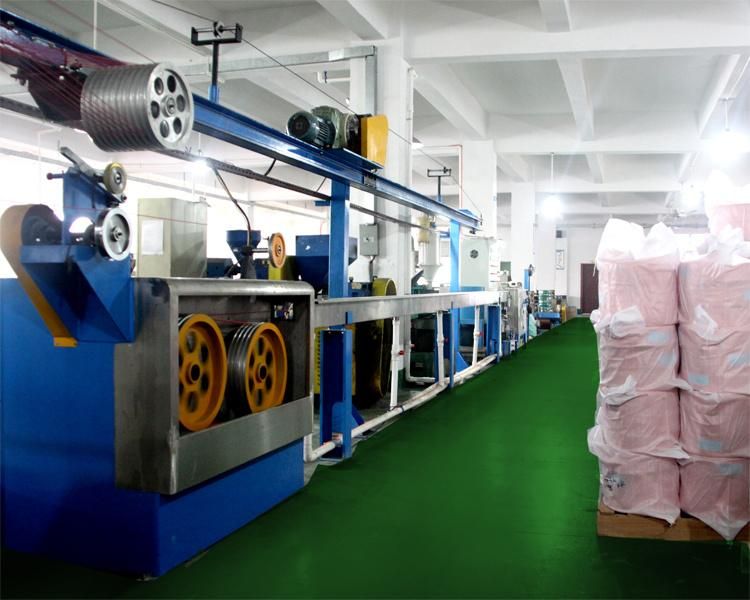

Our factory covers and area of 12,000 square meters, we have 126 staff, including 11 engineersand technical experts.Technical operation of the frontline workers have come up to the average of national requirements. We have engaged in wire and cable more than 20 years, we have a whole advanced production equipment and well management system, rich experience and outstanding talented.
Because of our excellent quality and best service, we enjoy high reputations and strong supports from China and Abroad.
        Our products: 0.6/1kV PVC, XLPE insulated armored power cable, environment-friendly
LSZH (low smoke halogen free) cable, flame retardant cable, branching wire, aluminum cable, B series PVC/XLPE sheath cable and other varies of welding cable, control cable and internet cable, more than 28 kinds and 6400 specifications, all the cable are low voltage(450/750V, 300/500V and below) and we have received ISO9001, CE, ROHS quality system certification.


Our Principle: Make High Quality Products Gain Your Trust! Welcome to Inquiry and Visit!
