• Model NO.：AAAC
• Material Shape：Round Wire
• Certification：ISO9001, CCC, VDE
• Brand：Rmjt
• Standard：BS 3242, IEC61089, DIN48201, BS3242, Astmb399
• Voltage：High Voltage
• Product：AAAC Conductor
• Export Main Market：South Amercia
• Transport Package：Wooden Drum
• Specification：15.48-506.71mm2
• Trademark：RMJT
• Origin：China
• HS Code：7614900000
• Production Capacity：50000km,Month

Basic Info.

Model NO. AAAC Material Shape Round Wire Certification ISO9001, CCC, VDE Brand Rmjt Standard BS 3242, IEC61089, DIN48201, BS3242, Astmb399 Voltage High Voltage Product AAAC Conductor Export Main Market South Amercia Transport Package Wooden Drum Specification 15.48-506.71mm2 Trademark RMJT Origin China HS Code 7614900000 Production Capacity 50000km/Month

Product Description

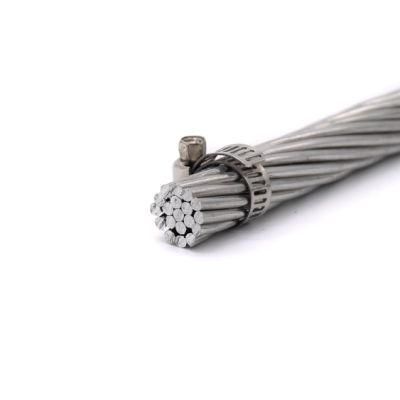

Overhead Bare Conductor Aluminium Alloy Conductor AAAC Conductor

1.Application
AAAC conductor is also referred to as aluminum alloy stranded conductor,  this products suitable for overhead power transmission.

2.Standard
AAAC-6201 bare conductor meets or exceeds the following ASTM standards
•B-3242 Concentric-Lay-Stranded 6201 Aluminum Alloy Conductors.

3.Specification

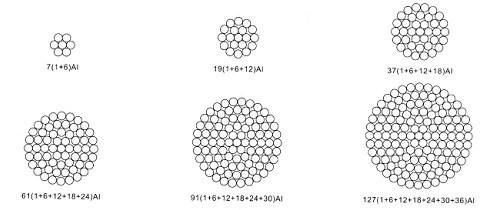

AAAC( Aluminum alloy conductor): Aluminum alloy 6201 wires. Concentrically stranded.

Code name	Nominal area	Stranding	Sectional area	Diameter of conductor	Linear mass	Rated strength	Max. DC resistance at 20ºC
	mm2	No./mm	mm2	mm	kg/km	kgf	Ω/km
Box	15	7/1.85	18.82	5.55	51	537	1.7495
Acacia	20	7/2.08	23.79	6.24	65	680	1.384
Almond	25	7/2.34	30.1	7.02	82	861	1.0934
Cedar	30	7/2.54	35.47	7.62	97	1014	0.9281
-	35	7/2.77	42.18	8.31	115	1205	0.7804
Fir	40	7/2.95	47.87	8.85	131	1367	0.688
Hazel	50	7/3.30	59.87	9.9	164	1711	0.5498
Pine	60	7/3.61	71.65	10.83	196	2048	0.4594
-	70	7/3.91	84.05	11.73	230	2402	0.3917
Willow	75	7/4.04	89.73	12.12	245	2565	0.3669
-	80	7/4.19	96.52	12.57	264	2758	0.3441
-	90	7/4.44	108	13.32	298	3112	0.3023
Oak	100	7/4.65	118.9	13.95	325	3398	0.2769
-	100	19/2.82	118.7	14.1	326	3393	0.2787
Mulberry	125	19/3.18	150.9	15.9	415	4312	0.2192
Ash	150	19/3.48	180.7	17.4	497	5164	0.1831
Elm	175	19/3.76	211	18.8	580	6030	0.1568
Poplar	200	37/2.87	239.4	20.09	659	8841	0.1385
-	225	37/3.05	270.3	21.35	744	7724	0.1227
Sycamore	250	37/3.22	303.2	22.54	835	8664	0.1093
Upas	300	37/3.53	362.1	24.71	997	10350	0.09156
Walnut	350	37/3.81	421.8	26.67	1162	12053	0.0786
Yew	400	37/4.06	479	28.42	1319	13685	0.06921
Totara	425	37/4.14	498.1	28.98	1372	14233	0.06656
Rubus	500	61/3.50	586.9	31.5	1620	16771	0.05662
Araucaria	700	61/4.14	821.1	37.26	2266	23450	0.04047

4.Production process:

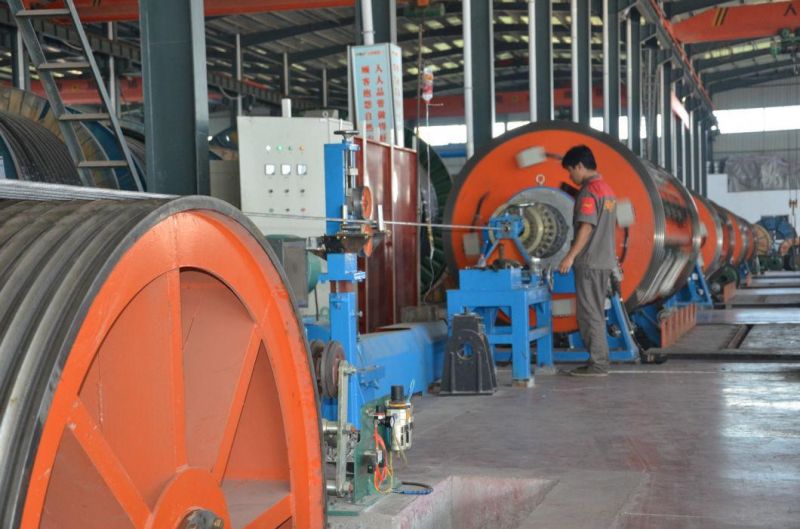

AAAC conductor producing process is drawing stranding and cabling, our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.


5.Package

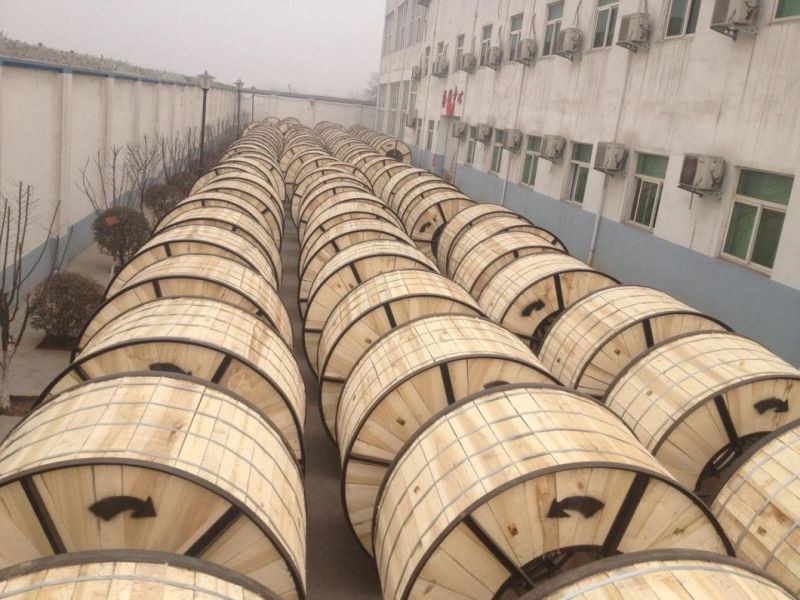

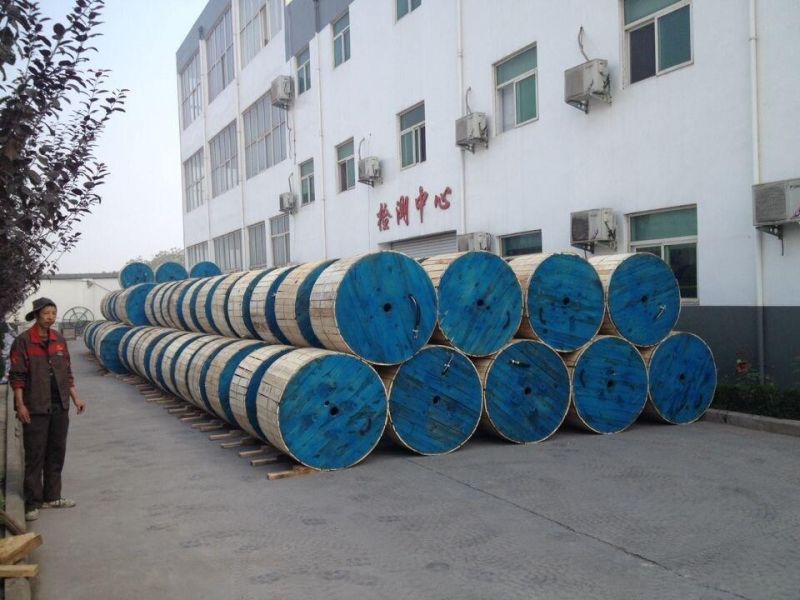

Packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.


6.About us:

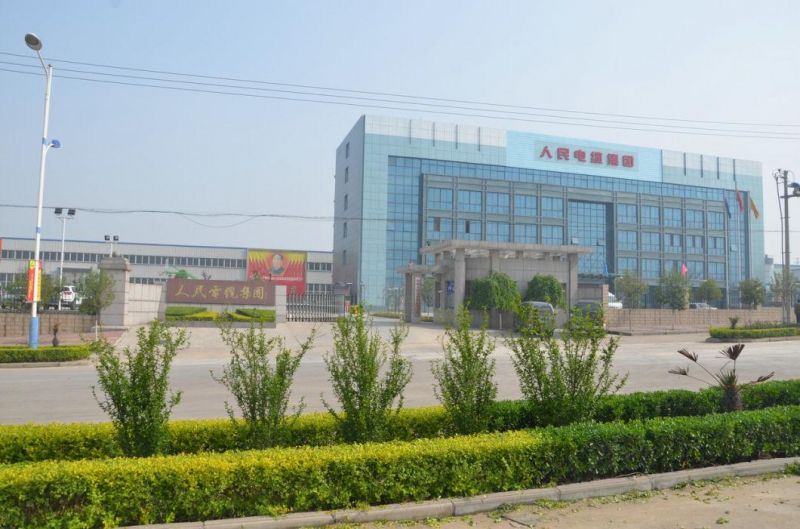

People's Cable Group Co.,Ltd was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.


7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

8.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!


9.Contact us
Factory Add: No. 13th, Yongding Road, Gongyi, Zhengzhou city, Henan province, China.
