3*70+70mm2 Quadruplex Cable ACSR with Neutral Messenger
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：No
- Insulation Material：XLPE or PVC or PE
Base Info
- Model NO.：ABC Cable
- Material Shape：Round Wire
- Range of Application：Power Transmission
- Certification：ISO9001
- Brand：Yifang
- Product Name：Triplex Service Drop Aluminum Cable Conductor
- Transport Package：Drum or as Your Request
- Specification：IEC, JIS, DIN, ANSI, CSA. etc
- Trademark：YIFANG
- Origin：China
- HS Code：8544492100
- Production Capacity：5, 000 Kilometers Per Month
Description
Basic Info.
Model NO. ABC Cable Material Shape Round Wire Range of Application Power Transmission Certification ISO9001 Brand Yifang Product Name Triplex Service Drop Aluminum Cable Conductor Transport Package Drum or as Your Request Specification IEC, JIS, DIN, ANSI, CSA. etc Trademark YIFANG Origin China HS Code 8544492100 Production Capacity 5, 000 Kilometers Per MonthProduct Description

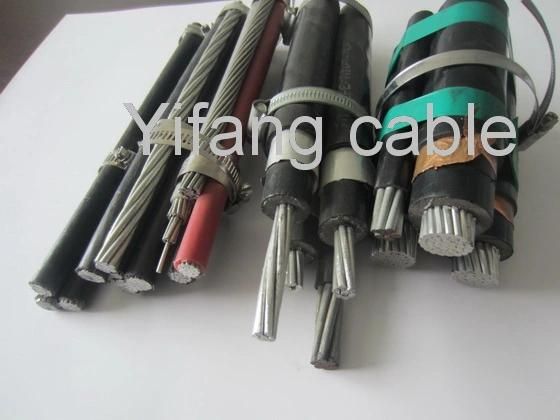

Triplex Service Drop Aluminum Conductors AAC Neutral-MessengerTriplex Service Drop Aluminum Conductors With Full Size ACSR Messenger
Triplex Service Drop Aluminum Conductors With ACSR Reduced Size Messenger
Triplex Service Drop Aluminum Conductors AAAC 6201 Alloy Neutral-Messenger
Triplex Service Drop Aluminum Conductors AAAC 6201 Alloy Reduced Neutral-Messenger
Applications
To supply power from the utility s lines to the consumer sweatherhead. For service at 600 volts or less (phase to phase) at a conductor temperature of 75C maximum for polyethylene Insulation
Or 90C maximum for cross linked insulation.
Construction

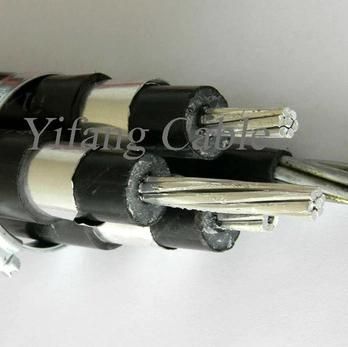

Concentric strand or compressed 1350-H19 conductor, polyethylene or cross linked polyethylene insulation, concentric strand AAC, ACSR or 6201 alloy neutral messenger.
Standards
B-230 Aluminum Wire 1350-H19 for Electrical Purposes.
B-231 Aluminum Conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Triplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA body S-76-474.
| Item # | Phase conductor size AWG | Phase conductor stranding | Phase conductor Insulation Thickness | Bare Neutral Messenger Size AWG | Bare Neutral Messenger Stranding | Bare Neutral Messenger breaking strength | Weight Per 1000ft-XLP | Weight Per 1000ft-Poly | Ampacity -XLP | Ampacity -Poly |
| Haiotis | 6 | Solid | 45 mls | 6 | 7 | 563 Lbs | 102.5 Lbs | 98.8 Lbs | 85 Amps | 70 Amps |
| Patella | 6 | 7/w | 45 mls | 6 | 7 | 563 Lbs | 109.1 Lbs | 101.6 Lbs | 85 Amps | 70 Amps |
| Fusus | 4 | Solid | 45 mls | 4 | 7 | 881 Lbs | 151.9 Lbs | 147.6 Lbs | 115 Amps | 90 Amps |
| Oyster | 4 | 7/w | 45 mls | 4 | 7 | 881 Lbs | 161.8 Lbs | 151.7 Lbs | 115 Amps | 90 Amps |
| Clam | 2 | 7/w | 45 mls | 2 | 7 | 1350 Lbs | 243.2 Lbs | 229.2 Lbs | 150 Amps | 120 Amps |
| Murex | 1/0 | 7/w | 60 mls | 1/0 | 7 | 1990 Lbs | 395.1 Lbs | 369.4 Lbs | 205 Amps | 160 Amps |
| Purpura | 1/0 | 19/w | 60 mls | 1/0 | 7 | 1990 Lbs | 386.1 Lbs | 369.4 Lbs | 205 Amps | 160 Amps |
| Nassa | 2/0 | 7/w | 60 mls | 2/0 | 7 | 2510 Lbs | 485.8 Lbs | 455.3 Lbs | 235 Amps | 185 Amps |
| Melita | 3/0 | 19/w | 60 mls | 3/0 | 19 | 3310 Lbs | 585.2 Lbs | 562.9 Lbs | 275 Amps | 215 Amps |
| Portunus | 4/0 | 19/w | 60 mls | 4/0 | 19 | 4020 Lbs | 723.9 Lbs | 697.3 Lbs | 315 Amps | 245 Amps |
| Nannynose | 336.4 | 19/w | 80 mls | 336.4 | 19 | 6146 Lbs | 1160.4 Lbs | 1118.0 Lbs | 420 Amps | 325 Amps |
| Paludina | 6 | Solid | 45 mls | 6 | 6/1 | 1190 Lbs | 114 Lbs | 113 Lbs | 85 Amps | 70 Amps |
| Voluta | 6 | Solid | 45 mls | 6 | 6/1 | 1190 Lbs | 114 Lbs | 113 Lbs | 85 Amps | 70 Amps |
| Whelk | 4 | Solid | 45 mls | 4 | 6/1 | 1860 Lbs | 169 Lbs | 165 Lbs | 115 Amps | 90 Amps |
| Periwinkle | 4 | 7 | 45 mls | 4 | 6/1 | 1860 Lbs | 176 Lbs | 172 Lbs | 115 Amps | 90 Amps |
| Conch | 2 | 7 | 45 mls | 2 | 6/1 | 2850 Lbs | 267 Lbs | 261 Lbs | 150 Amps | 120 Amps |
| Neritina | 1/0 | 7 | 60 mls | 1/0 | 6/1 | 4380 Lbs | 530 Lbs | 419 Lbs | 205 Amps | 160 Amps |
| Cenia | 1/0 | 19 | 60 mls | 1/0 | 6/1 | 4380 Lbs | 426 Lbs | 416 Lbs | 205 Amps | 160 Amps |
| Runcina | 2/0 | 7 | 60 mls | 2/0 | 6/1 | 5310 Lbs | 530 Lbs | 519 Lbs | 235 Amps | 185 Amps |
| Triton | 2/0 | 19 | 60 mls | 2/0 | 6/1 | 5310 Lbs | 526 Lbs | 514 Lbs | 235 Amps | 185 Amps |
| Cherrystone | 3/0 | 7 | 60 mls | 3/0 | 6/1 | 6620 Lbs | 656 Lbs | 643 Lbs | 250 Amps | 200 Amps |
| Mursia | 3/0 | 19 | 60 mls | 3/0 | 6/1 | 6620 Lbs | 650 Lbs | 638 Lbs | 250 Amps | 200 Amps |
| Razor | 4/0 | 7 | 60 mls | 4/0 | 6/1 | 8350 Lbs | 814 Lbs | 799 Lbs | 315 Amps | 245 Amps |
| Zuzara | 4/0 | 19 | 60 mls | 4/0 | 6/1 | 8350 Lbs | 805 Lbs | 792 Lbs | 315 Amps | 245 Amps |
| Limpet | 336.4 | 19 | 80 mls | 336.4 | 18/1 | 8680 Lbs | 1209 Lbs | 1167 Lbs | 420 Amps | 325 Amps |
| Scallop | 4 | Solid | 45 mls | 6 | 6/1 | 1190 Lbs | 148 Lbs | 144 Lbs | 115 Amps | 90 Amps |
| Strombus | 4 | 7/w | 45 mls | 6 | 6/1 | 1190 Lbs | 158 Lbs | 148 Lbs | 115 Amps | 90 Amps |
| Cockle | 2 | 7/w | 45 mls | 4 | 6/1 | 1860 Lbs | 233 Lbs | 227 Lbs | 150 Amps | 120 Amps |
| Janthina | 1/0 | 7/w | 60 mls | 2 | 6/1 | 2850 Lbs | 376 Lbs | 365 Lbs | 205 Amps | 160 Amps |
| Ranella | 1/0 | 19/w | 60 mls | 2 | 6/1 | 2850 Lbs | 372 Lbs | 362 Lbs | 205 Amps | 160 Amps |
| Cavolinia | 2/0 | 7/w | 60 mls | 1 | 6/1 | 3550 Lbs | 462 Lbs | 451 Lbs | 235 Amps | 185 Amps |
| Clio | 2/0 | 19/w | 60 mls | 1 | 6/1 | 3550 Lbs | 458 Lbs | 446 Lbs | 235 Amps | 185 Amps |
| Sanddollar | 3/0 | 7/w | 60 mls | 1/0 | 6/1 | 4380 Lbs | 570 Lbs | 557 Lbs | 275 Amps | 215 Amps |
| Aega | 3/0 | 19/w | 60 mls | 1/0 | 6/1 | 4380 Lbs | 565 Lbs | 552 Lbs | 275 Amps | 215 Amps |
| Cuttlefish | 4/0 | 7/w | 60 mls | 2/0 | 6/1 | 5310 Lbs | 706 Lbs | 691 Lbs | 315 Amps | 245 Amps |
| Cerapus | 4/0 | 19/w | 60 mls | 2/0 | 6/1 | 5310 Lbs | 699 Lbs | 684 Lbs | 315 Amps | 245 Amps |
| Cowry | 336.4 | 19/w | 80 mls | 4/0 | 6/1 | 8350 Lbs | 1135 Lbs | 1093 Lbs | 420 Amps | 325 Amps |
| Minex | 6 | Solid | 45 mls | 6 | 7 | 1110 Lbs | 106.6 Lbs | 102.9 Lbs | 85 Amps | 70 Amps |
| Hippa | 6 | 7 | 45 mls | 6 | 7 | 1110 Lbs | 113.2 Lbs | 105.7 Lbs | 85 Amps | 70 Amps |
| Prawn | 4 | Solid | 45 mls | 4 | 7 | 1760 Lbs | 158.4 Lbs | 154.1 Lbs | 115 Amps | 90 Amps |
| Barnacles | 4 | 7 | 45 mls | 4 | 7 | 1760 Lbs | 168.3 Lbs | 158.2 Lbs | 115 Amps | 90 Amps |
| Shrimp | 2 | 7 | 45 mls | 2 | 7 | 2800 Lbs | 253.7 Lbs | 239.7 Lbs | 150 Amps | 120 Amps |
| Gammarus | 1/0 | 7 | 60 mls | 1/0 | 7 | 4460 Lbs | 411.7 Lbs | 386.0 Lbs | 205 Amps | 160 Amps |
| Leda | 1/0 | 19 | 60 mls | 1/0 | 7 | 4460 Lbs | 402.7 Lbs | 386.0 Lbs | 205 Amps | 160 Amps |
| Dungenese | 2/0 | 7 | 60 mls | 2/0 | 7 | 5390 Lbs | 506.8 Lbs | 476.3 Lbs | 235 Amps | 185 Amps |
| Cyclops | 2/0 | 19 | 60 mls | 2/0 | 7 | 5390 Lbs | 495.3 Lbs | 476.3 Lbs | 235 Amps | 185 Amps |
| Flustra | 3/0 | 19 | 60 mls | 3/0 | 7 | 6790 Lbs | 611.4 Lbs | 589.1 Lbs | 275 Amps | 215 Amps |
| Lepas | 4/0 | 19 | 60 mls | 4/0 | 7 | 8560 Lbs | 757.1 Lbs | 730.5 Lbs | 315 Amps | 245 Amps |
| Artemia | 4 | Solid | 45 mls | 6 | 7 | 1110 Lbs | 141.4 Lbs | 137.1 Lbs | 115 Amps | 90 Amps |
| Crab | 4 | 7 | 45 mls | 6 | 7 | 1110 Lbs | 151.3 Lbs | 141.2 Lbs | 115 Amps | 90 Amps |
| Solaster | 2 | 7 | 45 mls | 4 | 7 | 1760 Lbs | 226.6 Lbs | 212.6 Lbs | 150 Amps | 120 Amps |
| Sandcrab | 1/0 | 7 | 60 mls | 2 | 7 | 2800 Lbs | 368.8 Lbs | 343.1 Lbs | 205 Amps | 160 Amps |
| Echinus | 1/0 | 19 | 60 mls | 2 | 7 | 2800 Lbs | 358.8 Lbs | 343.1 Lbs | 205 Amps | 160 Amps |
| Crayfish | 2/0 | 7 | 60 mls | 1 | 7 | 3530 Lbs | 452.6 Lbs | 422.5 Lbs | 235 Amps | 185 Amps |
| Sipho | 2/0 | 19 | 60 mls | 1 | 7 | 3530 Lbs | 441.0 Lbs | 422.5 Lbs | 235 Amps | 185 Amps |
| Fulgar | 3/0 | 19 | 60 mls | 1/0 | 7 | 4460 Lbs | 543.4 Lbs | 521.1 Lbs | 275 Amps | 215 Amps |
| Arca | 4/0 | 19 | 60 mls | 2/0 | 7 | 5390 Lbs | 671.2 Lbs | 644.6 Lbs | 315 Amps | 245 Amps |

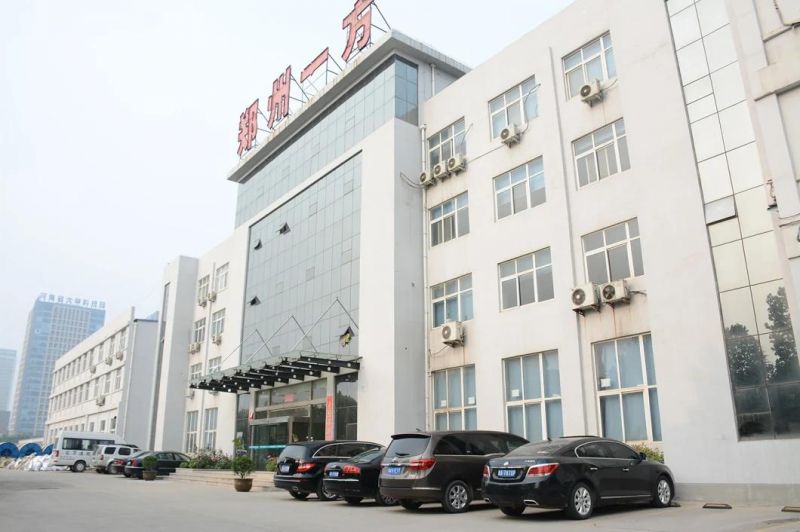

Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
