• Model NO.：GYFTS Optical Fiber Cable Gel Free
• Core：Multicore
• Certification：RoHS, UL, ISO9001
• Brand：OEM
• Sheath Material：PE
• Transport Package：Carton Box
• Specification：Fiber cable
• Trademark：Opelink
• Origin：China
• HS Code：85447000
• Production Capacity：50, 000 Core Km

Basic Info.

Model NO. GYFTS Optical Fiber Cable Gel Free Core Multicore Certification RoHS, UL, ISO9001 Brand OEM Sheath Material PE Transport Package Carton Box Specification Fiber cable Trademark Opelink Origin China HS Code 85447000 Production Capacity 50, 000 Core Km

Product Description

2-144Cores GYFTS Gel Free Optical Fiber Cable Gel Free

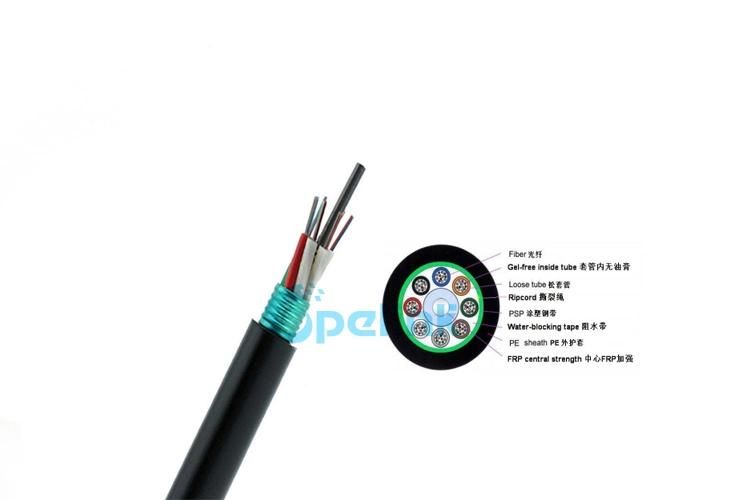

Description:The fibers, single mode or muti mode , are positioned in a loose tube made of a high modulus plastic. The tubes inside are gelfree. A FRP, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core,water-blocking tape been layed outside of the cable core to protect it from water ingress. The cable is completed with a PE sheath.


Application:Suitable for aerial or pipeline laying method.

Features:Good mechanical and temperature performance Gel free loose tube. Crush resistance and flexibility PE sheath protects cable from ultraviolet radiation
FRP used as the central strength member PSP and water-blokcing tape enhancing moisture-proof


Mechanical Parameters:

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/ Short Term N	Crush Resistance Long/Short Term N/100mm	Minimum Bending Radius Long /Short Term	Storage  temperature (°C)
GYFTS 2-60	2-60	9.0	110	2500/3500	300/1000	10D/20D	-40+60
GYFTS 62-72	62-72	10.5	120	2500/3500	300/1000	10D/20D	-40+60
GYFTS 74-96	74-96	12.5	180	2500/3500	300/1000	10D/20D	-40+60
GYFTS 98-144	98-144	15	245	2500/3500	300/1000	10D/20D	-40+60

note:For more details, please contact our sales










-----------------------------------------------------FAQ------------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
