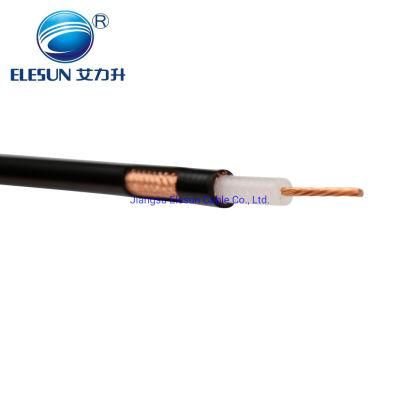

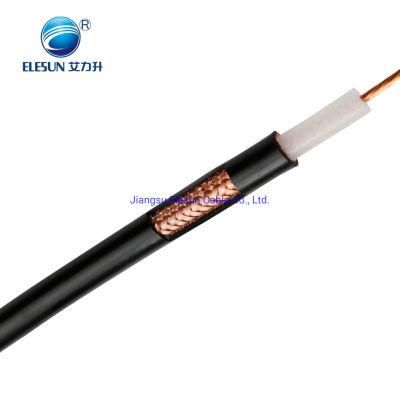

Rg213 Rg223 Rg214/ U Coaxial Cable Copper Wire for Communication Cables for TV Antenna
Jiangsu Elesun Cable Co., Ltd.- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
Base Info
- Model NO.：RG223
- Type：Rg223
- Material Shape：Round Wire
- Conductor Type：Stranded
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, UL
- Model：Rg223
- Brand：Elesun
- Material of Inner Conductor：Sc(Silver Copper)
- Structure of Inner Conductor：1,0.90mm
- Material of Insulation：Solid PE
- Diameter of Insulation：2.95mm
- Material of Braiding(Double Shielding)：Sc(Silver Copper)
- Structure of Braiding(Double Shielding)：112+128 *0.12mm
- Material of Jacket：PVC
- Diameter of Jacket：5.30mm
- Working Temperature：-40ºC,90ºC
- Voltage：1900V
- Transport Package：100m,Roll,CTN
- Specification：34*33*19cm
- Trademark：ELESUN
- Origin：China
- HS Code：8544200000
- Production Capacity：10000m,Day
- Package size per unit product：38.00cm * 38.00cm * 30.00cm
- Gross weight per unit product：15.000kg
Description
RG223/U coaxial cable specificationsMaterial of Inner Conductor SC(Silver Copper) Structure of Inner Conductor 1/0.90mm Material of Insulation Solid PE Diameter of Insulation 2.95mm Material of Braiding(Double Shielding) SC(Silver Copper) Structure of Braiding(Double Shielding) 112+128 *0.12mm Material of Jacket PVC Diameter of Jacket 5.30mm Working temp -40ºC/90ºC Impedance 50Ω±2 Voltage 1900V Weight 55KG/KM
