Horizontal Type 2 in 2 out 144 Core Fiber Optic Splice Closure FTTH Box Joint Closure IP68 Inline Box
Hunan Honketel Optical Communication Co., Ltd.- Application:Communication, Medicine, FTTH FTTB FTTX Network
- Type:Single-mode Fiber
- Core:144 Fibers
- Certification:RoHS, UL, CE, ISO9001, CCC
- Brand:OEM
- Cable Entry Ports:2 Inlet 2 Outlet
Base Info
- Model NO.:fiber optical splice closure
- Style:Horizontal
- Protection Grade:IP68
- Material:PP+GF
- Scope of Application:48 Core 96 Core 144 Core
- Gross Weight:5.68kg
- Dimension (mm):645mm(L)*220mm(W)*175mm(H)
- Ambient Temperature:- 40 °c ~ + 80 °c
- Opening Type:Anti-Removable Screw-Type
- Warranty:1 Year
- Service Life:≥20 Years
- Transport Package:Qty: 4 PCS ,Carton
- Specification:: 68*49*41CM
- Trademark:OEM
- Origin:China
- HS Code:85367000
- Production Capacity:1000PCS,Week
Description
IP 68
Technical Parameter
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius ≥ 37.5mm. Low optical loss.

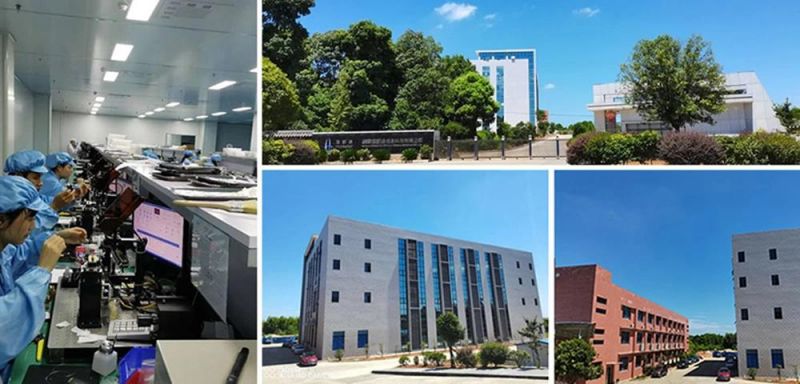

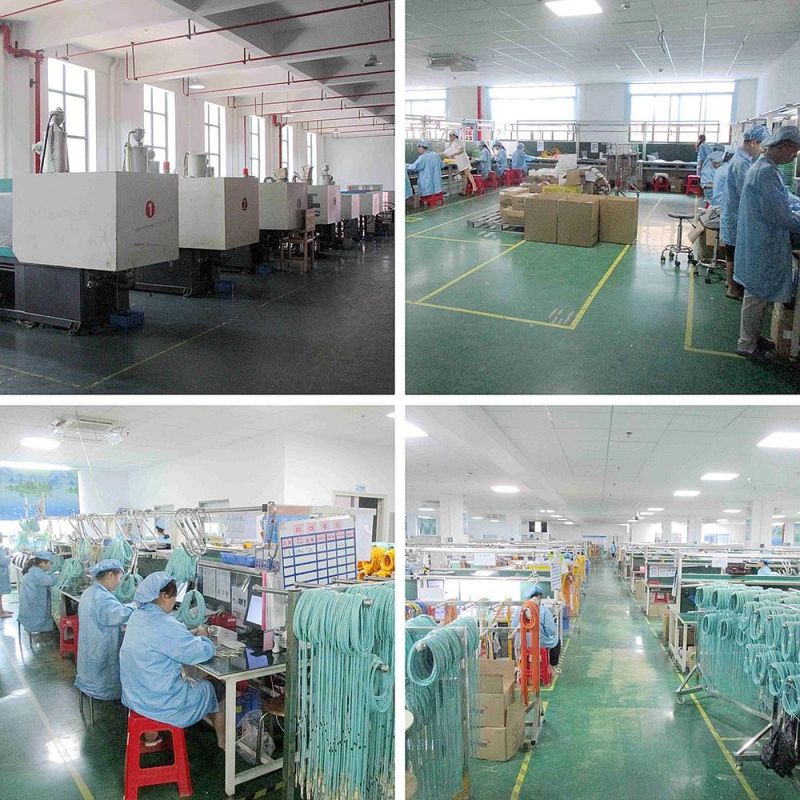

Company Profile
Certifications
Packaging & Shipping
FAQ
Technical Parameter
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius ≥ 37.5mm. Low optical loss.
