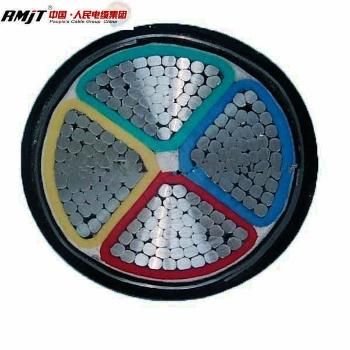

185mm2 400mm2 630mm2 Aluminium Conductor XLPE Insulated Underground Power Cable

People's Cable Group Co., Ltd.

Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication
Voltage：Low and Medium Voltage Cable
Current：DC & AC
Insulation Material：XLPE
Sheath Material：PVC
Material Shape：Round Wire

Base Info

Model NO.：Underground Cable
Wire Core Material：Aluminium
Certification：ISO, CCC, CE, RoHS, UL, VDE
Model：YJLV22
Brand：Rmjt
Color：Red, Black...
Nominal Area：1.5mm2-400mm2
Transport Package：Wooden,Steel Drum
Specification：1.5mm2-800mm2
Trademark：RMJT
Origin：Henan, China
HS Code：8544492100
Production Capacity：5000km Every Month

Description

_{^{Minimum bending radius}}_^Project_{^{Single core cable}}_{^{Multi-core cable}}_^Unarmored_^Armored_^Unarmored_^Armored_{^{Mounting the cable minimum bend radius}}_^20D_^15D_^15D_^12D_{^{Minimum bending radius near the connection box and termination cable}}_^15D_^12D_^12D_^10D
_{^{Power Cable Advantages
1. Occupies a small area. It is usually buried in the soil or laid indoors. In trenches and tunnels, the insulation distance between the lines is small, no towers are used, it occupies less land, and basically does not occupy space on the ground.
2. High reliability. Affected by climatic conditions and surrounding environment, transmission performance is stable and reliability is high.
3. It has more favorable conditions for the development of ultra-high voltage and large capacity, such as low temperature and super-conducting cables.
4. Large distributed capacitance.
5. Low maintenance workload.
6. The possibility of electric shock is small.}}

_{^{Some power cable models and usage scenarios}}_{^{SPEC (mm2)}}_{^{Conductor structure}}_^Insulation_{^{Approx overall}}_^Approx_^Phase_^Neutral_{^{Thickness (mm)}}_{^{diameter (mm)}}_{^{weight (mm)}}_{^{(compacted Al)}}_^(alloy) _^No./mm_^No./mm _^1*16+1*16_^7/1.72_^7/1.72_^1.2_^12.5_^110.1_^1*25+1*25_^7/2.15_^7/2.15_^1.2_^14.9_^163.9_^1*35+1*35_^7/2.54_^7/2.54_^1.4_^17.5_²²⁹_^1*50+1*50_^7/2.92_^7/2.92_^1.4_^20.1_³⁰⁰_^1*70+1*70_^19/2.15_^19/2.15_^1.4_^23.6_^423.2_^1*95+1*95_^19/2.54_^19/2.54_^1.6_^27.6_^585.4_^2*16+1*16_^7/1.72_^7/1.72_^1.2_^14.2_^175.8_^2*25+1*25_^7/2.15_^7/2.15_^1.2_^16.7_^258.4_^2*35+1*35_^7/2.54_^7/2.54_^1.4_^19.7_^361.2_^2*50+1*50_^7/2.92_^7/2.92_^1.4_^22.5_^472.1_^2*70+1*70_^19/2.15_^19/2.15_^1.4_^26.1_^658.3_^2*95+1*95_^19/2.54_^19/2.54_^1.6_^30.5_^908.2_^3*16+1*16_^7/1.72_^7/1.72_^1.2_^16.3_^241.5_^3*25+1*25_^7/2.15_^7/2.15_^1.2_^19.1_^353.6_^3*35+1*35_^7/2.54_^7/2.54_^1.4_^22.5_^493.5_^3*50+1*50_^7/2.92_^7/2.92_^1.4_^25.7_^644.1_^3*70+1*70_^19/2.15_^19/2.15_^1.4_^29.7_^895.2_^3*95+1*95_^19/2.54_^19/2.54_^1.6_^34.6_^1233.5

_{^{VV / VLV : PVC Insulated PVC Sheathed Power Cable
VV22 / VLV22 : PVC Insulated Steel Tape Armoured PVC Sheathed Power Cable
VV32 / VLV32 : PVC Insulated Thin Steel Wire Armoured PVC Sheathed Power Cable
YJV / YJLV / YJY/ YJLY : XLPE Insulated PVC/PE Sheathed Power Cable
YJV22 / YJY23 / YJLV22 / YJLY23 : XLPE Insulated Steel Tape Armored PVC/PE Sheathed Power Cable
YJV32 / YJY33 / YJLV32 / YJLY33 : XLPE Insulated Thin Steel Wire Armored PVC/PE Sheathed Power Cable
YJV42 / YJY43 / YJLV42 / YJLY43 : XLPE Insulated Thick Steel Wire Armored PVC/PE Sheathed Power Cable}}

_^Packing
_{^{Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.}}

_{^{Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!}}

_^Delivery:

_{^{Port : Tianjin, or other ports as per your requirements.}}

_{^{Sea freight : FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.}}

_{^{People's Cable Group Co., Ltd

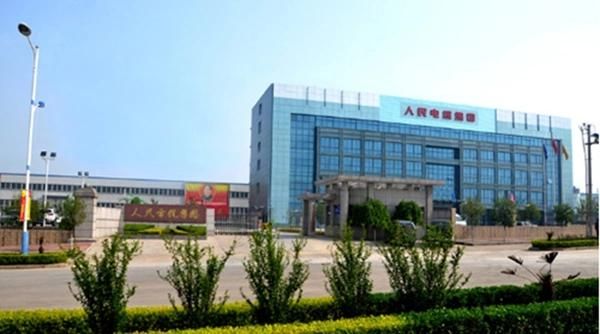

People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.}}

_^FAQ
_{^{Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.}}
