Waterproof 50mm2 XLPE Electrical Cables Prices
People's Cable Group Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：power cable
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, CCC
- Brand：Rmjt
- Product Name：Waterproof 50mm2 XLPE Electrical Wires Prices
- Type of Company：Manufacturer
- Number of Cores：1, 2, 3, 4, 5, 2+1, 3+2
- Related Voltage：0.6,1kv; 8.7,15kv; 12,20kv; 21,35kv; 26,35kv
- Cable Type：with Armoring or Without Armoring
- Product Model：VV, Vlv, Yjv, Yjlv, Yjv22, Yjlv22, Yjv32, Yjlv32..
- Standard：GB-T12706-2008; IEC 60502
- Certificate：ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc
- Package：Wooden Drum, Steel Drum or as Your Requirement
- Country of Origin：Professional Manufacturer of 25 Years in China
- Transport Package：Wooden,Steel Drum
- Specification：1.5mm2-800mm2
- Trademark：RMJT
- Origin：Henan, China
- HS Code：8544492100
- Production Capacity：5000km Every Month
Description
Basic Info.
Model NO. power cable Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CE, CCC Brand Rmjt Product Name Waterproof 50mm2 XLPE Electrical Wires Prices Type of Company Manufacturer Number of Cores 1, 2, 3, 4, 5, 2+1, 3+2 Related Voltage 0.6/1kv; 8.7/15kv; 12/20kv; 21/35kv; 26/35kv Cable Type with Armoring or Without Armoring Product Model VV, Vlv, Yjv, Yjlv, Yjv22, Yjlv22, Yjv32, Yjlv32.. Standard GB-T12706-2008; IEC 60502 Certificate ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc Package Wooden Drum, Steel Drum or as Your Requirement Country of Origin Professional Manufacturer of 25 Years in China Transport Package Wooden/Steel Drum Specification 1.5mm2-800mm2 Trademark RMJT Origin Henan, China HS Code 8544492100 Production Capacity 5000km Every MonthProduct Description
Waterproof 50mm2 xlpe electrical wires pricesApplication:
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be Expected.
Construction:
1 ..... solid (RE) or stranded (RM/SM) bare copper
2 ..... core insulation of polyvinylchloride (PVC)
3 ..... PVC core covering or taping
4 ..... outer sheath of polyvinylchloride (PVC), black
Information:
short circuit temperature on core (max. 5 sec.)
<=300mm² --> 160°C
>300mm² --> 140°C
Standards:
DIN VDE 0276-603
HD 603 S1:1994 + A2:2003
DIN EN 60228 class 1 and 2 (construction)
HD 308 S2 (core identification)
Technical data:
| Nominal voltage Uo/U | [V] | 600 / 1000 volt | |
| Test voltage | [V]AC | 4000 | |
| Temperature range | in motion | -5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Bending radius | single-core style | x diameter | 15 |
| multi-core style | x diameter | 12 | |
| Flammability | standard | EN 60332-1-2 |
Number of cores and Copper Overall Weight Current carrying Current carrying
nominal cross section figure diameter appr. capacity ground capacity air
mm2 kg/km mm kg/km A A
| 1 x 16 RE | 160,0 | 11 | 233,0 | 107 | 84 |
| 1 x 25 RM | 250,0 | 12 | 370,0 | 138 | 114 |
| 1 x 35 RM | 350,0 | 14 | 480,0 | 164 | 139 |
| 1 x 50 RM | 500,0 | 16 | 640,0 | 195 | 169 |
| 1 x 70 RM | 700,0 | 17 | 850,0 | 238 | 213 |
| 1 x 95 RM | 950,0 | 19 | 1.120,0 | 286 | 264 |
| 1 x 120 RM | 1.200,0 | 21 | 1.375,0 | 325 | 307 |
| 1 x 150 RM | 1.500,0 | 23 | 1.660,0 | 365 | 352 |
| 1 x 185 RM | 1.850,0 | 25 | 2.050,0 | 413 | 406 |
| 1 x 240 RM | 2.400,0 | 28 | 2.634,0 | 479 | 483 |
| 1 x 300 RM | 3.000,0 | 30 | 3.295,0 | 541 | 557 |
| 1 x 400 RM | 4.000,0 | 32 | 4.231,0 | 614 | 646 |
| 1 x 500 RM | 5.000,0 | 34 | 5.284,0 | 693 | 747 |
| 1 x 630 RM | 6.300,0 | 42 | 6.850,0 | 777 | 858 |
| 2 x 1,5 RE | 30,0 | 11 | 220,0 | 27 | 20 |
| 2 x 2,5 RE | 50,0 | 12 | 267,0 | 36 | 25 |
| 2 x 4 RE | 80,0 | 14 | 342,0 | 47 | 34 |
| 2 x 6 RE | 120,0 | 15 | 412,0 | 59 | 43 |
| 2 x 10 RE | 200,0 | 16 | 510,0 | 79 | 59 |
| 2 x 16 RM | 320,0 | 18 | 670,0 | 102 | 79 |
| 3 x 1,5 RE | 45,0 | 13 | 244,0 | 27 | 20 |
| 3 x 2,5 RE | 75,0 | 14 | 294,0 | 36 | 25 |
| 3 x 4 RE | 120,0 | 16 | 393,0 | 47 | 34 |
| 3 x 6 RE | 180,0 | 17 | 481,0 | 59 | 43 |
| 3 x 10 RE | 300,0 | 18 | 645,0 | 79 | 59 |
| 3 x 16 RE | 480,0 | 20 | 872,0 | 102 | 79 |
| 3 x 16 RM | 480,0 | 20 | 872,0 | 102 | 79 |
| 3 x 25 RM | 750,0 | 25 | 1.350,0 | 133 | 106 |
| 3 x 35 SM | 1.050,0 | 25 | 1.460,0 | 159 | 129 |
| 3 x 50 SM | 1.500,0 | 29 | 1.750,0 | 188 | 157 |
| 3 x 70 SM | 2.100,0 | 32 | 2.400,0 | 232 | 199 |
| 3 x 95 SM | 2.850,0 | 35 | 3.560,0 | 280 | 246 |
| 3 x 120 SM | 3.600,0 | 38 | 4.310,0 | 318 | 285 |
| 3 x 150 SM | 4.500,0 | 42 | 5.310,0 | 359 | 326 |
| 3 x 185 SM | 5.550,0 | 47 | 6.630,0 | 406 | 374 |
| 3 x 240 SM | 7.200,0 | 53 | 8.480,0 | 473 | 445 |
| 3 x 25/16 RM/RE | 910,0 | 25 | 1.513,0 | 133 | 106 |
| 3 x 35/16 SM/RE | 1.210,0 | 27 | 1.804,0 | 159 | 129 |
| 3 x 50/25 SM/RM | 1.750,0 | 31 | 2.349,0 | 188 | 157 |
| 3 x 70/ 35 SM | 2.450,0 | 35 | 3.117,0 | 232 | 199 |
| 3 x 95/ 50 SM | 3.350,0 | 39 | 4.167,0 | 280 | 246 |
| 3 x 120/ 70 SM | 4.300,0 | 44 | 5.190,0 | 318 | 285 |
| 3 x 150/ 70 SM | 5.200,0 | 47 | 6.161,0 | 359 | 326 |
| 3 x 185/ 95 SM | 6.500,0 | 53 | 7.673,0 | 406 | 374 |
| 3 x 240/120 SM | 8.400,0 | 59 | 9.850,0 | 473 | 445 |
| 3 x 300/150 SM | 10.500,0 | 65 | 11.900,0 | 535 | 511 |
| 4 x 1,5 RE | 60,0 | 14 | 278,0 | 27 | 20 |
| 4 x 2,5 RE | 100,0 | 15 | 340,0 | 36 | 25 |
| 4 x 4 RE | 160,0 | 17 | 460,0 | 47 | 34 |
| 4 x 6 RE | 240,0 | 18 | 570,0 | 59 | 43 |
| 4 x 10 RE | 400,0 | 20 | 775,0 | 79 | 59 |
| 4 x 10 RM | 400,0 | 20 | 775,0 | 79 | 59 |
| 4 x 16 RE | 640,0 | 22 | 1.072,0 | 102 | 79 |
| 4 x 16 RM | 640,0 | 22 | 1.072,0 | 102 | 79 |
| 4 x 25 RM | 1.000,0 | 27 | 1.632,0 | 133 | 106 |
| 4 x 35 SM | 1.400,0 | 27 | 1.959,0 | 159 | 129 |
| 4 x 50 SM | 2.000,0 | 32 | 2.595,0 | 188 | 157 |
| 4 x 70 SM | 2.800,0 | 36 | 3.488,0 | 232 | 199 |
| 4 x 95 SM | 3.800,0 | 41 | 4.637,0 | 280 | 246 |
| 4 x 120 SM | 4.800,0 | 43 | 5.689,0 | 318 | 285 |
| 4 x 150 SM | 6.000,0 | 49 | 6.973,0 | 359 | 326 |
| 4 x 185 SM | 7.400,0 | 54 | 8.663,0 | 406 | 374 |
| 4 x 240 SM | 9.600,0 | 60 | 11.140,0 | 473 | 445 |
| 5 x 1,5 RE | 75,0 | 15 | 317,0 | 0 | 0 |
| 5 x 2,5 RE | 125,0 | 16 | 391,0 | 0 | 0 |
| 5 x 4 RE | 200,0 | 18 | 537,0 | 0 | 0 |
| 5 x 6 RE | 300,0 | 19 | 672,0 | 0 | 0 |
| 5 x 10 RE | 500,0 | 21 | 921,0 | 0 | 0 |
| 5 x 10 RM | 500,0 | 21 | 921,0 | 0 | 0 |
| 5 x 16 RE | 800,0 | 24 | 1.294,0 | 0 | 0 |
| 5 x 16 RM | 800,0 | 24 | 1.294,0 | 0 | 0 |
| 5 x 25 RM | 1.250,0 | 29 | 2.004,0 | 0 | 0 |
| 5 x 35 RM | 1.750,0 | 30 | 2.575,0 | 0 | 0 |
| 5 x 50 RM | 2.500,0 | 36 | 3.193,0 | 0 | 0 |
| 5 x 70 RM | 3.500,0 | 40 | 4.722,0 | 0 | 0 |
| 5 x 95 RM | 4.750,0 | 46 | 6.393,0 | 0 | 0 |
| 5 x 120 RM | 6.000,0 | 50 | 7.095,0 | 0 | 0 |
| 5 x 150 RM | 7.500,0 | 59 | 8.240,0 | 0 | 0 |
| 7 x 1,5 RE | 105,0 | 16 | 376,0 | 0 | 0 |
| 10 x 1,5 RE | 150,0 | 19 | 495,0 | 0 | 0 |
| 12 x 1,5 RE | 180,0 | 18 | 440,0 | 0 | 0 |
| 14 x 1,5 RE | 210,0 | 20 | 494,0 | 0 | 0 |
| 16 x 1,5 RE | 240,0 | 21 | 600,0 | 0 | 0 |
| 19 x 1,5 RE | 285,0 | 22 | 614,0 | 0 | 0 |
| 21 x 1,5 RE | 315,0 | 23 | 700,0 | 0 | 0 |
| 24 x 1,5 RE | 360,0 | 24 | 769,0 | 0 | 0 |
| 30 x 1,5 RE | 450,0 | 26 | 918,0 | 0 | 0 |
| 40 x 1,5 RE | 600,0 | 29 | 1.250,0 | 0 | 0 |
| 7 x 2,5 RE | 175,0 | 17 | 472,0 | 0 | 0 |
| 10 x 2,5 RE | 250,0 | 20 | 530,0 | 0 | 0 |
| 12 x 2,5 RE | 300,0 | 21 | 578,0 | 0 | 0 |
| 14 x 2,5 RE | 350,0 | 22 | 680,0 | 0 | 0 |
| 16 x 2,5 RE | 400,0 | 23 | 750,0 | 0 | 0 |
| 19 x 2,5 RE | 475,0 | 24 | 870,0 | 0 | 0 |
| 21 x 2,5 RE | 525,0 | 25 | 900,0 | 0 | 0 |
| 24 x 2,5 RE | 600,0 | 26 | 1.035,0 | 0 | 0 |
| 30 x 2,5 RE | 750,0 | 28 | 1.300,0 | 0 | 0 |
| 40 x 2,5 RE | 1.000,0 | 31 | 1.700,0 | 0 | 0 |
| 7 x 4 RE | 280,0 | 18 | 600,0 | 0 | 0 |
| 7 x 6 RE | 420,0 | 20 | 760,0 | 0 | 0 |
| 7 x 10 RE | 700,0 | 22 | 1.080,0 | 0 | 0 |

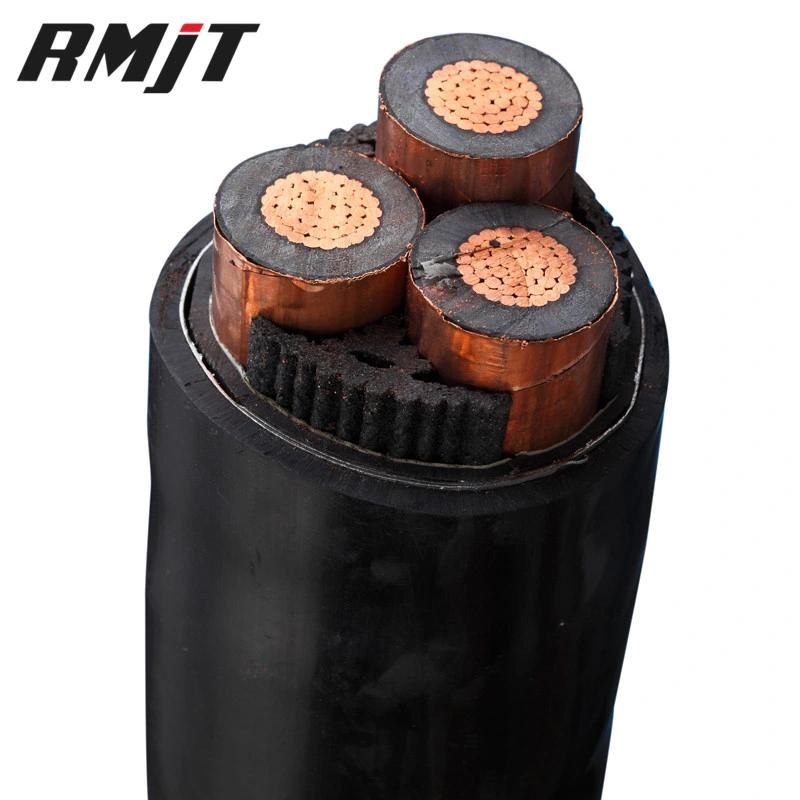

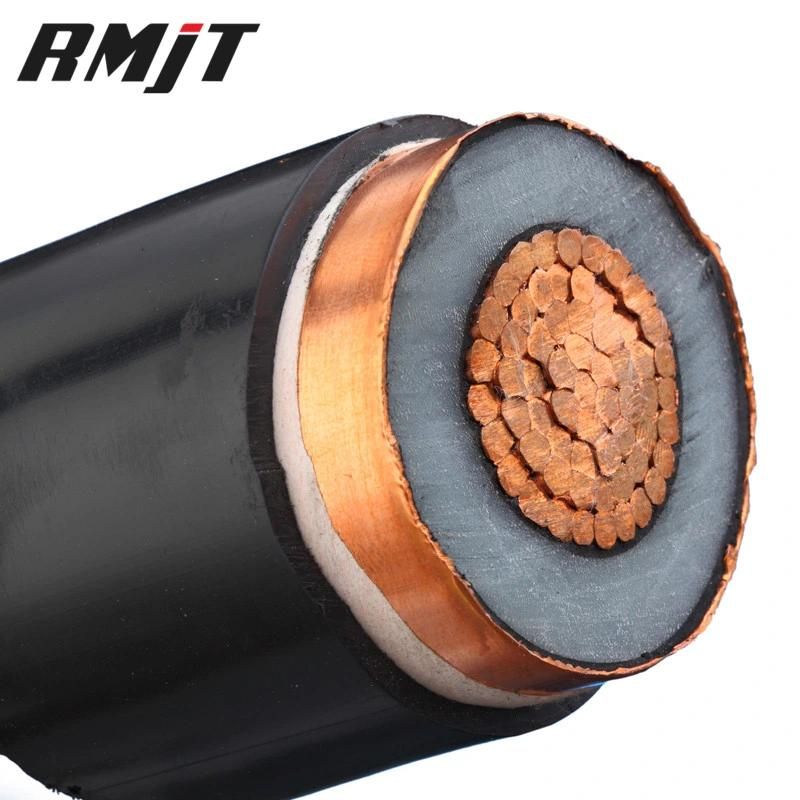

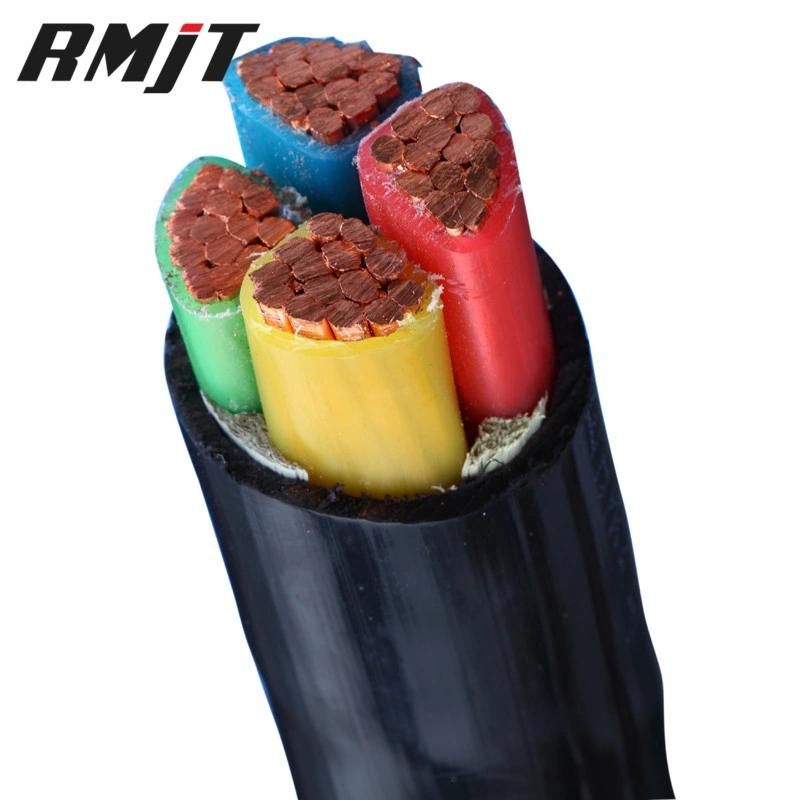

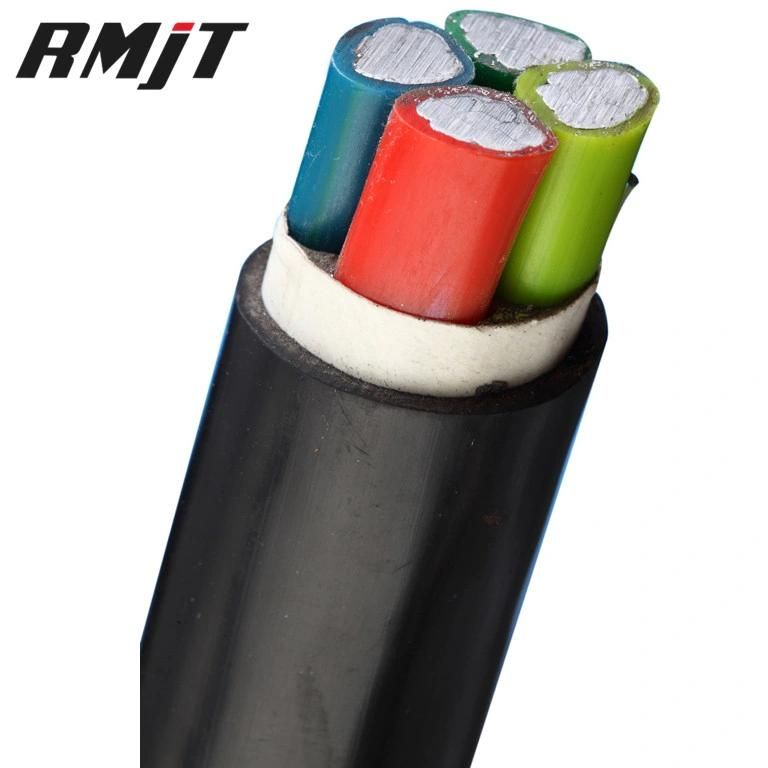

Product Pictures:
Packing and Delivery:

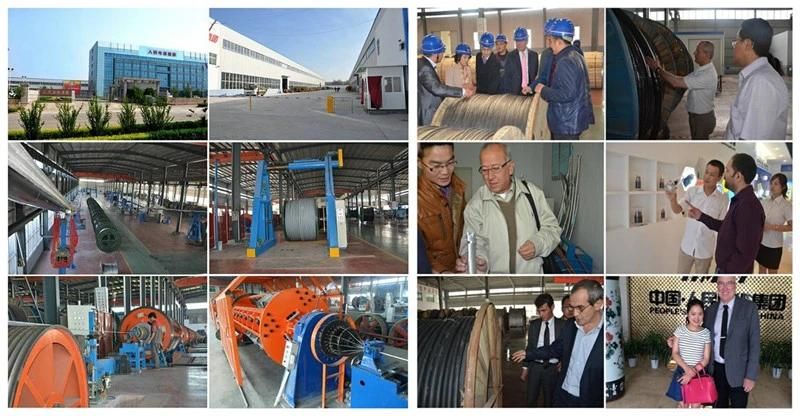

Our Company:
