• Model NO.：solar cable
• Rated Voltage：1500V
• Certificate：TUV
• Sheath：Xlpo
• Insulation：Xlpo
• Conductor：Flexible Copper
• Manufacturer：Ht Cable
• Transport Package：Standard Export Drums
• Specification：1.5-35mm2
• Trademark：HT Cables
• Origin：China
• HS Code：8544492100
• Production Capacity：1000000meter Per Month

Basic Info.

Model NO. solar cable Rated Voltage 1500V Certificate TUV Sheath Xlpo Insulation Xlpo Conductor Flexible Copper Manufacturer Ht Cable Transport Package Standard Export Drums Specification 1.5-35mm2 Trademark HT Cables Origin China HS Code 8544492100 Production Capacity 1000000meter Per Month

Product Description

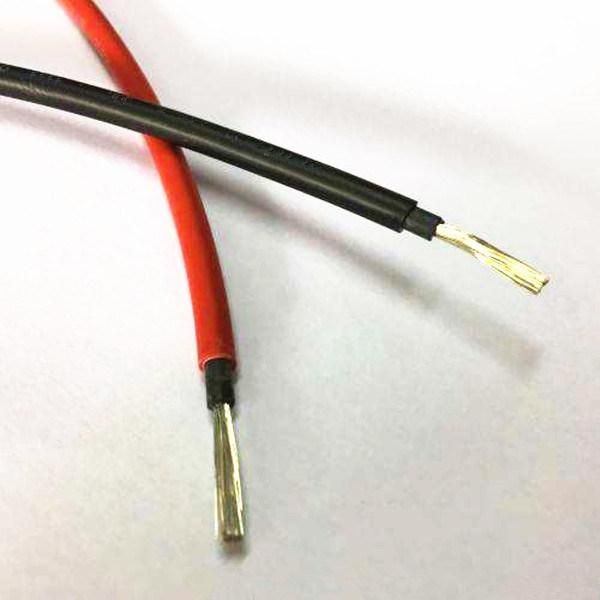

pv solar dc cable 4mm 6mm 10mm 16mm solar panel wire with tuv for power systems

TOP TEN CABLE MANUFACTURER IN CHINA

LARGEST CABLE MANUFACTUER IN NORTH CHINA

ANNUAL EXPORT VOLUME EXCEED 200MILLION USD

WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS

WITH TUV TYPE TESTING REPORT

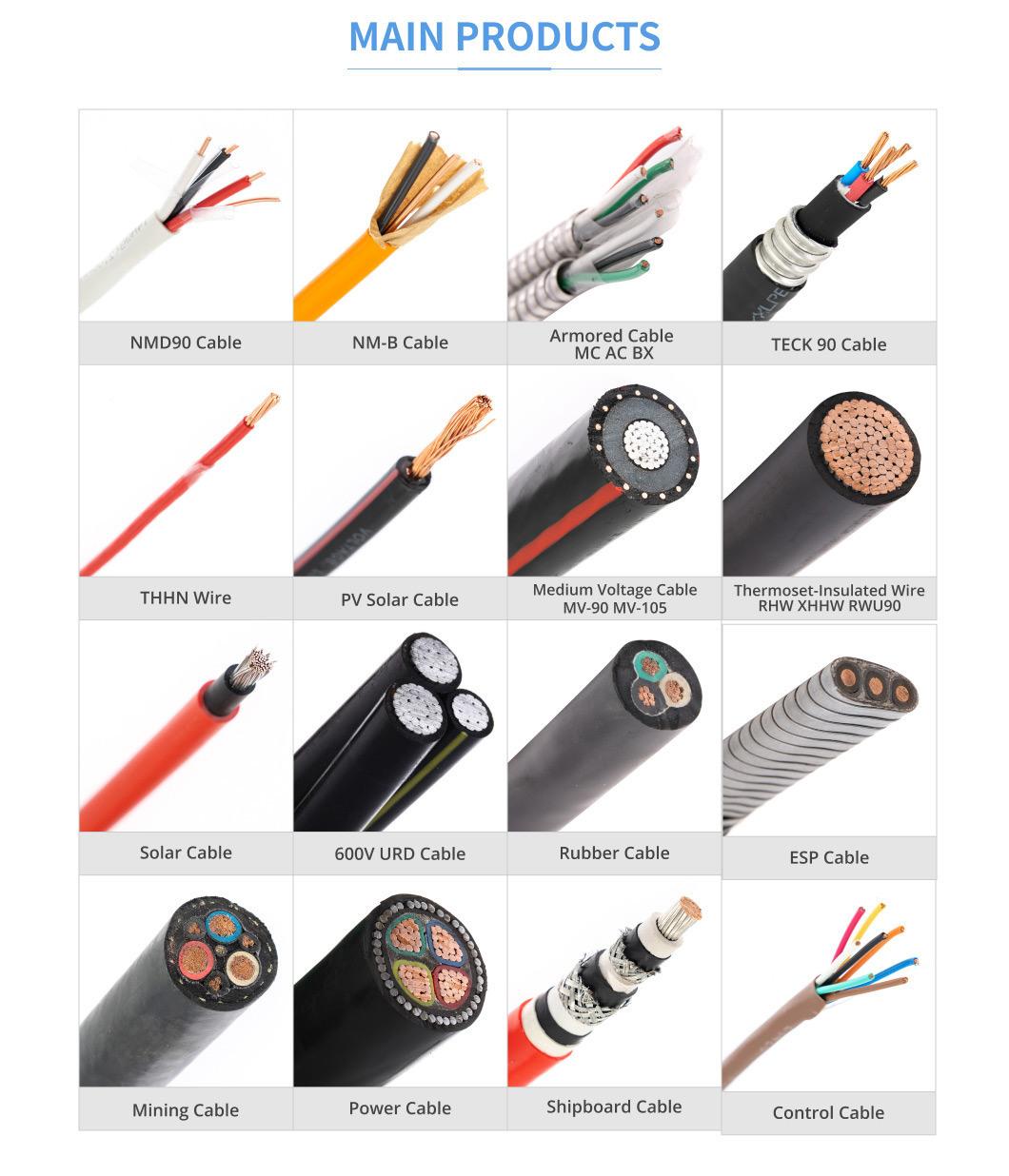

WIDE PRODUCTS RANGE

ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS

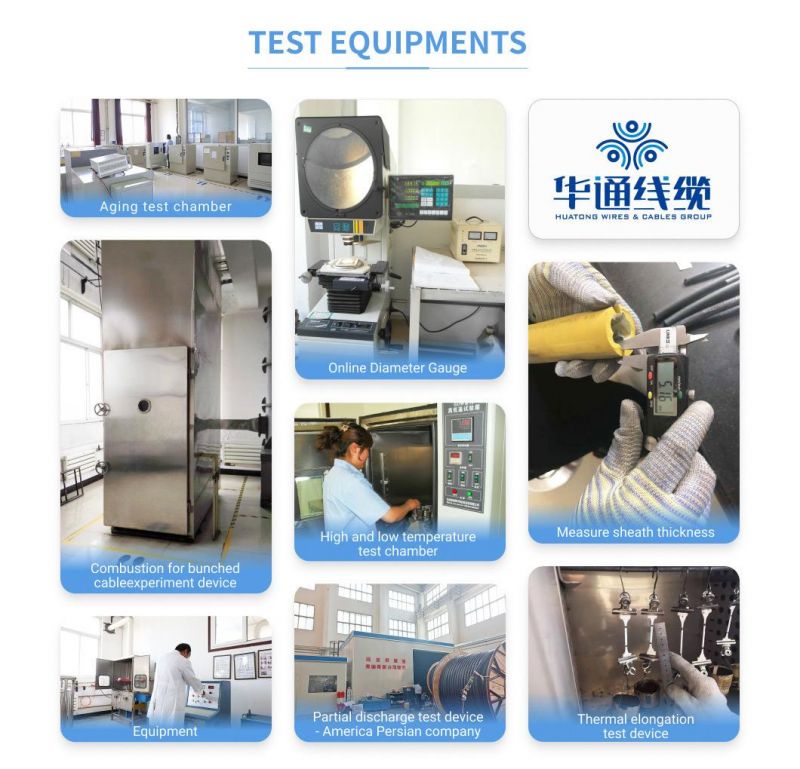

CNAS APPROVAL LABROTARY

Application

For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter Gable and flat roof photovoltaic systems Photovoltaic plants and solar parks Flexible or building-integrated PV systems including connecting photovoltaic power supply systems & can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions. from - 40 deg.C to 120 deg.C maximum and Ozone & UV Resistant and full protection against Ultra Violet rays.

Product Features

Weather/UV-resistant acc. to HD 605/A1
Ozone-resistant according to EN 50396
Halogen-free and flame-retardant
Good notch and abrasion resistance
XLS-R = X-Linked Standard - Reduced Proven electron beam cross-linked quality
Cold Flexibility
Long Life about > 25 years
Suitable to common connector type

Standard to follow

EN50618 Standard

Conductor
Tinned fine copper strands, according to IEC 60228, class 5
Insulation
Cross Linked polyolefin-copolymer Double Insulated Temperature resistant and halogen free , Flame Retardant, Low Smoke.
Color of Insulation
Black, red, blue
Outer Sheath
Flame retardant and halogen free Co-Polymer, electron beam cross linked, Weather proof & UV Resistant. Color - Black

Electrical Properties

Nominal voltage U0/U acc. VDE AC 600/1000 V - 720/1200 V & DC 900/1800 V
Max. permitted DC voltage 1.8 kV (Conductor/Conductor. non earthed system
Working voltage : According to. TÜV 2 PfG 1169 DC 1000 V
Test voltage AC 6,5 kV for 5 min & DC 15 KV.
Voltage resistance tests according to EN 50395
Insulation Resistance - 1000 m-OHM / km minimum

Specification


SIZE cross-sectional area in	Number of Strands and diameter	Nominal Insulation Thickness	Nominal Sheath Thickness	Max. Conductor D.C Resistance at 20 °C	Approx. Overall Diameter of cable (in mm)	Weight
mm2	n/mm	mm	mm	ohm/(km)	mm	Kg/km
1.5	28/0.25	0.75	0.95	13.7	4.60 +/- 0.5	41
2.5	46/0.25	0.75	0.95	8.21	5.00 +/- 0.5	52
4	52/0.3	0.75	0.95	5.09	5.50 +/- 0.5	70
6	78/0.3	0.75	0.95	3.39	6.00 +/- 0.5	91
10	77/0.4	0.75	0.95	1.95	7.20 +/- 0.5	138
16	119/0.4	0.75	0.95	1.24	8.80 +/- 0.5	197
25	189/0.4	1.0	1.05	0.795	10.50 +/- 0.5	307
35	252/0.4	1.0	1.05	0.565	11.50 +/- 0.5	394
