PVC/XLPE Insulated Overhead Aerial Bundle Cable with Aluminium Conductor
People's Cable Group Co., Ltd.- Application：Construction, Overhead, Industrial
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：N,a
- Material Shape：Round Wire
Base Info
- Model NO.：ABC Cable
- Wire Core Material：Aluminum Conductor
- Certification：ISO, CCC
- Model：ABC Cable
- Brand：Rmjt
- Color：Black, Red, Yellow
- Standard：IEC, BS, DIN, ASTM,NFC
- Manufacturer：People′s Cable Group
- Voltage Type：Low Voltage, Medium Voltage
- Transport Package：Wooden Drum, as Request
- Specification：1.5-400mm2
- Trademark：RMJT
- Origin：China
- HS Code：8544492100
- Production Capacity：5000km,Year
Description
Duplex service dropCode Name Phase conductor Bare Neutral Message Nominal Weight ( kg/km ) Allowable Ampacity Size & No.of wires Insulation Thick(mm) Nominal Diameter (mm) Size & No.of wires Rated Strength (kg) XLPE Aluminum ( A ) Bare OD AAC Pekingese 6-Solid 1.14 4.1 6.4 6-7 255 20.8 72.9 78 Collie 6-7 1.14 4.6 6.9 6-7 255 23.8 72.9 78 Cocker 6-7 1.52 4.6 7.7 6-7 255 32.7 72.9 78 Dachshund 4-Solid 1.14 5.2 7.5 6-7 400 26.8 114.6 103 Spaniel 4-7 1.14 5.9 8.2 6-7 400 29.8 116.1 103 Cairn 4-7 1.52 5.9 8.9 6-7 400 40.2 116.1 103 Doberman 2-7 1.14 7.4 9.7 2-7 612 38.7 184.5 136 Airedale 1-19 1.52 8.4 11.5 1-7 - 56.5 233.6 158 Basset 1/0-7 1.52 9.3 12.4 1/0-7 903 64 294.7 182 Malemure 1/0-19 1.52 9.4 12.5 1/0-7 903 64 294.7 182 AAAC Chihuahua 6-Solid 1.14 4.1 6.4 6-7 499 20.8 72.9 78 VIzsla 6-7 1.14 4.6 6.9 6-7 499 23.8 72.9 78 Harrier 4-Solid 1.14 5.2 7.5 4-7 798 26.8 116.1 103 Whippet 4-7 1.14 5.9 8.2 4-7 798 29.8 116.1 103 Schnauzer 2-7 1.14 7.4 9.7 2-7 1270 38.7 184.5 136 Afghan 1/0-7 1.52 9.3 12.4 1/0-7 2023 64 296.1 182 Hocler 1/0-19 1.52 9.4 12.5 1/0-7 2023 64 296.1 182 ACSR Setter 6-Solid 1.14 4.1 6.4 6/6/01 540 20.8 72.9 78 Shepherd 6-7 1.14 4.6 6.9 6/6/01 540 23.8 72.9 78 Retriever 6-7 1.52 4.6 7.7 6/6/01 540 32.7 72.9 78 Eskimo 4-Solid 1.14 5.2 7.5 4/6/01 844 26.8 114.6 103 Terrier 4-7 1.14 5.9 8.2 4/6/01 844 29.8 116.1 103 Yorkshirc 4-7 1.52 5.9 8.9 4/6/01 844 40.2 116.1 103 Chow 2-7 1.14 7.4 9.7 2/6/01 1293 38.7 184.5 136 Labrador 1-19 1.52 8.4 11.5 1/6/01 1610 56.5 233.6 158 Bloodhound 1/0-7 1.52 9.3 12.4 1/0-6/1 1987 64 294.7 182 Bull 1/0-19 1.52 9.4 12.5 1/0-6/1 1987 64 294.7 182
6.Package
7.About US

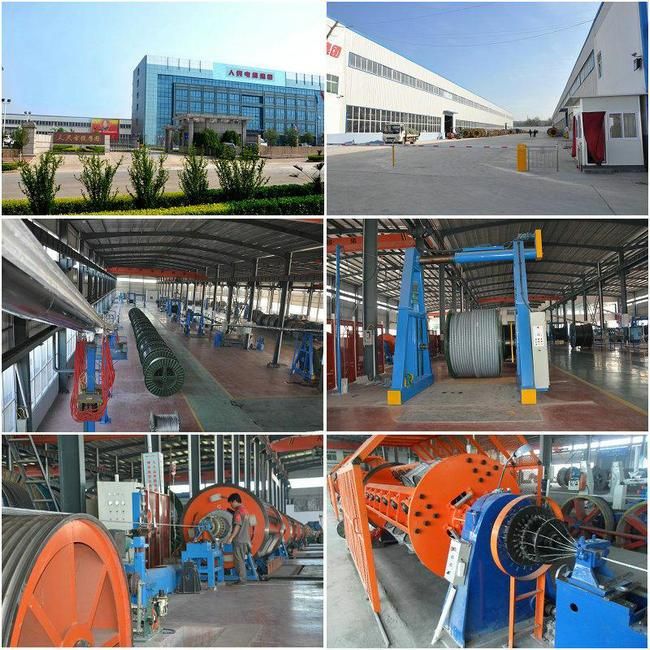

People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone.
Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.Contact Us
Factory Add: No. 13th, Yongding Road, Gongyi, Zhengzhou city, Henan province, China.
Attn: Kathy Wong
Tel:+86 15981975851
Fax:+86-371-55632837
