• Model NO.：PV1-F
• Material Shape：Round Wire
• Range of Application：Photovoltaic Power Station
• Certification：ISO9001, CE, CCC, RoHS
• Brand：Golden Electric,OEM
• Nominal Voltage：600,1000VDC
• Test Voltage：6500V, 50Hz, 5minutes
• Conductor Standard：VDE 0295,IEC 60228, Class5
• Ambient Temperature：25 Years (TUV)
• Fire-Resistance Performance：IEC 60332-1
• Low Fire Load：DIN 51900
• Approvals：TUV 2pfg 1169,08.2007 PV1-F
• Bending Radius：Fixed Installation>4X, Occasionally Moved>5X

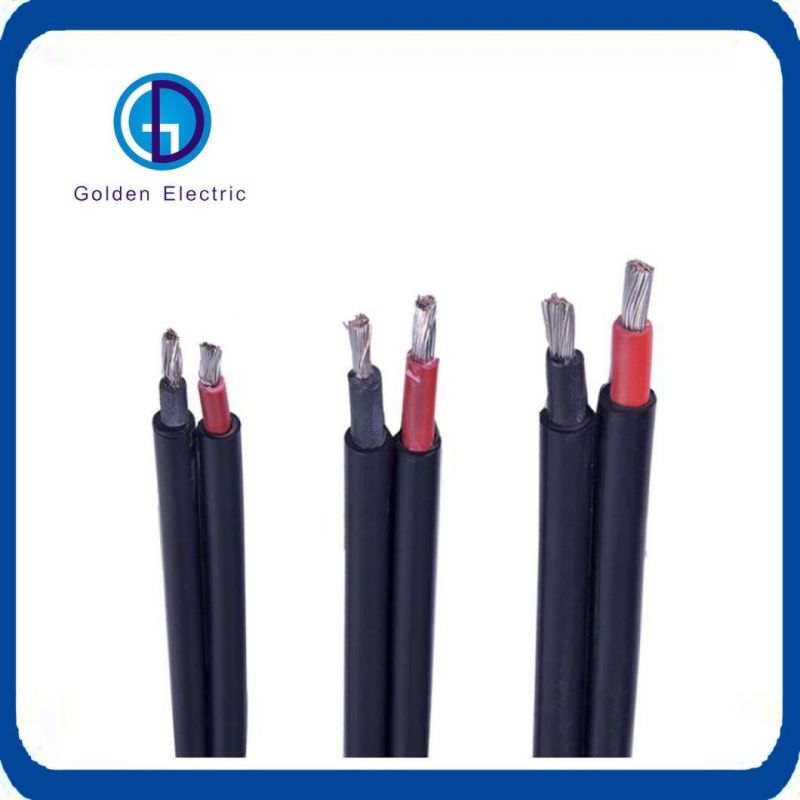

• Number of Cores：Single Core,Twins Core

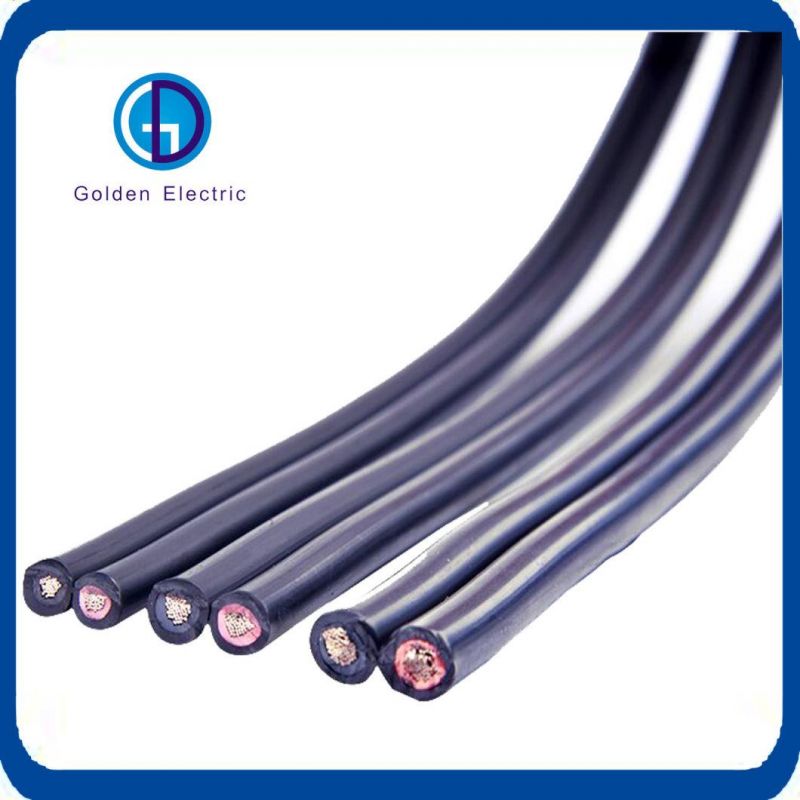

• Item Name：XLPE Insulated PV Solar Electric Power Cable

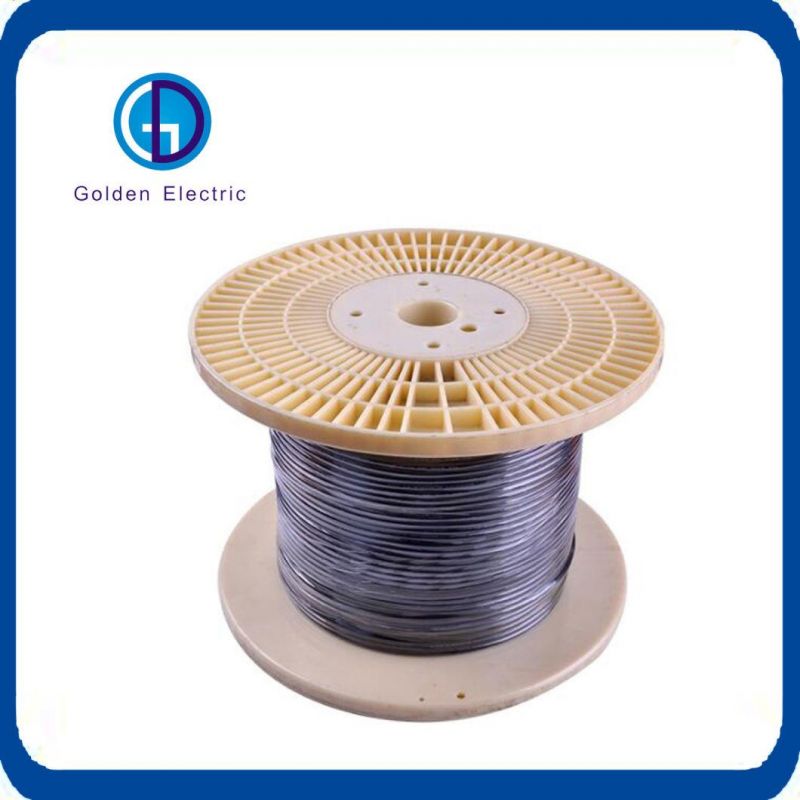

• Transport Package：Plastic Drum+Wooden Box,Wooden Pallet; Poly Bag
• Specification：1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10.0mm2, 16.0mm2
• Trademark：Golden or netural or customer brand
• Origin：China
• HS Code：8544492100
• Production Capacity：50000meters,Week

 Copper wire : 99.999% copper,tinned

 UV resistant Insulation material :  XLPE(XLPO) High voltage and High current  Double walls insulated Temperature range  :   -40°C~+90°C Halogen-free material Color :  Black / Red / Blue

 Flame test according to   :

 DIN EN 50265-2-1 / UL 1571(VW-1)

 Smallest permissible Bending  Radius : 5*D

SizeCross   Section

Conductor

Structure

Outer

Diameter

Max. DC Resistance

at 20ºC

Rated  Voltage

Rated

Current

mm2mmmmΩ/kmVA1x2.5mm22.5mm249xΦ0.255.18.061000/1500301x4.0mm24.0mm256xΦ0.2856.14.971000/1500501x6.0mm26.0mm278xΦ0.36.43.521000/1500701x10mm210mm274xΦ0.47.32.121000/150095





SizeCross   Section

Conductor

Structure

Outer

Diameter

Max. DC Resistance

at 20ºC

Rated Voltage

Rated

Current

mm2mmmmΩ/kmVA2x2.5mm22.5mm249xΦ0.255.1x10.98.061000/1500302x4.0mm24.0mm256xΦ0.2856.1x12.34.971000/1500502x6.0mm26.0mm278xΦ0.36.4x12.93.521000/150070
